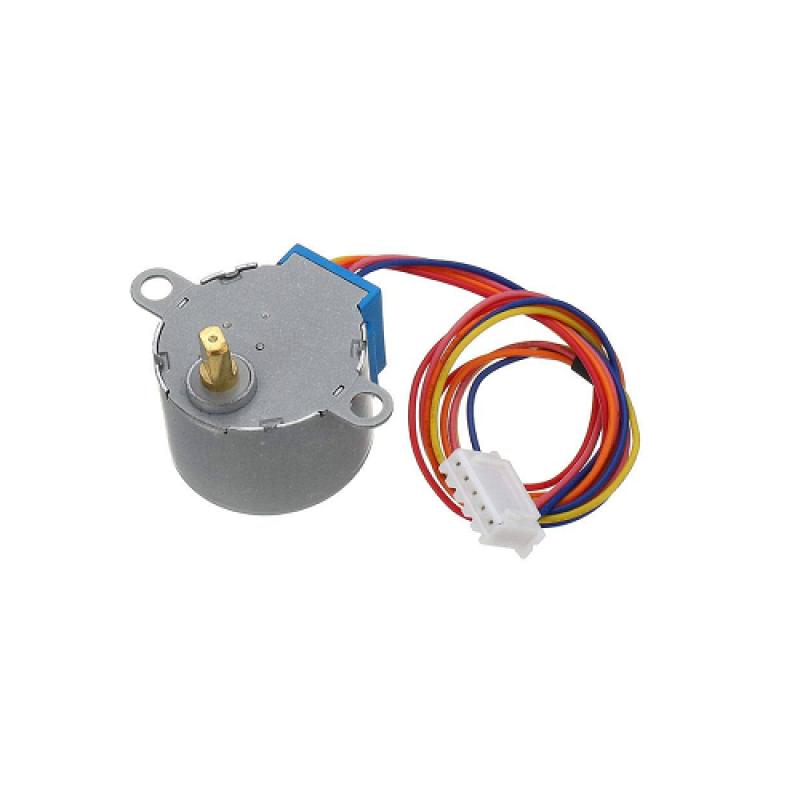

Stepper Motor 28BYJ 48 5V DC
৳140
The Stepper Motor 28BYJ-48 5V DC is a compact and reliable stepper motor ideal for precise control in various robotics and DIY automation projects. This motor operates at a low voltage of 5V, making it perfect for use in small-scale applications, such as home automation, robotic arms, and mechanical systems. Known for its smooth and consistent performance, the 28BYJ-48 is widely used in hobbyist projects and educational setups. Whether you’re working on a robotics project, 3D printer, or automated system, the Stepper Motor 28BYJ-48 5V DC ensures reliable performance with high torque at low speeds. Available now in Bangladesh, it's a cost-effective solution for precise motor control.
The 28BYJ-48 is a small and affordable 5V DC stepper motor, perfect for use with Arduino, Raspberry Pi, and robotics projects. It is designed for accurate and smooth movement, thanks to its unipolar 4-phase structure and built-in 64:1 gear reduction system, which provides high torque at low speeds. With around 4096 steps per full rotation, it offers fine control for tasks like automated systems, pan-tilt cameras, smart gadgets, and DIY electronics. Commonly used in home automation and embedded systems, the 28BYJ-48 combines good performance with compact size and low cost. It is often used with the ULN2003 driver board for easy and reliable control.
Key Features
- Operating Voltage: 5V DC
- Gear Reduction Ratio: Approximately 64 to 1
- Step Angle: 5.625 degrees per step, reduced to approximately 0.088 degrees per step after gearing
- Four-phase unipolar stepper motor
- Compatible with ULN2003 driver board
- Low noise and smooth operation
- Compact and lightweight design
Technical Specifications
Feature | Specification | |||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Operating Voltage | 5V DC | |||||||||||||||||||||||||||||
Current Consumption | Maximum 240 mA | |||||||||||||||||||||||||||||
Number of Phases | 4 | |||||||||||||||||||||||||||||
Step Angle (internal) | 5.625 degrees | |||||||||||||||||||||||||||||
Gear Reduction Ratio | 64 to 1 | |||||||||||||||||||||||||||||
Total Steps per Revolution | Approximately 4096 steps | |||||||||||||||||||||||||||||
Coil Resistance | Approximately 50 ohms | |||||||||||||||||||||||||||||
Shaft Type | Flat or D-shaped | |||||||||||||||||||||||||||||
Motor Diameter | 28 mm | |||||||||||||||||||||||||||||
Cable Length | 254 mm | |||||||||||||||||||||||||||||
Application
- Embedded electronics and microcontroller projects
- Robotic arms, wheels, and positioning mechanisms
- Pan and tilt camera modules
- 3D printers and small CNC systems
Packaging Details
- 1 × Stepper Motor 28BYJ48 5V DC
Stepper Motor 28BYJ48 5V DC – Frequently Asked Questions
What is the operating voltage of the 28BYJ-48 stepper motor?
The motor operates at 5V DC, suitable for most microcontroller projects.
The motor operates at 5V DC, suitable for most microcontroller projects.
How many steps are there in one full revolution of the motor?
It has approximately 4096 steps per full rotation due to the internal gear reduction.
It has approximately 4096 steps per full rotation due to the internal gear reduction.
What is the gear reduction ratio?
The gear reduction ratio is 64:1, which allows for high torque and fine control.
The gear reduction ratio is 64:1, which allows for high torque and fine control.
Which driver board is recommended for this motor?
The ULN2003 driver board is commonly used for easy interfacing and safe control.
The ULN2003 driver board is commonly used for easy interfacing and safe control.
Is the 28BYJ-48 compatible with Arduino and Raspberry Pi?
Yes, it works well with Arduino, Raspberry Pi, and similar development boards.
Yes, it works well with Arduino, Raspberry Pi, and similar development boards.
What type of motor is the 28BYJ-48?
It is a four-phase unipolar stepper motor with a flat or D-shaped shaft.
It is a four-phase unipolar stepper motor with a flat or D-shaped shaft.
Can it be used in robotics and automation projects?
Yes, it's ideal for robotic arms, pan-tilt systems, home automation, and other embedded applications.
Yes, it's ideal for robotic arms, pan-tilt systems, home automation, and other embedded applications.
What is the coil resistance of this motor?
The coil resistance is approximately 50 ohms.
The coil resistance is approximately 50 ohms.
Does the motor operate quietly?
Yes, it features low noise and smooth movement, making it suitable for indoor or educational use.
Yes, it features low noise and smooth movement, making it suitable for indoor or educational use.
What are the dimensions and cable length of the motor?
The motor diameter is around 28 mm and the cable length is approximately 254 mm
The motor diameter is around 28 mm and the cable length is approximately 254 mm
