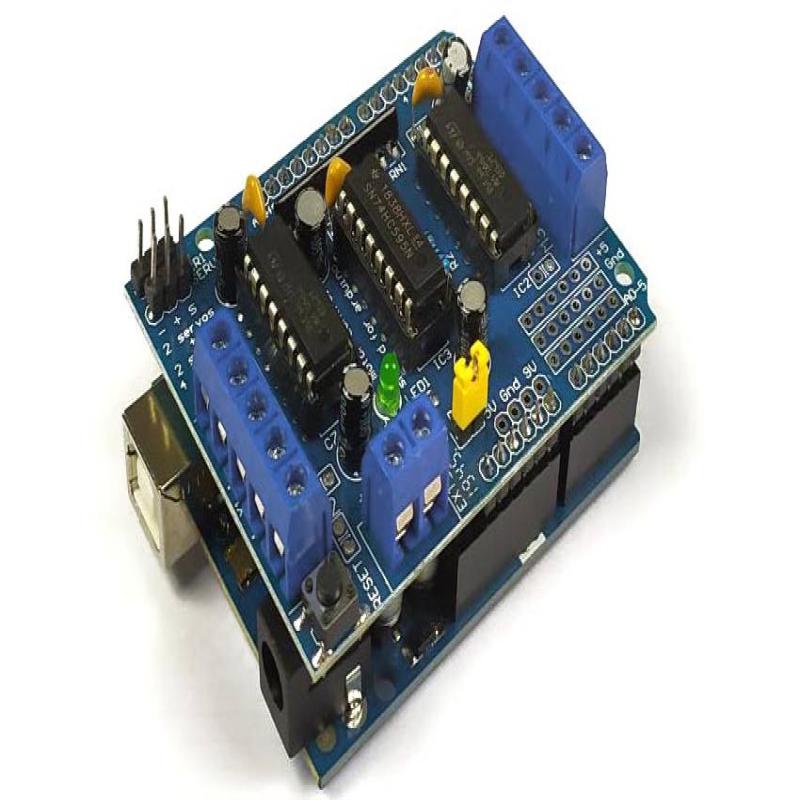

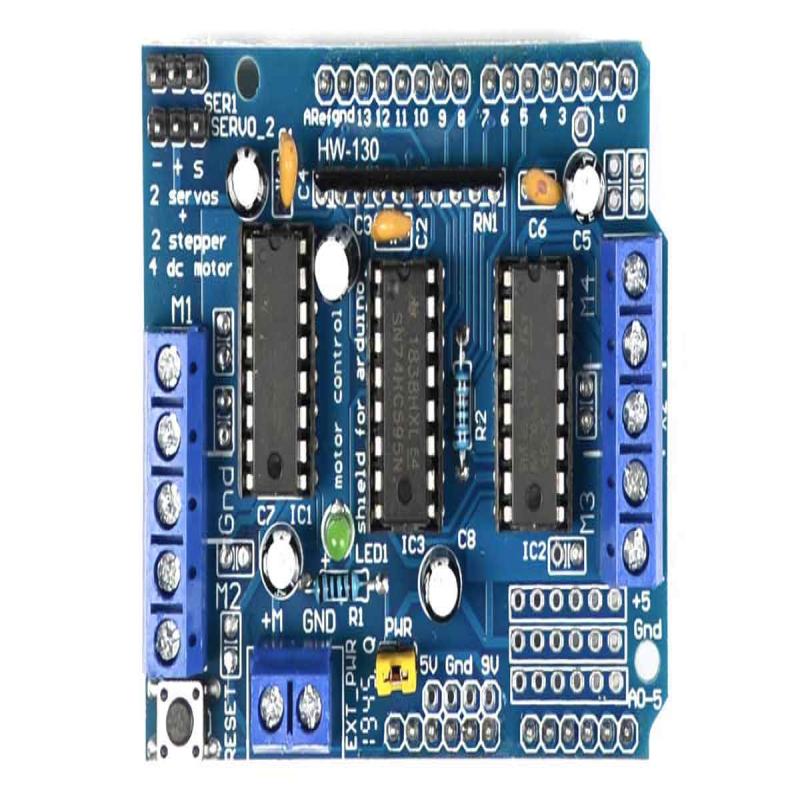

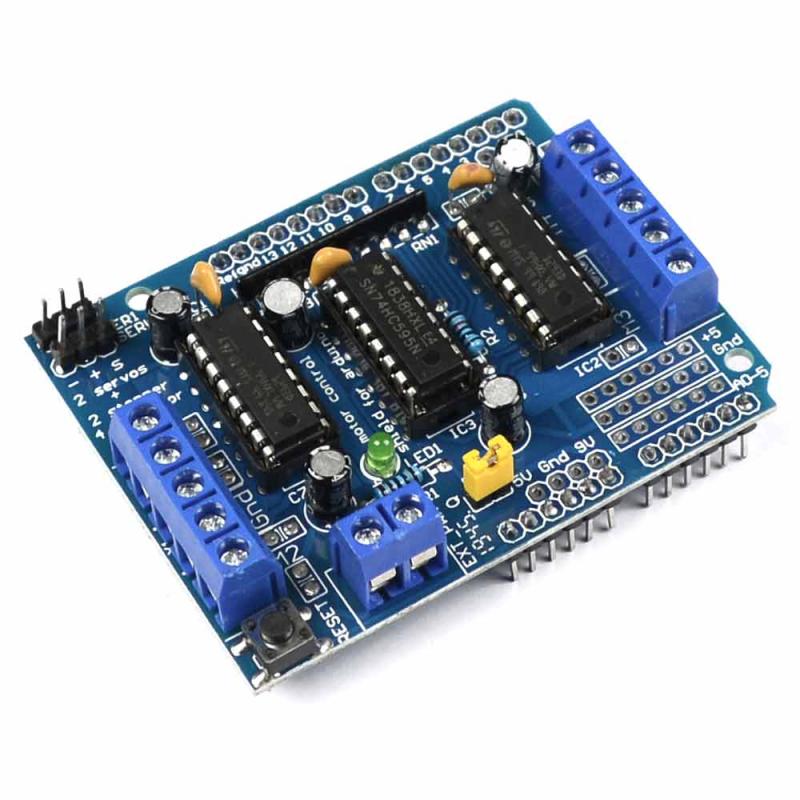

L293D DC Motor Driver Shield
৳220
The L293D DC Motor Driver Shield is an essential component for controlling DC motors in your Arduino projects in Bangladesh. This motor driver shield makes it easy to interface DC motors with your Arduino board, enabling smooth motor control for applications like robotics, automation, and DIY electronics. With the L293D chip, you can control the speed and direction of two DC motors simultaneously, and its robust design ensures reliable performance in a wide range of projects. The shield is easy to install and is fully compatible with Arduino boards, making it the perfect addition to your toolkit for powering up motors in any creative project, from robots to automated systems.
The Arduino-compatible Multipurpose Motor Driver Shield can drive DC motors, stepper motors, and servos, making it ideal for robotics and automation projects. It is a clone of the popular Adafruit Motor Shield, ensuring full compatibility with existing Adafruit libraries and tutorials for easy integration and use.
Arduino library can be downloaded from Documents section.
- 2 interface for 5V Servo connected to the for Arduino's high-resolution dedicated timer - no jitter.
- Can drive 4 DC motors or 2 stepper motors or 2 Servo.
- Up to 4 bi-directional DC motors with individual 8-bit speed selection.
- Up to 2 stepper motors (unipolar or bipolar) with single coil, double coil or interleaved stepping.
- 4 H-Bridges: per bridge provides 0.6A (1.2A peak current) with thermal protection, can run motors on 4.5V to 36V DC.
- Pull down resistors keep motors disabled during power-up.
- 2 external terminal power interface, for seperate logic/motor supplies.
- Compatible with Arduino UNO, Mega, Diecimila & Duemilanove.
- Reset button.
- Size:70*55mm
- Arduino Library & Codes
