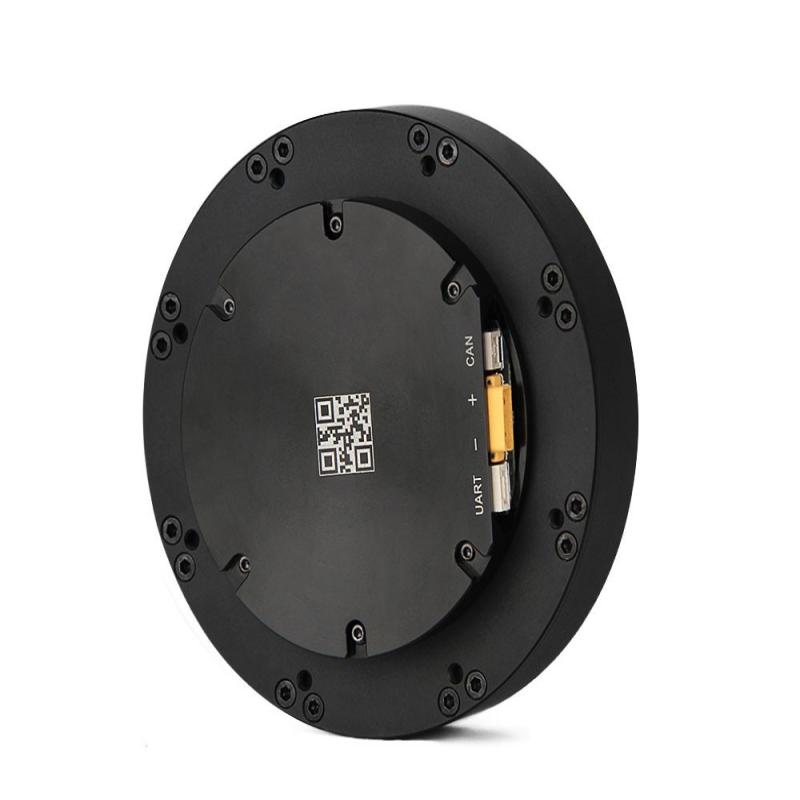

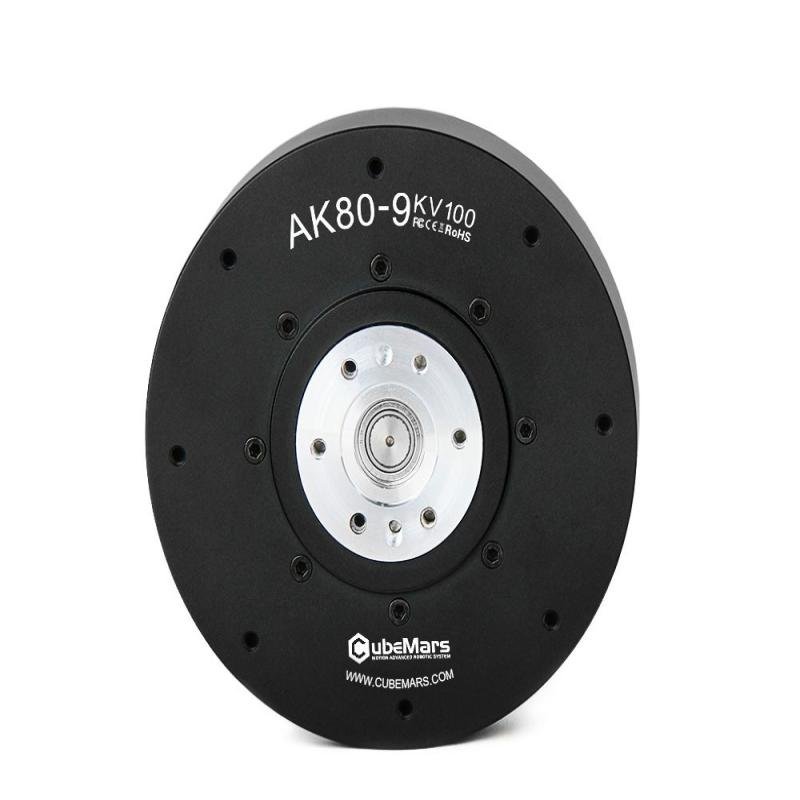

AK Series Dynamical Modular AK80-9 Motor
৳71988
The AK Series Dynamical Modular AK80-9 Motor is a high-performance robotic actuator designed for applications requiring precise control and high torque. Manufactured by CubeMars, this motor is suitable for use in exoskeletons, robotic arms, and quadruped robots.
Key Specifications
Operating Voltage: 48V
Rated Torque: 9 Nm
Peak Torque: 22 Nm
Rated Speed: 390 RPM
Reduction Ratio: 9:1
Weight: Approximately 485g
Dimensions: 98 mm (diameter) × 38.5 mm (length)
Interface Options: Supports both Servo and MIT modes
Control Interfaces: CAN and UART
Encoder: Integrated encoder for precise feedback
Driver Board: Available with or without an integrated driver board
