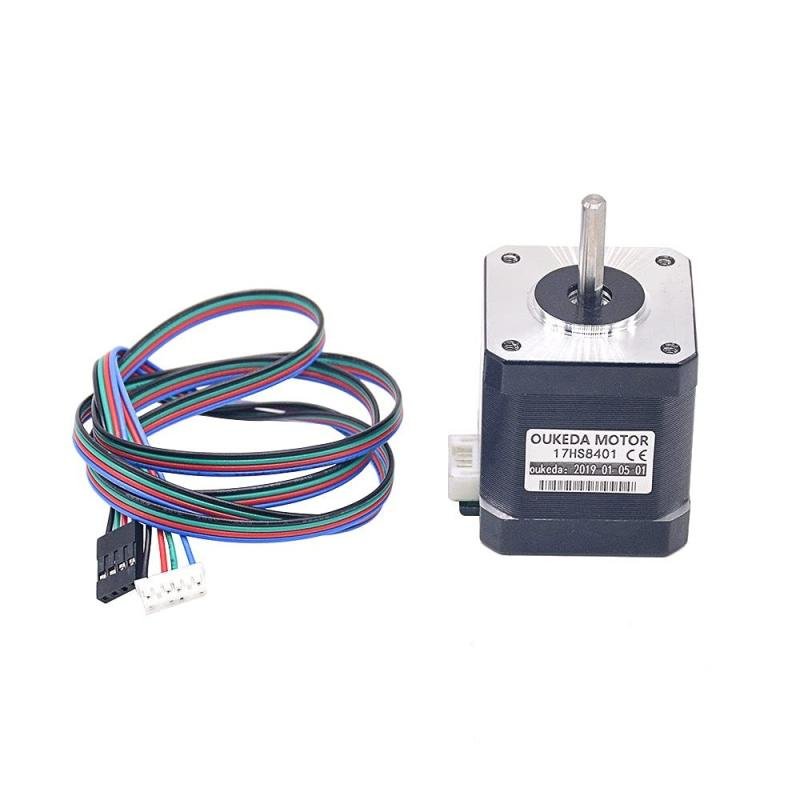

Nema 17 Stepper Motor 17HS8401 48mm Length 1.5A High Torque 48N.cm CNC 3D Printer Parts
৳1,539
The NEMA 17 17HS8401 is a high-quality stepper motor designed to provide precise and reliable motion control. With a frame size of 42mm x 48mm and a holding torque of 52 N·cm, it's suitable for applications requiring moderate torque and compact dimensions.
Categories:
Electronics Products
/
Motors & Drivers
/
3D Technology
/
Accessories
/
CNC & Laser Cutting
/
Material
Brand:
Made in China
SKU: Available
| Feature | Specification |
|---|---|
| Frame Size | 42 x 48 mm |
| Step Angle | 1.8° (200 steps/rev) |
| Rated Current | 1.8 A |
| Holding Torque | 52 N·cm |
| Shaft Dimensions | 5 mm diameter, 22 mm length |
| Inductance | 4.5 mH |
| Resistance | 1.8 Ω |
| Operating Temperature | -20°C to +50°C |
| Insulation Resistance | 100 MΩ at 500 VDC |
