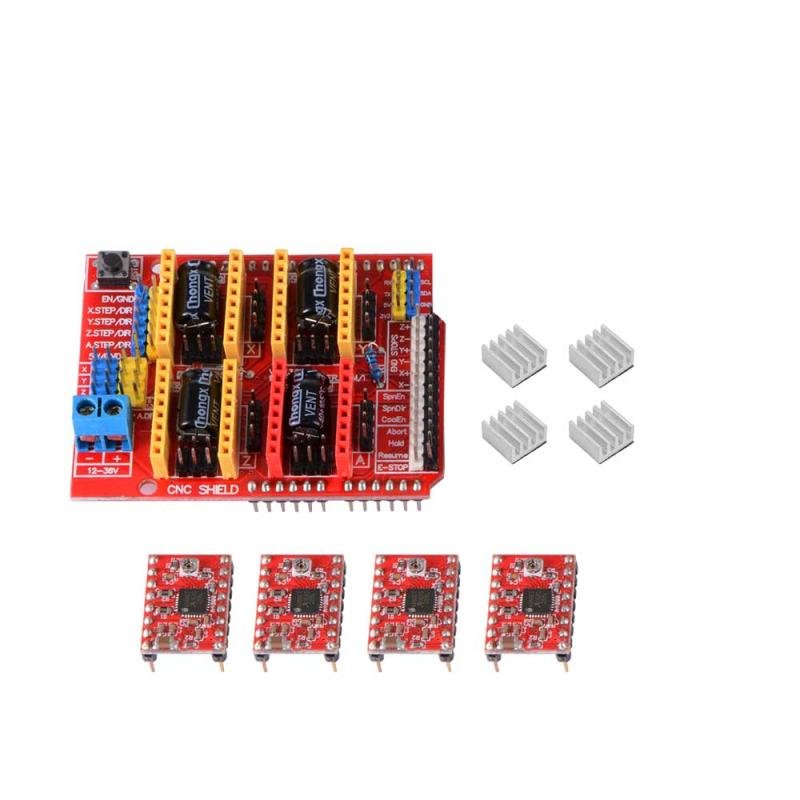

CNC Shield V3.0 + 4 pcs A4988 Driver
৳934
The CNC Shield V3.0 + 4 pcs A4988 Driver is the ultimate solution for controlling stepper motors in your CNC, 3D printing, or robotics projects in Bangladesh. This shield allows for easy integration with Arduino boards, offering full control over up to four stepper motors with the included A4988 drivers. Ideal for CNC machines, laser engravers, or 3D printers, the CNC Shield V3.0 provides precise motor control, allowing you to create highly accurate and intricate designs. Its simple installation and compatibility with various CNC software make it the perfect choice for makers and engineers looking to bring their DIY projects to life.
Categories:
Electronics Products
/
Microcontrollers
/
Motors & Drivers
Brand:
Made in China
SKU: Available
The CNC Shield V3.0 with 4× A4988 Stepper Motor Drivers is an easy-to-use expansion board for Arduino, designed to control CNC machines, 3D printers, and laser engravers. It supports up to 4 stepper motors (X, Y, Z, and A axis), with microstepping control, jumpers for configuration, and compatibility with popular firmware like GRBL. This kit provides a cost-effective and reliable solution for building or upgrading motion-control projects.
CNC Shield V3.0 features:
1.Latest CNC Shield Version 3.0
2.GRBL 0.8c compatible. (Open source firmware that runs on an Arduino UNO that turns G-code commands into stepper signals)
3.4-Axis support (X, Y, Z, A-Can duplicate X,Y,Z or do a full 4th axis with custom firmware using pins D12 and D13)
4.2 x End stops for each axis (6 in total)
5.Spindle enable and direction
6.Coolant enable
7.Uses removable Pololu A4988 compatible stepper drivers. (A4988, DRV8825 and others)
8.Jumpers to set the Micro-Stepping for the stepper drivers. (Some drivers like the DRV8825 can do up to 1/32 micro-stepping )
9.Compact design.
10.Stepper Motors can be connected with 4 pin molex connectors or soldered in place.
11.Runs on 12-36V DC. (At the moment only the Pololu DRV8825 drivers can handle up to 36V so please consider the operation voltage when powering the board.)
CNC Shield V3.0 features:
1.Latest CNC Shield Version 3.0
2.GRBL 0.8c compatible. (Open source firmware that runs on an Arduino UNO that turns G-code commands into stepper signals)
3.4-Axis support (X, Y, Z, A-Can duplicate X,Y,Z or do a full 4th axis with custom firmware using pins D12 and D13)
4.2 x End stops for each axis (6 in total)
5.Spindle enable and direction
6.Coolant enable
7.Uses removable Pololu A4988 compatible stepper drivers. (A4988, DRV8825 and others)
8.Jumpers to set the Micro-Stepping for the stepper drivers. (Some drivers like the DRV8825 can do up to 1/32 micro-stepping )
9.Compact design.
10.Stepper Motors can be connected with 4 pin molex connectors or soldered in place.
11.Runs on 12-36V DC. (At the moment only the Pololu DRV8825 drivers can handle up to 36V so please consider the operation voltage when powering the board.)
1 x CNC V3.0 Shield for Arduino
4 x A4988 Driver Module with Heatsink for Arduino
