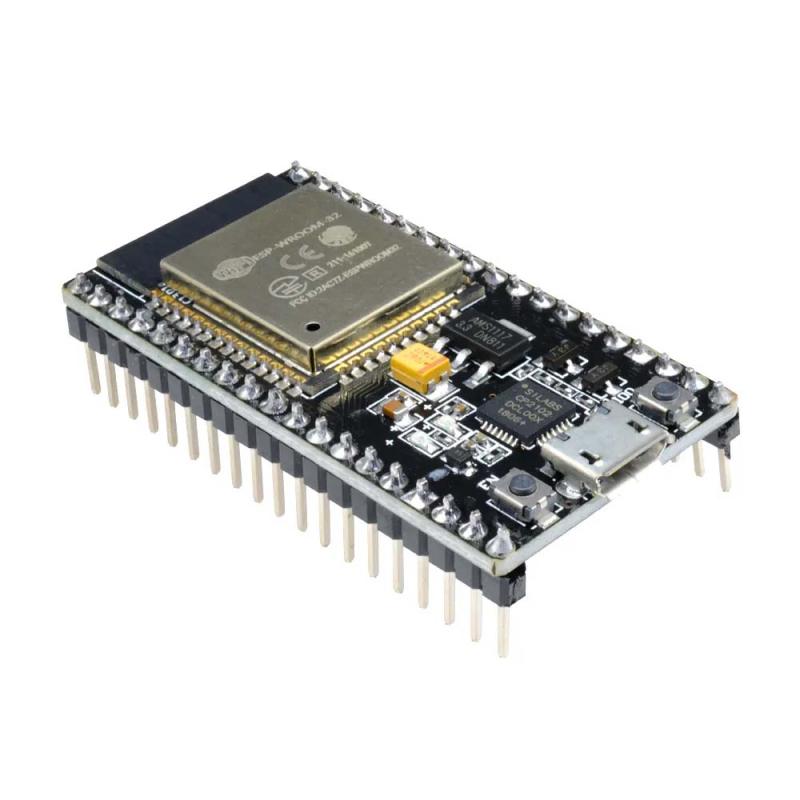

ESP32 Development Board CP2102 Chip 38 Pin
৳520
ESP32 Development Board DEVKIT V1 is the most familiar development board to evaluate the ESP-WROOM-32 module. It is based on the ESP32-Microcontroller with built-in WiFi and Bluetooth features in a single chip.
Categories:
Electronics Products
/
Development Board
/
Microcontrollers
/
Wireless
/
IoT & Home Automation
Brand:
Made in China
SKU: Available
The ESP32 Development Board (38-pin) features the powerful ESP32 dual-core processor with integrated WiFi and Bluetooth, and uses the CP2102 USB-to-serial chip for easy programming. With multiple GPIOs, ADC/DAC, PWM, and communication interfaces, it’s ideal for IoT, automation, and embedded projects.
Features
- Powered via standard Micro USB Connector
- Reset and User/Firmware buttons
- User and Power LED
- Virtual USB port for debugging and firmware upgrade
- Assembled with ESP-32S module
ESP-32S
- CPU and Memory: Xtensa® 32-bit LX6 Dua-core processor, up to 600 DMIPS
- 4 MByte SPI Flash
- 448 KByte ROM
- 520 KByte SRAM
- 16 KByte SRAM in RTC
- On board 3DBi PCB antenna
- Compact size of 25.4mm x 48.3mm
WiFi
- 802.11 b/g/n/e/i
- 802.11 n (2.4 GHz), up to 150 Mbps
- 802.11 e: QoS for wireless multimedia technology.
- WMM-PS, UAPSD
- MPDU and A-MSDU aggregation
- Block ACK
- Fragmentation and Defragmentation
- Automatic Beacon monitoring/scanning
- 802.11 i security features: pre-authentication and TSN
- Wi-Fi Protected Access (WPA)/WPA2/WPA2-Enterprise/Wi-Fi Protected Setup (WPS)
- Infrastructure BSS Station mode/SoftAP mode
- Wi-Fi Direct (P2P), P2P Discovery, P2P Group Owner mode and P2P Power Management
- UMA compliant and certified
- Antenna diversity and selection
Bluetooth
- Compliant with Bluetooth v4.2 BR/EDR and BLE specification
- Class-1, class-2 and class-3 transmitter without external power amplifier
- Enhanced power control
- +10 dBm transmitting power
- NZIF receiver with -98 dBm sensitivity
- Adaptive Frequency Hopping (AFH)
- Standard HCI based on SDIO/SPI/UART ? High speed UART HCI, up to 4 Mbps
- BT 4.2 controller and host stack
- Service Discover Protocol (SDP)
- General Access Profile (GAP)
- Security Manage Protocol (SMP)
- Bluetooth Low Energy (BLE)
- ATT/GATT
- HID
- All GATT-based profile supported
- SPP-Like GATT-based profile
- BLE Beacon
- A2DP/AVRCP/SPP, HSP/HFP, RFCOMM
- CVSD and SBC for audio codec
- Bluetooth Piconet and Scatternet
