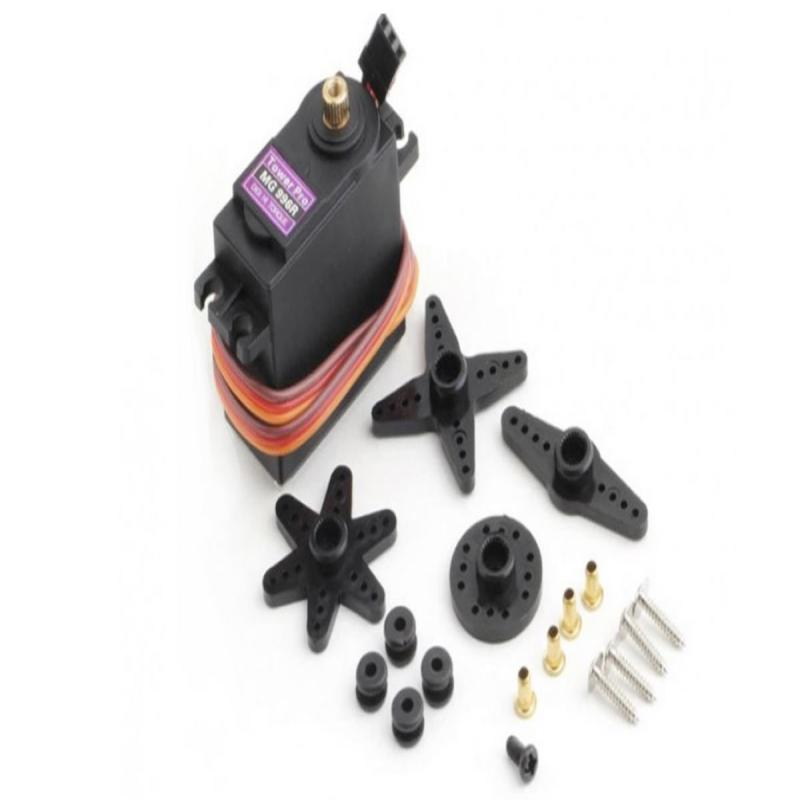

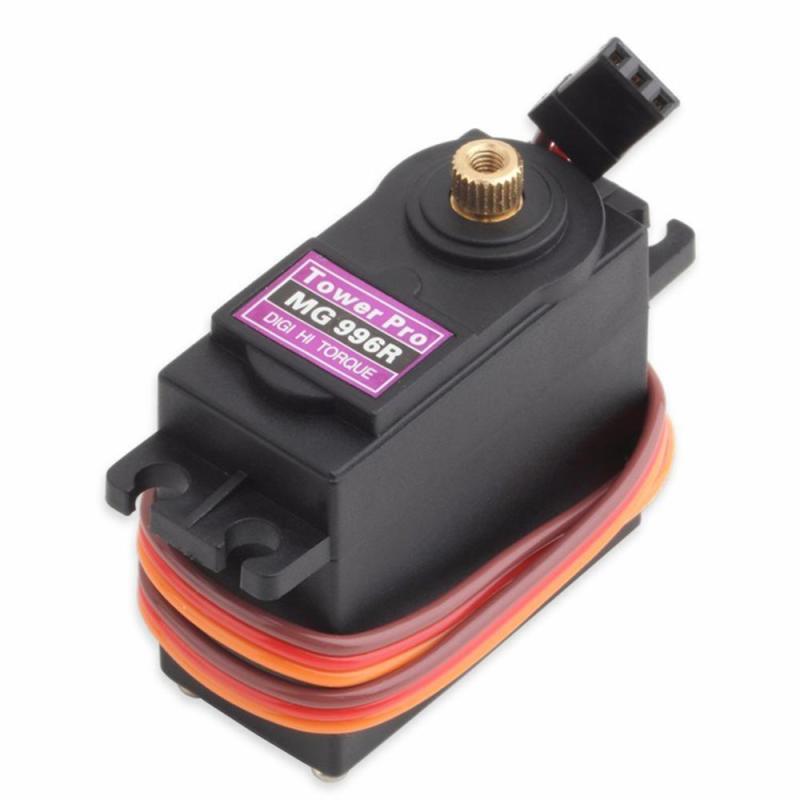

Servo Motor MG996R
৳395
The MG996R Servo Motor is a powerful, high torque servo equipped with durable metal gears, making it ideal for robot arms, RC cars, planes, drones, and heavy-duty robotics projects. With its improved torque performance and stable control, the MG996R can handle larger loads compared to smaller servos like SG90 or MG90S. It operates smoothly with Arduino, Raspberry Pi, and RC receivers, making it a top choice in Bangladesh for students, hobbyists, and robotics competitors who need strength and reliability in motion control.
The MG996R is a high-torque digital servo with all-metal gearing, capable of delivering up to 10kg stalling torque in a compact design. As an upgraded version of the popular MG995, it features:
-
Enhanced accuracy with a redesigned PCB and IC control system
-
Improved shock-proofing for greater durability
-
Upgraded motor and gearing for better centering and reduced deadband
The servo includes a 30 cm wire with a 3-pin ‘S’-type female header connector, compatible with most receivers, including Futaba, JR, GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, Spektrum, and Hitec.
Specifications (Manufacturer):
- Power Supply: 4.8V to 7.2V
- Weight : 55g
- Dimension: 40.7 x 19.7 x 42.9 mm approx
- Operating Speed : 0.17sec / 60 degrees (4.8V no load)
- Operating Speed : 0.14sec / 60 degrees (6.0V no load)
- Stall Torque : 9.4 kg-cm at 4.8V
- Stall Torque : 11 kg-cm at 6V
- Gear Type: All Metal Gears
- Connector Wire: Heavy Duty, 11.81" (300mm)
