RPLiDAR S3 - 40m range, 2D point cloud map, 32KHz sampling, 0.1125° angular resolution, 80000 lux light resistance, IP65, high safety for human eye
৳82000

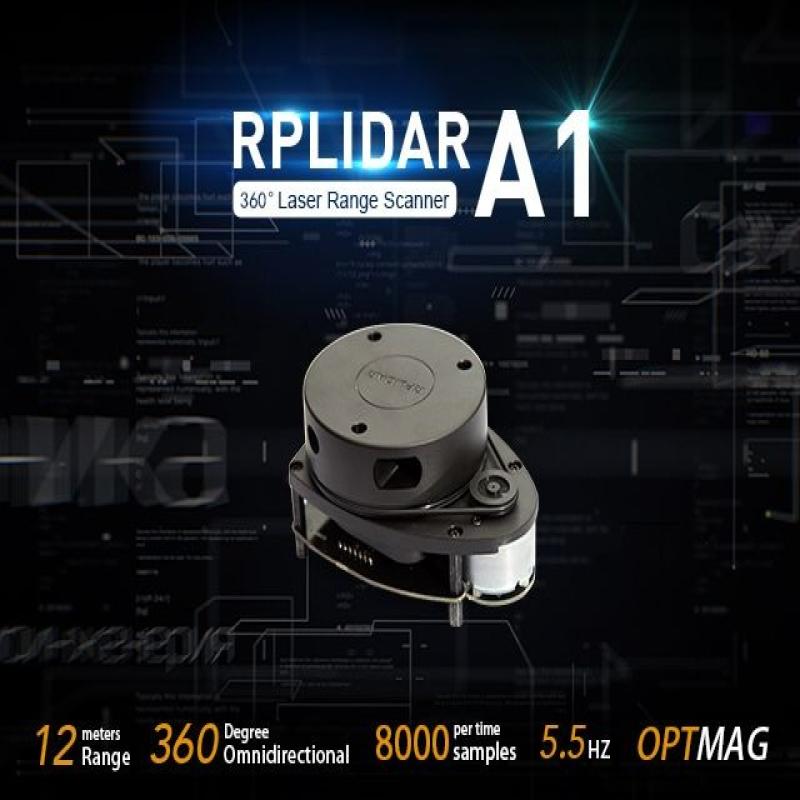

RPLiDAR A1M8 360 Degree Laser Scanner Kit - 12M Range
৳21700

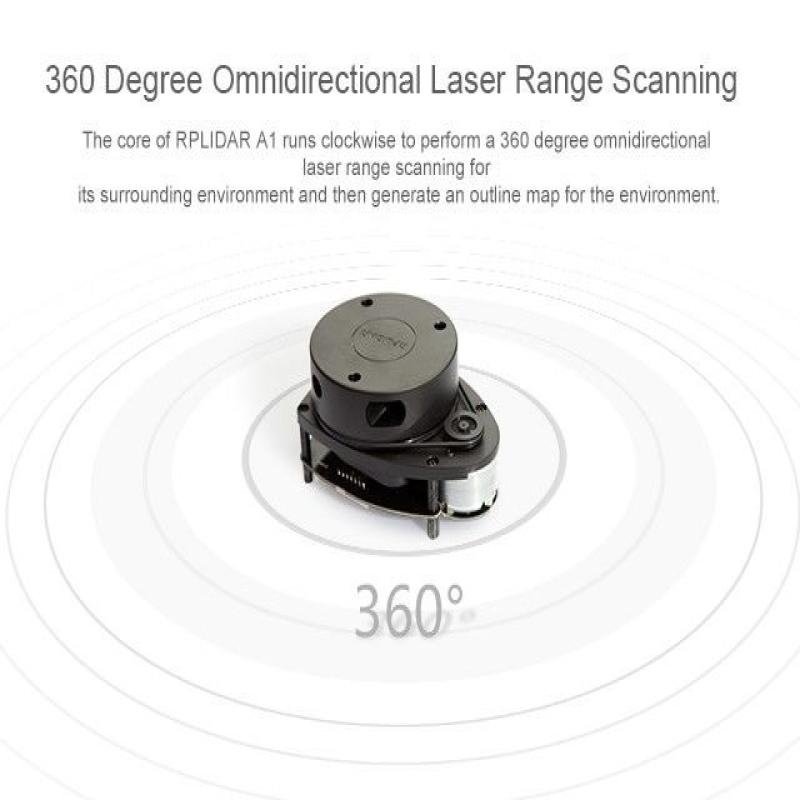

The RPLiDAR A1M8 is a cost-effective, high-performance 2D laser scanner developed by SLAMTEC. It offers 360° omnidirectional scanning with a range of up to 12 meters, making it ideal for applications in robotics, mapping, and environmental modeling. With a scanning frequency of up to 10 Hz and a sampling rate between 4000–8000 Hz, it provides detailed and accurate spatial data. The kit includes the scanner module and essential components for integration, supporting various platforms and development environments.

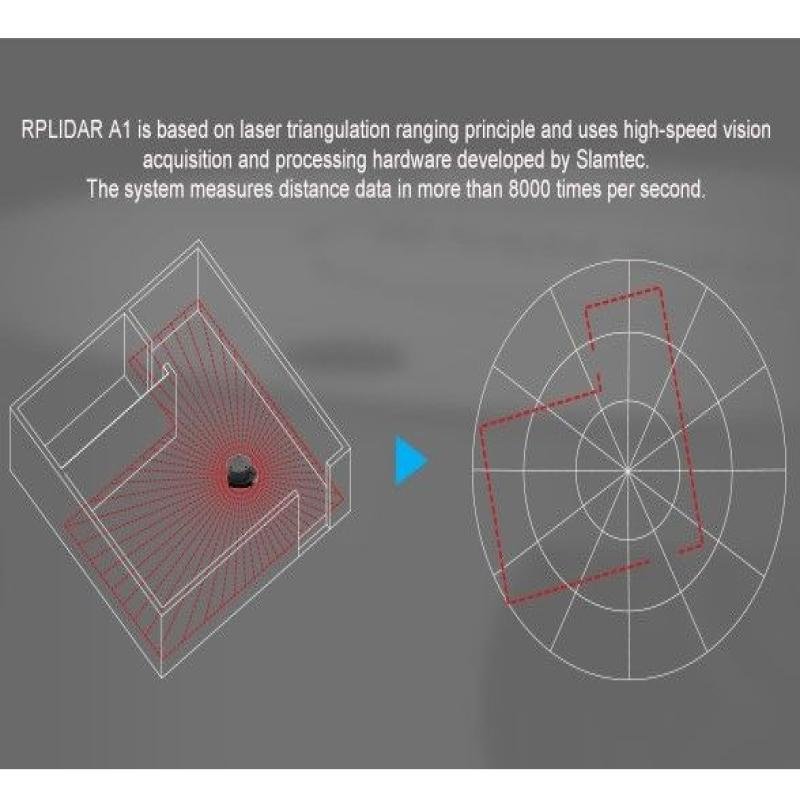

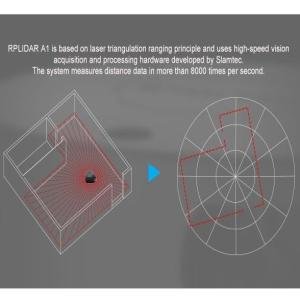

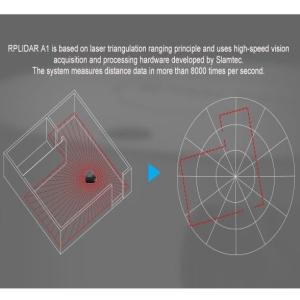

The RPLiDAR A1M8 utilizes laser triangulation technology to perform 360° scans, capturing data points to create detailed 2D point clouds. Its specifications include:
Distance Range: 0.15 to 12 meters
Angular Field of View: 360°
Resolution: 0.5–1.0% (minimum 0.5 mm) at distances less than 1.5 meters
Angular Resolution: ≤1° at 5.5 Hz scanning frequency
Sampling Frequency: 4000–8000 Hz
Scan Frequency: 1–10 Hz (typical 5.5 Hz)
This scanner is suitable for indoor and outdoor environments, excluding direct sunlight exposure. It's compatible with various development platforms and comes with an SDK for easy integration into your projects.
