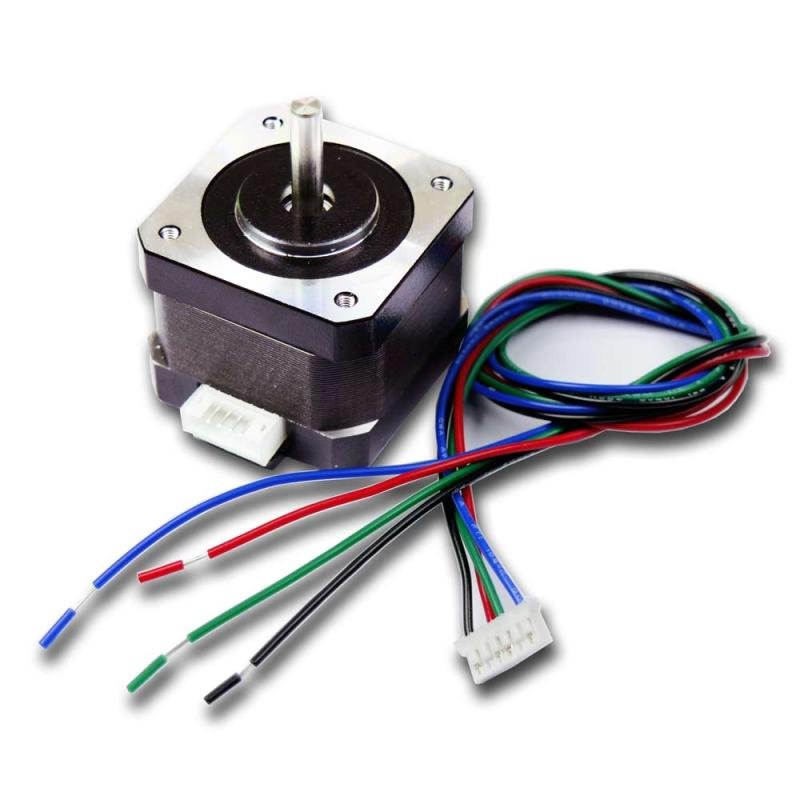

Nema17 Stepper Motor
৳1295
The NEMA17 Stepper Motor is a high-precision motor commonly used in robotics, CNC machines, and 3D printers. Known for its accuracy and reliable performance, the NEMA17 offers precise control over rotational movement, making it ideal for tasks that require exact positioning and stability. Whether you're building a robotic arm, setting up a 3D printer, or developing an automation system, this stepper motor ensures consistent and smooth operation. Widely used by engineers, hobbyists, and professionals in Bangladesh, the NEMA17 Stepper Motor is your go-to solution for reliable motion control in a variety of applications.
Stepper motor is a motor that moves in discrete steps, one step at a time. It is generally used in a variety of applications where precise position control is desirable such as 3D printer, laser cutter and pick & place machine. This NEMA 17 42HB34-401A bipolar stepper motor has a 1.8º step angle with 0.31N.m holding torque.

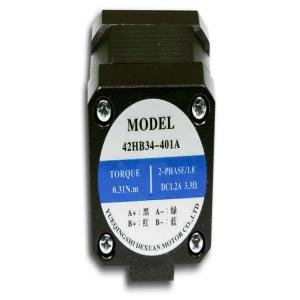

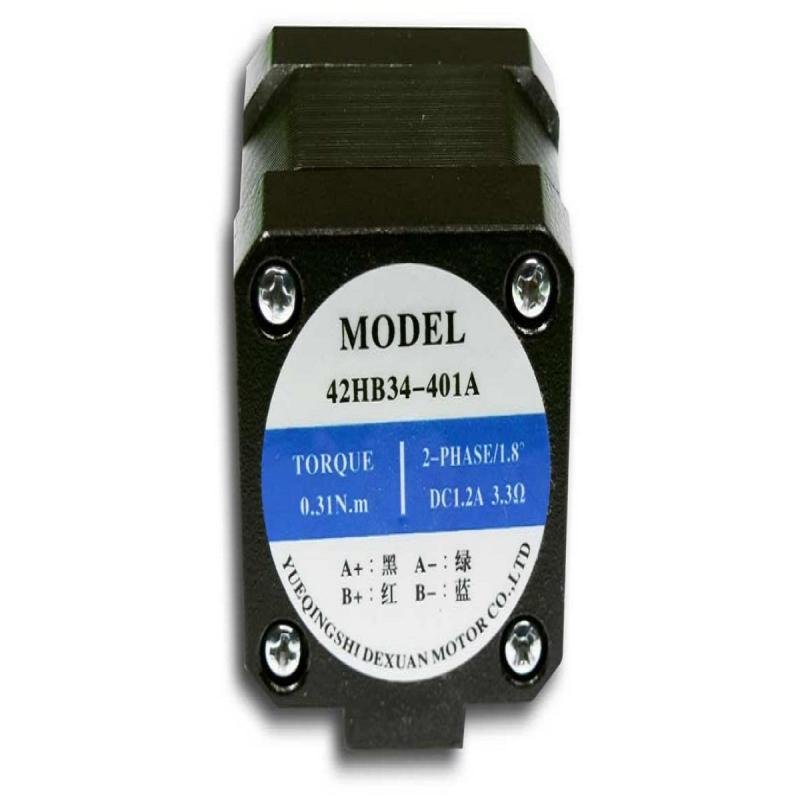

Model: 42HB34-401A
Compatible Stepper Motor Drivers:
Consider rearranging motor wires to match them to the sequence of motor driver.
With Current Control (chopper drivers):
Advanced Stepper Motor Driver
EasyDriver
A4988 Stepper Motor Driver
Without Current Control:
Bipolar Stepper Motor Driver
Electrical Specification:
- Motor Type: Bipolar Stepper
- Step Angle: 1.8 deg.
- Holding Torque: 0.31N.m
- Rated Current/phase: 1.2A
- Phase Resistance: 3.3 Ohm±10%
Physical Specification:
- Frame Size: 42 x 42mm (1.7 inch x 1.7 inch)
- Body Length: 33.50mm
- Shaft Diameter: 5mm
- Number of Wire Leads: 4
- Wire Length: 280mm
- Weight: 220g
