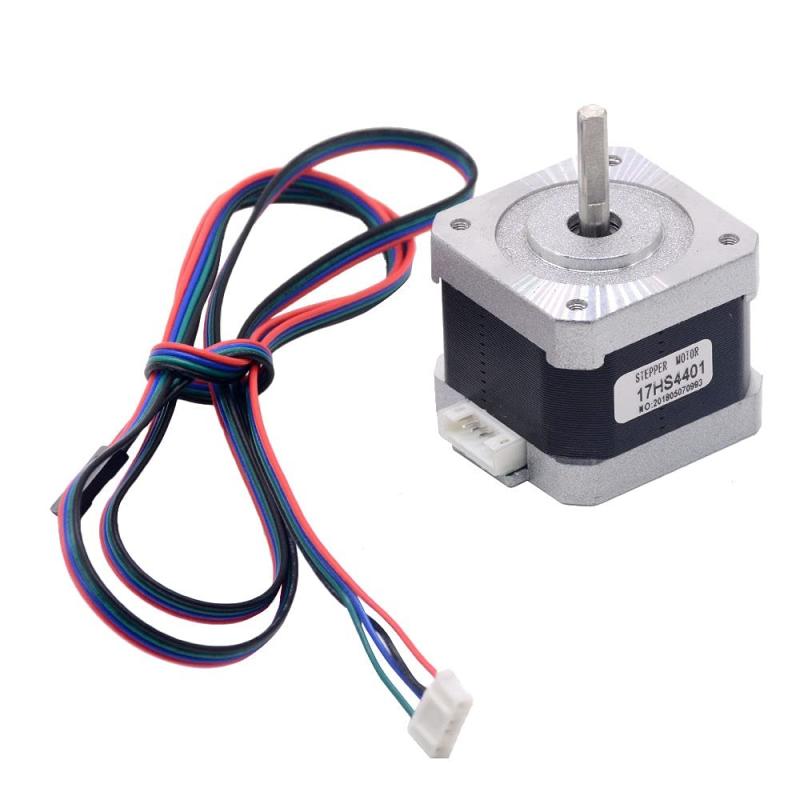

Nema 17 Stepper Motor 17HS4401 40mm Length 1.5A High Torque 42N.cm CNC 3D Printer Parts
৳1438
The NEMA 17 17HS4401 is a high-performance stepper motor designed for precision motion control applications. With a compact 42mm x 42mm frame and a 40mm body length, it delivers a holding torque of 42 N·cm, making it ideal for 3D printers, CNC machines, and robotics.
Categories:
Electronics Products
/
Motors & Drivers
/
3D Technology
/
Accessories
/
CNC & Laser Cutting
/
Material
Brand:
Made in China
SKU: Available
| Specification | Details |
|---|---|
| Frame Size | 42mm x 42mm x 40mm |
| Step Angle | 1.8° (200 steps/rev) |
| Rated Voltage | 3.6V |
| Current per Phase | 1.7A |
| Resistance per Phase | 2.4Ω ±15% |
| Inductance per Phase | 3.7mH ±20% |
| Holding Torque | 42 N·cm |
| Insulation Class | B (130°C) |
| Ambient Temperature | -20°C to +50°C |
| Shaft Diameter | 5mm |
| Shaft Length | 21mm |
