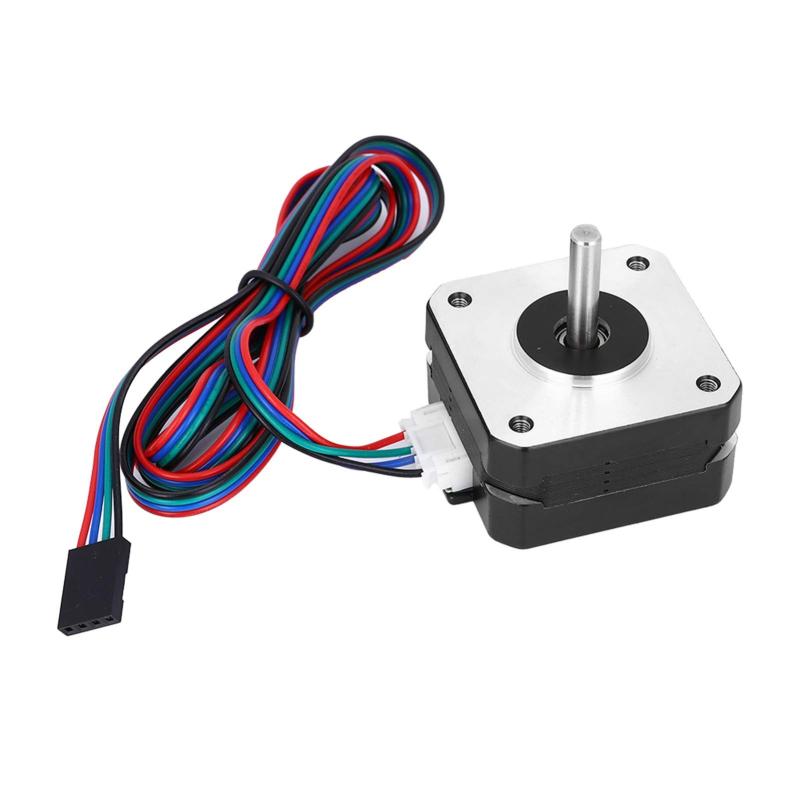

Nema 17 Stepper Motor 17HS4023 23mm Length 1.0A High Torque 14N.cm CNC 3D Printer Parts
৳831
The NEMA 17 17HS4023 is a compact and efficient stepper motor designed for precision motion applications. With a frame size of 42mm x 42mm and a length of 22mm, it offers a balance between size and performance, making it suitable for 3D printers, CNC machines, and other automation projects.
Categories:
Electronics Products
/
Motors & Drivers
/
3D Technology
/
Accessories
/
CNC & Laser Cutting
/
Material
Brand:
Made in China
SKU: Available
| Specification | Details |
|---|---|
| Frame Size | 42mm x 42mm x 22mm |
| Step Angle | 1.8° (200 steps/rev) |
| Rated Voltage | 12V |
| Current per Phase | 0.7A |
| Resistance per Phase | 4.0 ± 10% Ω |
| Inductance per Phase | 3.2 ± 20% mH |
| Holding Torque | 14 N·cm |
| Insulation Class | B (130°C) |
| Ambient Temperature | -20°C to +50°C |
| Shaft Diameter | 5mm |
| Shaft Length | 21mm |
