L293D DC Motor Driver Shield
৳220
Motor Driver L293D Dual Channel
৳220
The L293D Dual Channel Motor Driver is a versatile and efficient motor driver designed to control two DC motors simultaneously. It provides forward, reverse, and braking control, making it ideal for robotics, automation, and other motor-driven projects. Compatible with a variety of microcontrollers like Arduino, the L293D ensures smooth and reliable motor control, allowing for precise movement and speed regulation. Whether you're building a robot, an automated system, or a DIY motor project, the L293D motor driver offers a simple yet powerful solution for controlling your motors in Bangladesh.
Motor Driver L293D Dual Channel

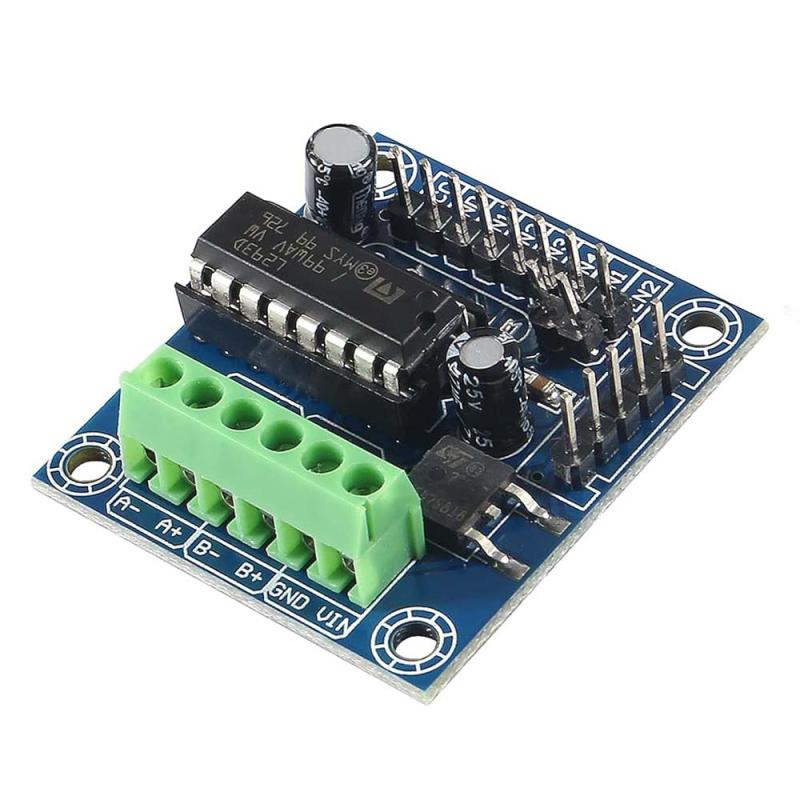

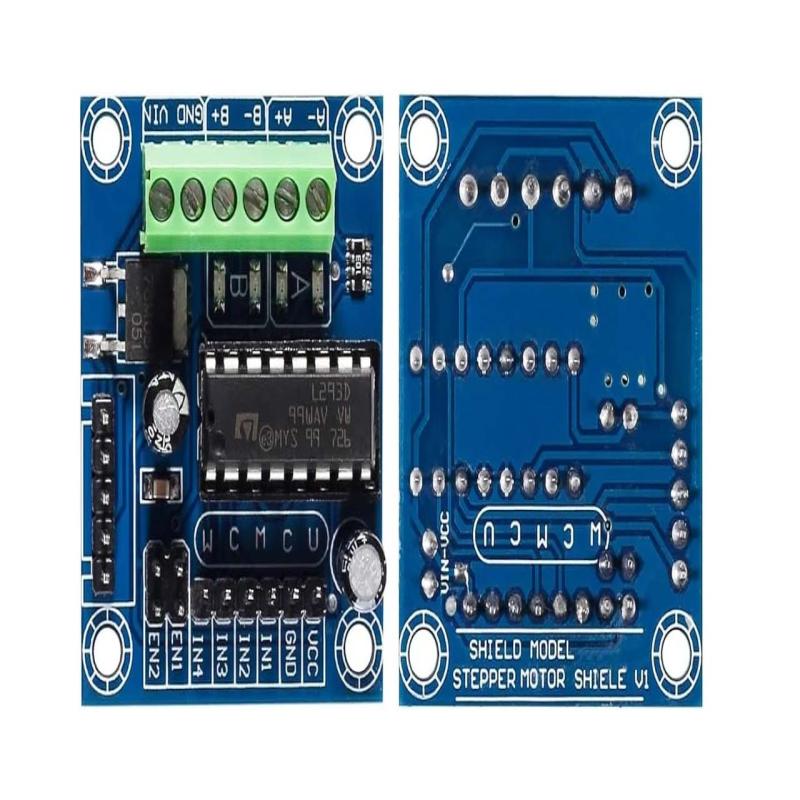

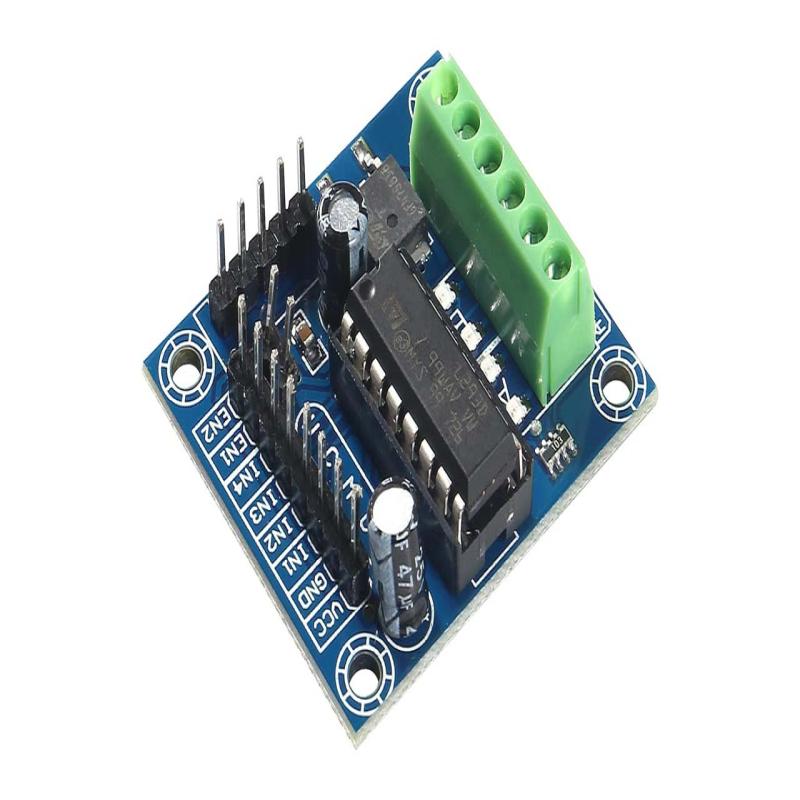

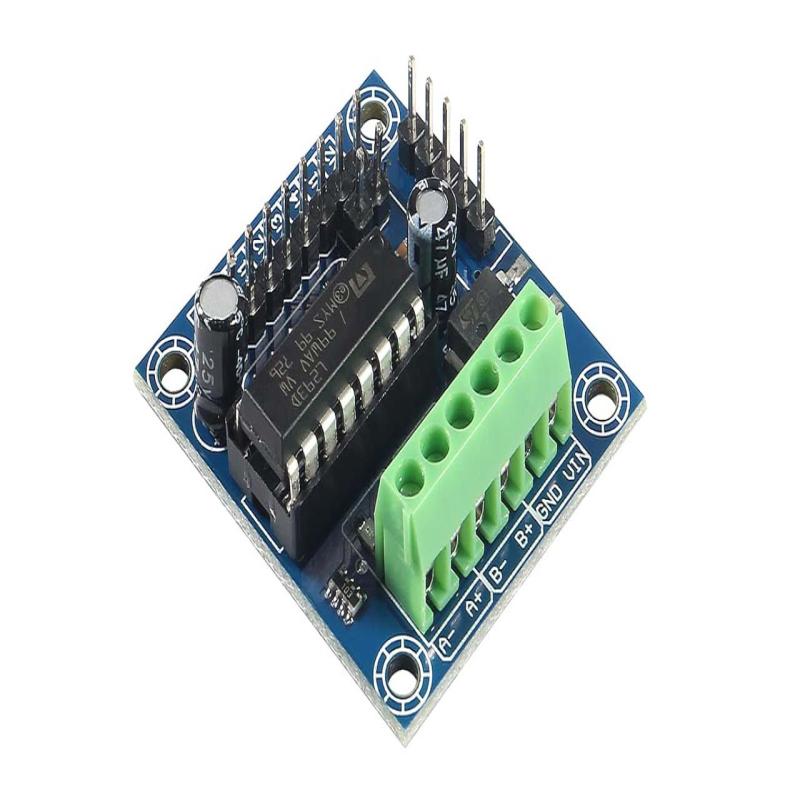

The L293D Dual Channel Motor Driver Module (HW-310) is a compact and versatile motor control board designed for seamless integration with popular Arduino platforms such as the UNO and MEGA 2560. Powered by the reliable L293D H-Bridge motor driver IC, it enables precise control of two DC motors or one stepper motor, supporting full PWM-based speed and direction control.
Ideal for robotics, automation, and motion control projects, this module provides a simple yet powerful solution for students, hobbyists, and engineers working on Arduino-driven motorized applications.
Key Features
- Drives two bidirectional DC motors with speed and direction control
- Supports one stepper motor in full, half, or microstepping mode
- Delivers 600mA continuous and 1.2A peak current per channel
- Supports motor voltages from 4.5V to 36V
- Onboard thermal shutdown protection for safe operation
- Compatible with TTL/DTL logic signals (up to 1.5V logic low)
- Built-in clamp diodes for inductive load protection
- Includes onboard power indicator LED
- Large terminal blocks support 10 to 22 AWG wires for easy connections
Technical Specifications:
Parameter | Specification |
|---|---|
Model | HW-310 |
IC Used | L293D Dual Channel H-Bridge |
Motor Support | 2 DC motors, 1 stepper motor |
Output Current | 600mA per channel (1.2A peak) |
Voltage Range | 4.5V to 36V (motor) |
Logic Voltage | 5V (TTL/DTL compatible) |
Protection | Thermal shutdown, clamp diodes |

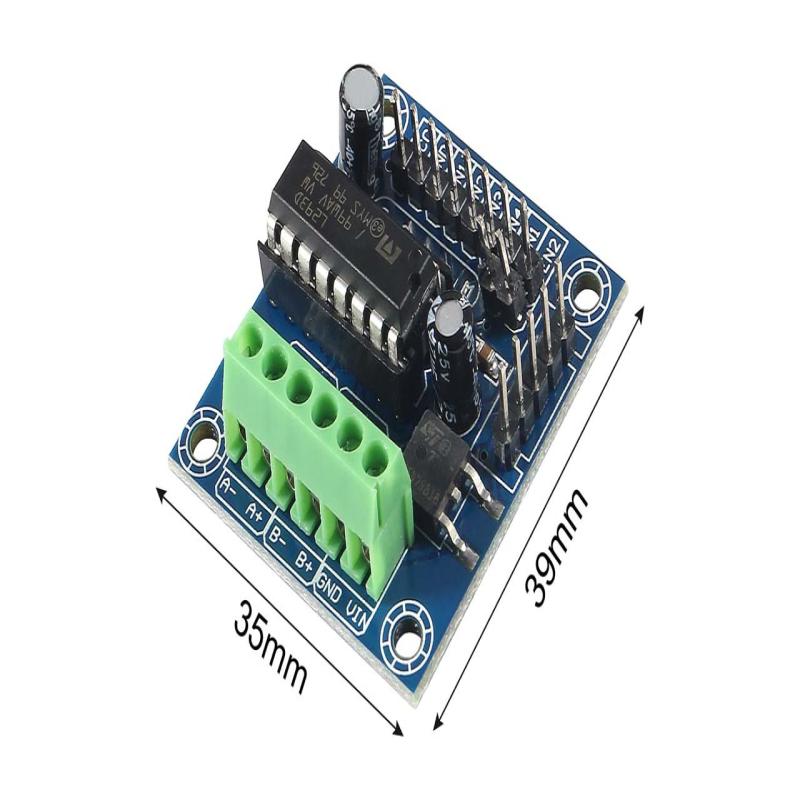

Board Dimensions | 39 x 35 x 12 mm |
Compatibility | Arduino UNO, MEGA, Diecimila, Duemilanove |
Applications
- Arduino-based robotics projects
- DC and stepper motor-based automation systems
- Smart car or vehicle kits
- Motorized IoT and home automation projects
- STEM education and beginner electronics learning kits
Packaging Details
1 X Motor Driver L293D Dual Channel
Why Choose This Motor Driver L293D Dual Channel?
This motor driver offers dual motor control in a compact, easy-to-integrate design with built-in thermal and electrical protection to ensure long-term reliability. It is ideal for both educational use and prototype development, fully compatible with popular Arduino boards, and supports simple wiring and installation thanks to clearly labeled terminals.
