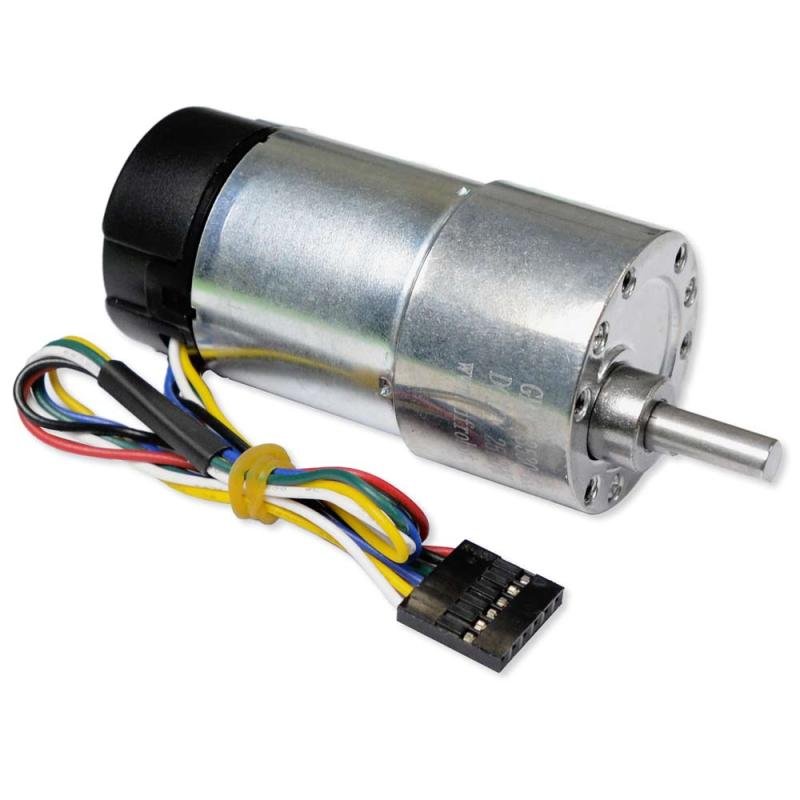

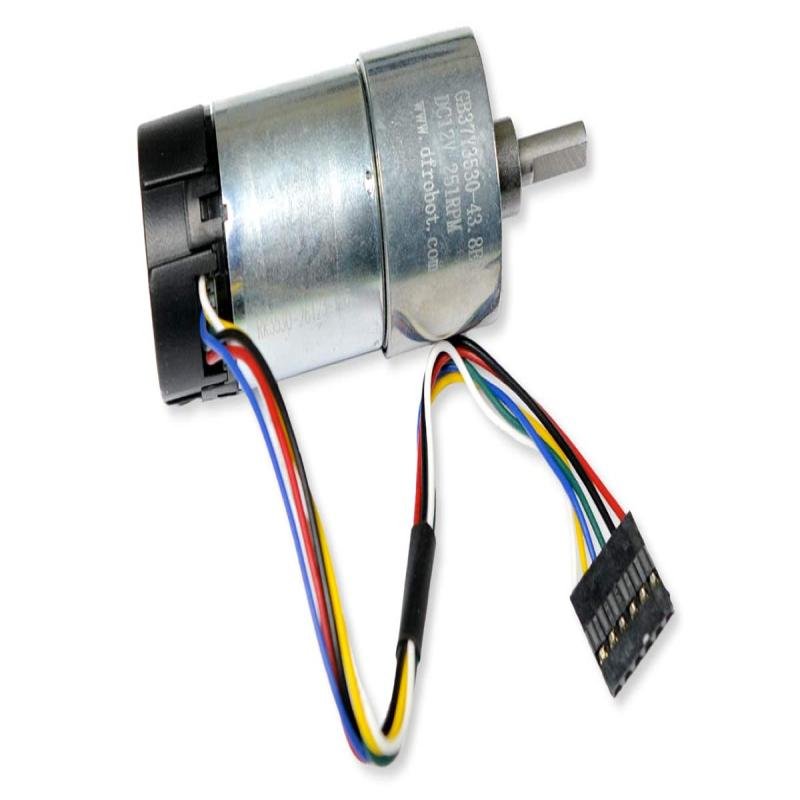

Metal DC Geared Motor w/Encoder - 12V 251RPM 18Kg.cm
৳4200
The 12V Metal DC Geared Motor with Encoder delivers both power and precision for demanding robotics and automation projects. With a gear ratio that provides 251RPM speed and up to 18Kg.cm torque, it’s capable of driving heavy loads with reliability. The built-in encoder feedback allows accurate control of speed and position, making it a top choice for robotic arms, autonomous vehicles, conveyor systems, and industrial prototypes. Built with durable metal gears, this motor ensures long life under continuous use—perfect for engineering students, makers, and robotics teams in Bangladesh who need strength and precision in one package.
This powerful 12V DC gear motor comes with a 43.8:1 metal gearbox and an integrated quadrature encoder, delivering 16 counts per revolution of the motor shaft (≈700 counts per revolution at the output shaft). It features a 6mm (0.24") D-shaped output shaft, 15.5mm-spaced M3 threaded mounting holes on a hexagonal faceplate, and can start rotating at voltages as low as 1V. Designed for robotics and automation projects, it provides precise motion control and durability.
Note: Do not insert screws deeper than 3mm (1/8") into the mounting holes to avoid damaging the gears.
- Gear ratio: 43.8:1
- No-load speed: 251 + 10% RPM
- No-load current: 350 mA
- Start Voltage: 1.0 V
- Stall Torque: 18 Kg.com
- Stall Current: 7 A
- Insulation resistance: 20 M Ω
- EncoderOperating Voltage: 5 V
- Encoder type: Hall
- Encoder Resolution: 16CPR(motor shaft)/700CPR(gearbox shaft)
- Weight: 205g
