MC33926 Motor Driver Carrier
৳1700

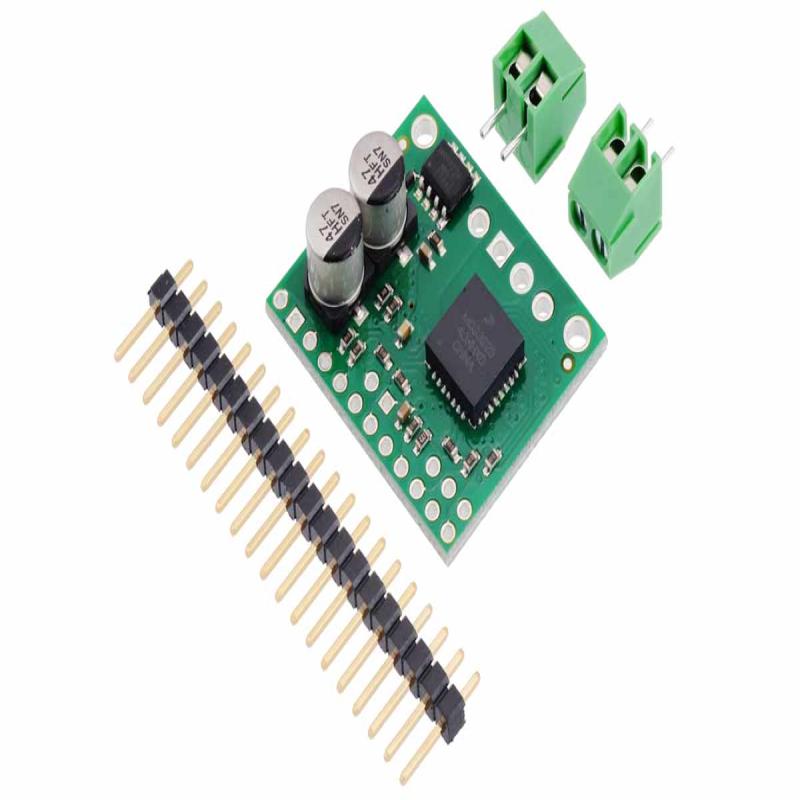

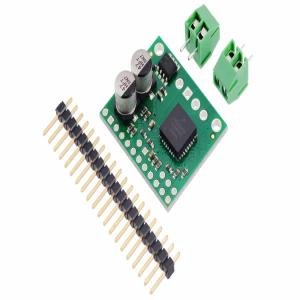

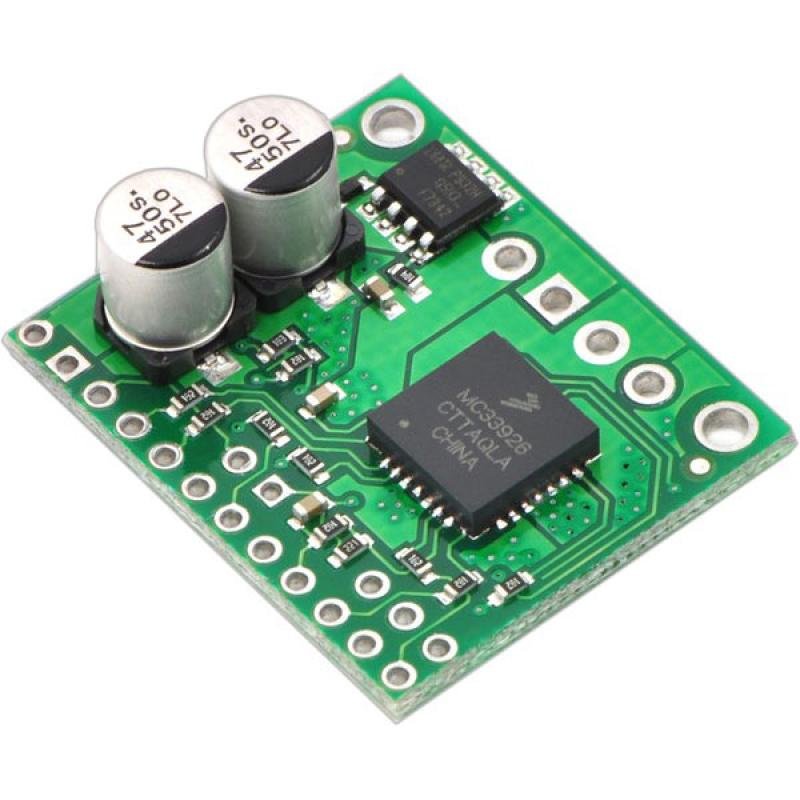

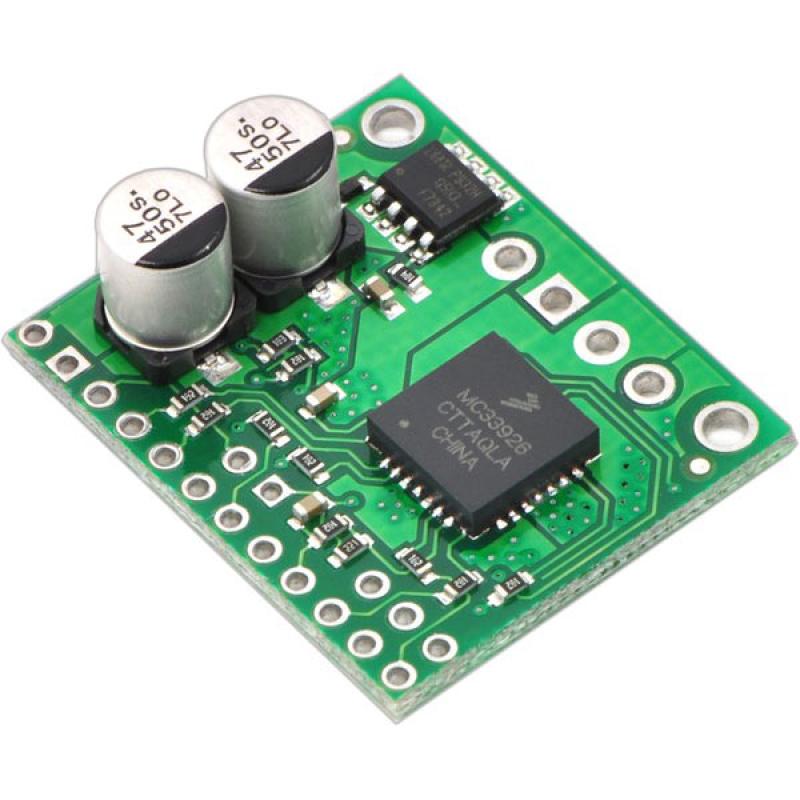

The MC33926 Motor Driver Carrier is a high-power DC motor driver module based on the MC33926 H-bridge IC. Capable of delivering up to 5A continuous current (peaks higher), it’s ideal for driving medium to large DC motors in robotics, automation, and embedded systems. Built-in protections such as overcurrent, undervoltage, and thermal shutdown ensure reliability and safety in demanding applications. Compatible with Arduino, Raspberry Pi, and other microcontrollers, this driver gives makers and engineers in Bangladesh a compact and efficient solution for powering motors in DIY projects, university robotics, and industrial prototypes.
The MC33926 H-Bridge Power IC (originally designed for automotive throttle control) is a versatile solution for low-voltage DC servo motor applications. This breakout board operates from 5 V to 28 V and can deliver up to 3 A continuous current (with 5 A peak for short durations), making it well-suited for medium-sized brushed DC motors.
Key Features:
-
Logic-level compatibility: 3 – 5 V
-
Ultrasonic PWM support up to 20 kHz (eliminates audible switching noise)
-
Current feedback via analog output on FB pin
-
Built-in protection features: under-voltage, over-current, and over-temperature
Compact, reliable, and efficient, this motor driver is an excellent choice for robotics, automation, and general-purpose DC motor control.
