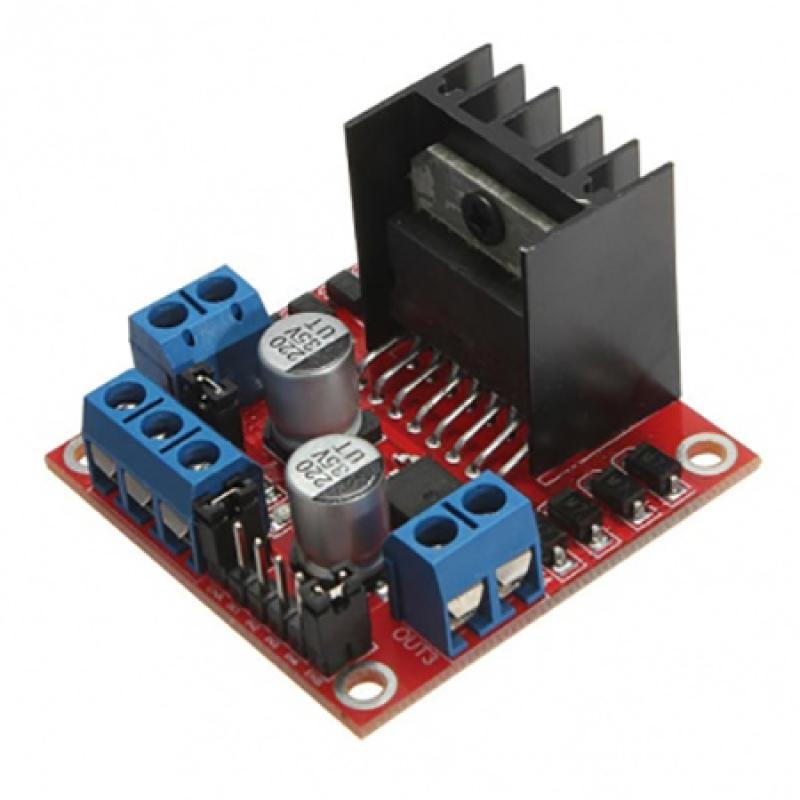

L298N Motor Driver Red
৳180
The L298N Motor Driver (Red) is a widely used dual H-bridge driver board for controlling motors in robotics and DIY electronics. It can handle two DC motors independently or one stepper motor, with up to 2A per channel and built-in direction and speed control. The onboard heat sink ensures stable performance during extended use. Easy to interface with Arduino, ESP32, Raspberry Pi, and other microcontrollers, this module is especially popular in robot car kits, obstacle-avoiding bots, and automation systems in Bangladesh. Affordable and beginner-friendly, the red L298N remains a go-to motor driver for students and hobbyists.
This module can drive two DC motors or one stepper motor simultaneously. Powered by the L298N high-voltage, high-current dual full-bridge driver IC, it is ideal for controlling DC motors, stepper motors, relay coils, and other inductive loads with reliability and efficiency.
-
Logic Control: Operates with standard logic-level signals. Two enable control pins (ENA, ENB) allow or disable outputs independently.
-
Power Supply:
-
Operating voltage: 7V – 35V (motor supply).
-
Integrated 5V regulator provides logic supply when motor voltage is within range.
-
The onboard +5V can also be used as an external supply output (when not powered externally).
-
-
Current Sensing: External sense resistors can be connected for feedback to a control circuit.
-
Output Control:
-
When ENA = HIGH, IN1/IN2 control OUT1/OUT2.
-
When ENB = HIGH, IN3/IN4 control OUT3/OUT4.
-
This module is widely used in robotics and automation projects for reliable motor control.
Application:
1: driving stepper motor
2: driving brushed DC motor motor
