L298N Motor Driver Green
৳290

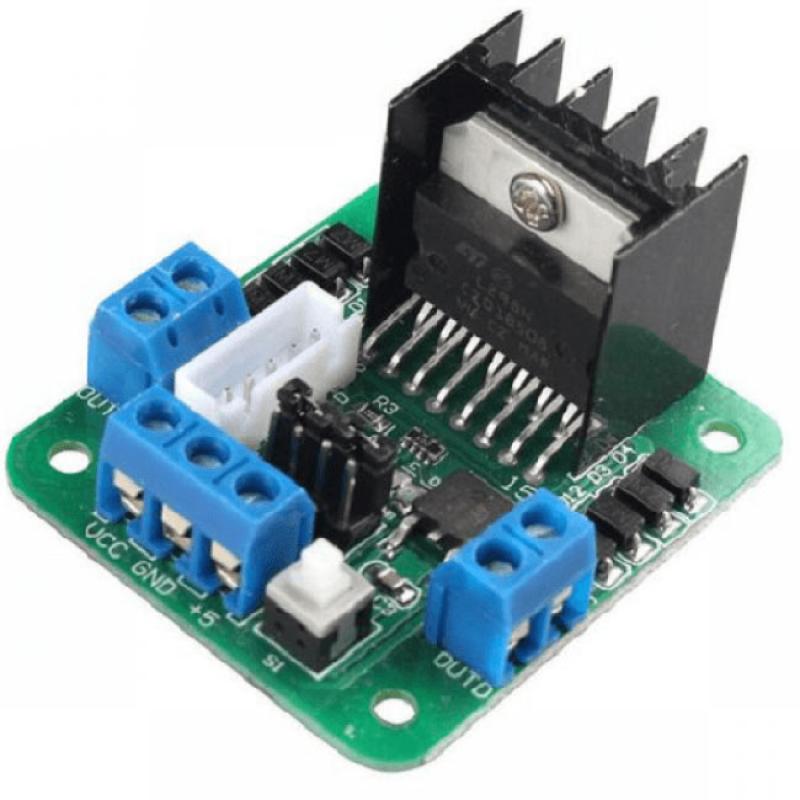

The L298N Motor Driver (Green) is a popular dual H-bridge driver module that can control two DC motors or one stepper motor simultaneously. Capable of handling up to 2A per channel, it’s widely used in Arduino projects, smart robot cars, obstacle-avoiding robots, and automation systems. The onboard heat sink improves durability, while its simple pinout makes it easy for students, beginners, and hobbyists in Bangladesh to get started with motor control. Affordable, reliable, and versatile, the L298N remains one of the most widely used motor driver modules in robotics education.
Built around the L298N high-voltage, high-current dual full-bridge driver IC, this module is ideal for controlling DC motors, stepper motors, relay coils, and other inductive loads. It supports standard logic-level signals and features two enable pins for independent motor output control.
-
Logic Control: Standard logic-level input signals ensure easy interfacing with microcontrollers. The onboard logic circuit can operate at low voltage, independent of motor supply voltage.
-
Current Feedback: Supports the use of external sense resistors for current monitoring and feedback to control circuits.
-
Power Supply:
-
Motor supply voltage: 7V – 35V
-
Integrated 5V regulator provides logic power when motor supply is in range
-
+5V pin can also be used as an external output when onboard regulation is active
-
-
Control Mapping:
-
ENA = HIGH → IN1/IN2 control OUT1/OUT2
-
ENB = HIGH → IN3/IN4 control OUT3/OUT4
-
This reliable module is widely used in robotics, automation, and DIY electronics projects for efficient motor control.
Application:
1: driving stepper motor
2: driving brushed DC motor
