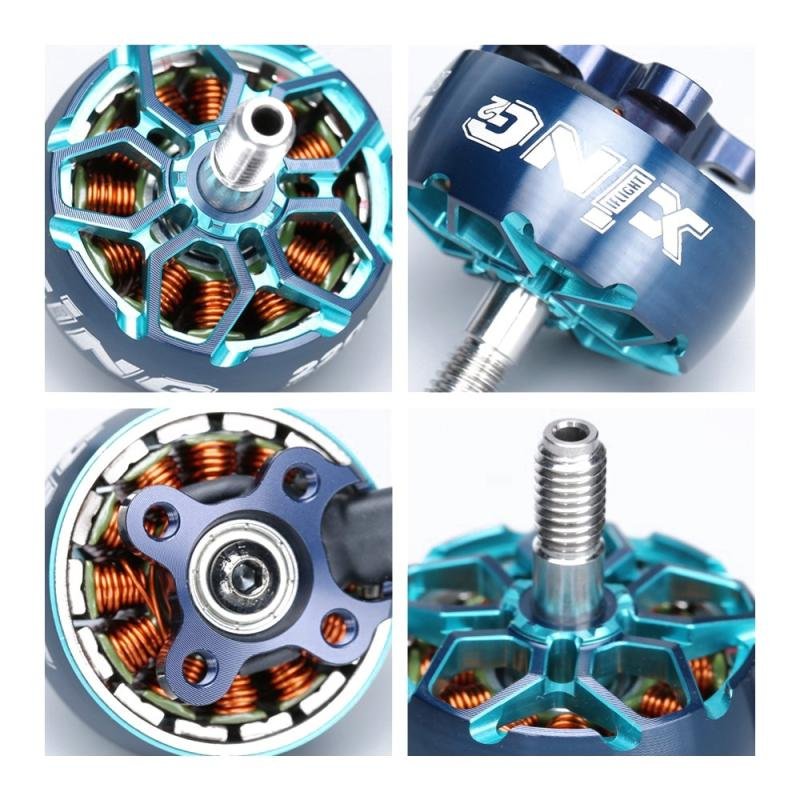

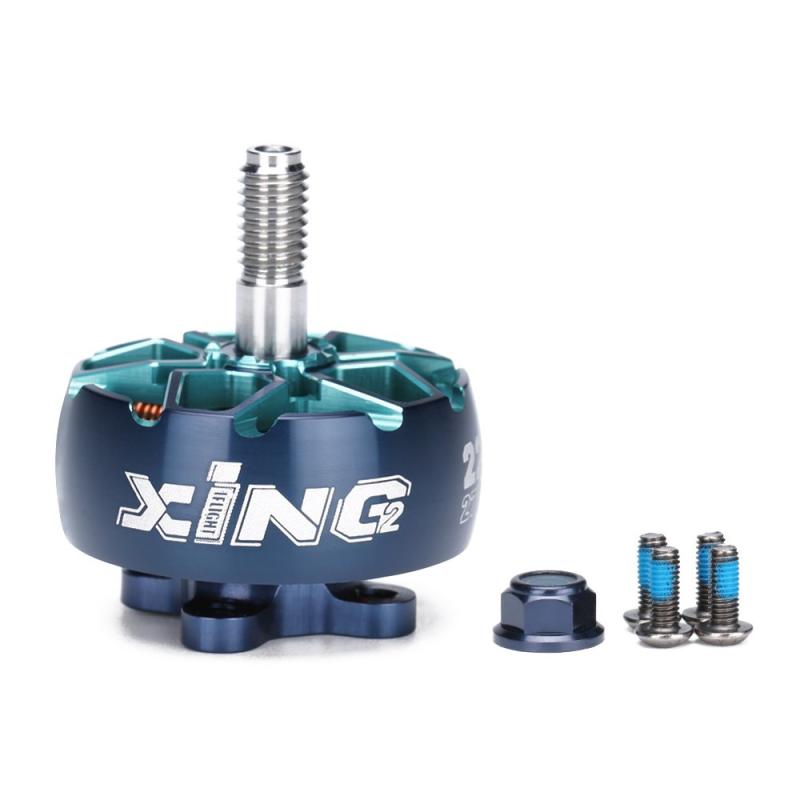

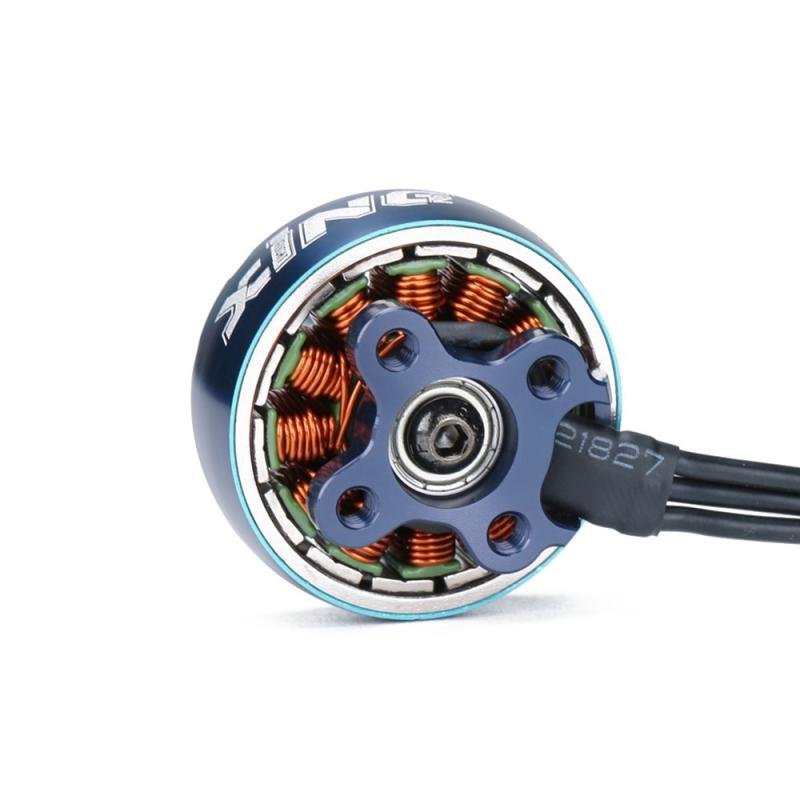

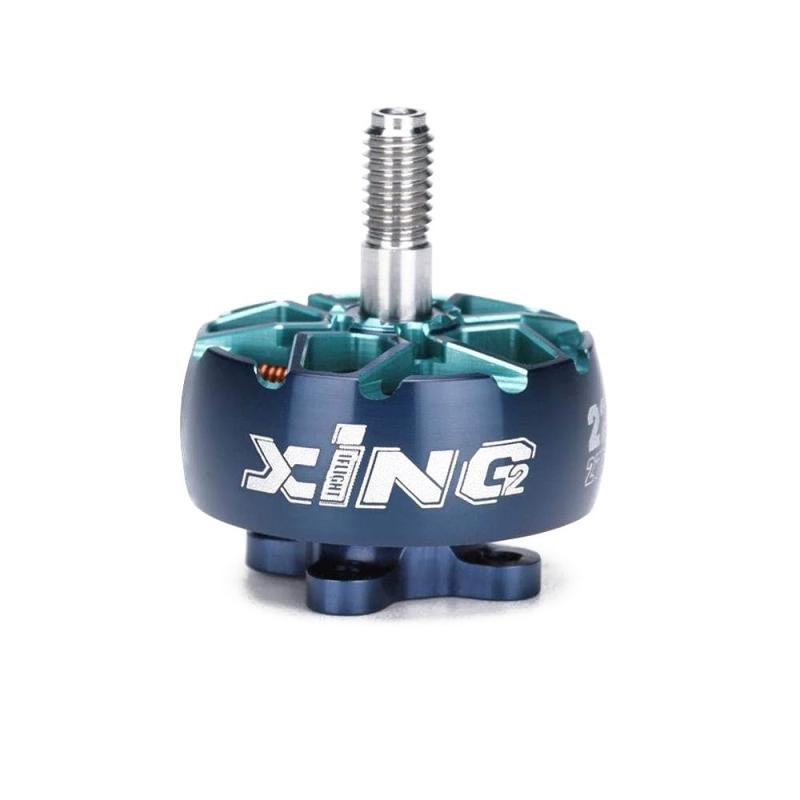

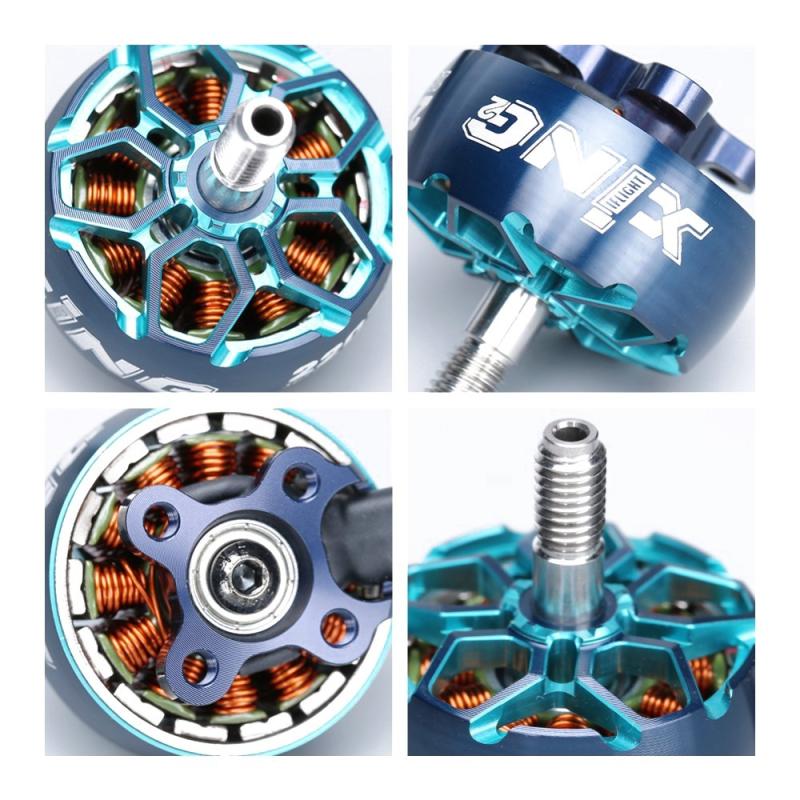

iFlight XING2 2207 Motor 2755KV- 1PCS
৳3130
The iFlight XING2 2207 2755KV motor is engineered for 5-inch racing drones, offering a balance between power and efficiency. With a 5mm titanium alloy shaft and a crash-resistant 7075 aluminum bell, it ensures durability and longevity. The motor features center-slotted N52H curved arc magnets and NSK 9x4x4 bearings for smooth operation. Its dynamically balanced design reduces vibrations, providing a stable flight experience.
| Feature | Specification |
|---|---|
| Model | XING2 2207 |
| KV Rating | 2755KV |
| Stator Diameter | 22mm |
| Stator Length | 7mm |
| Configuration | 12N14P |
| Shaft Diameter | 5mm |
| Shaft Protruding Length | 13.5mm |
| Weight (with short wire) | 31.6g |
| Mounting Pattern | 16×16mm (M3) |
| Input Voltage | 4S LiPo |
| Max Power Output | 645.6W |
| Peak Current | 40.35A |
| Magnet Type | N52H Curved |
| Bearing Type | NSK 9×4×4 |
| Rotor Type | Unibell |
| Wire Length | 160mm (20AWG) |
