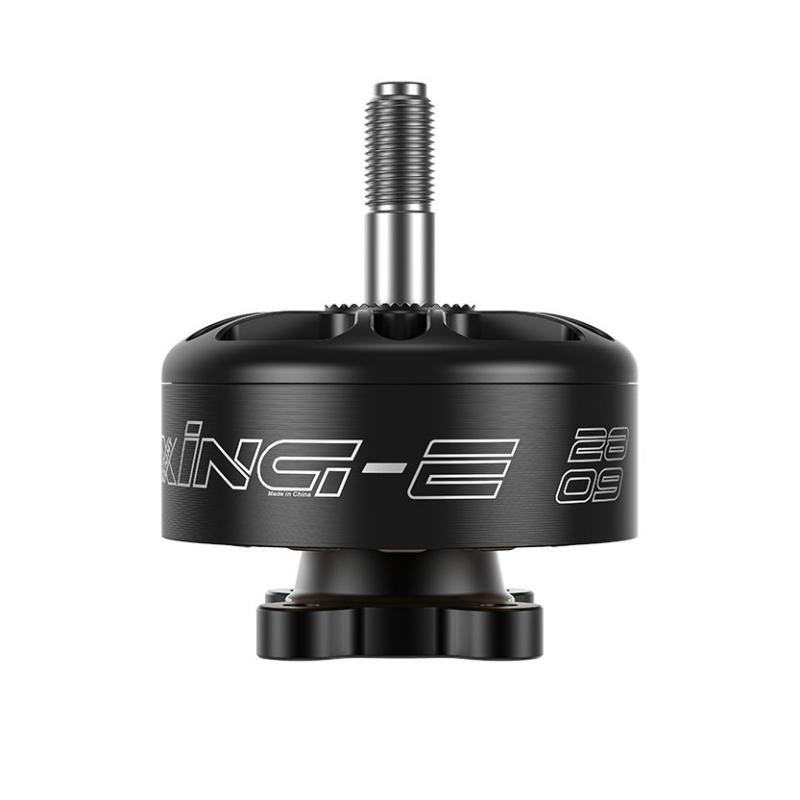

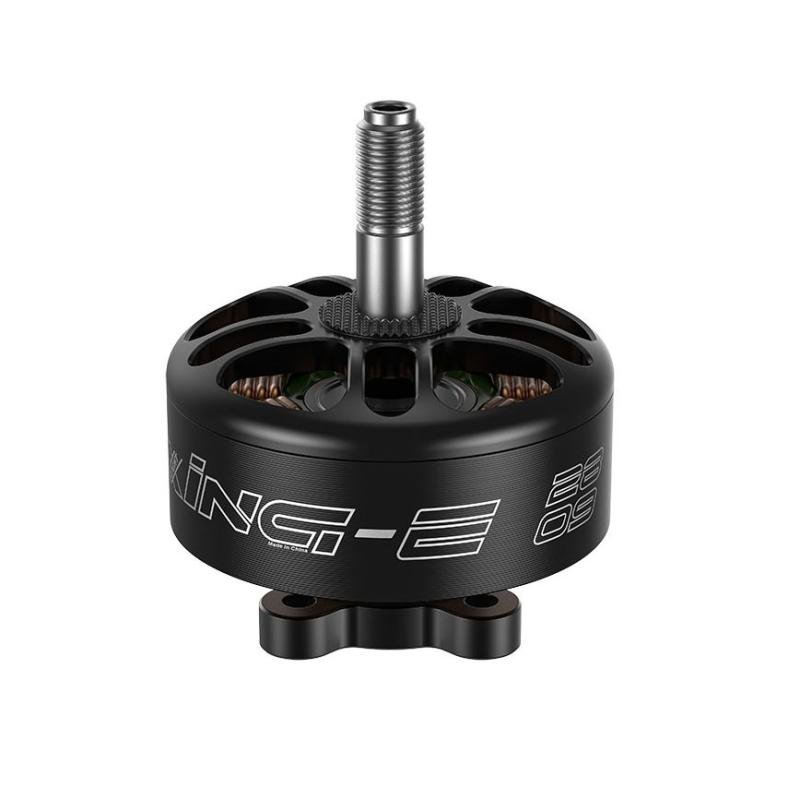

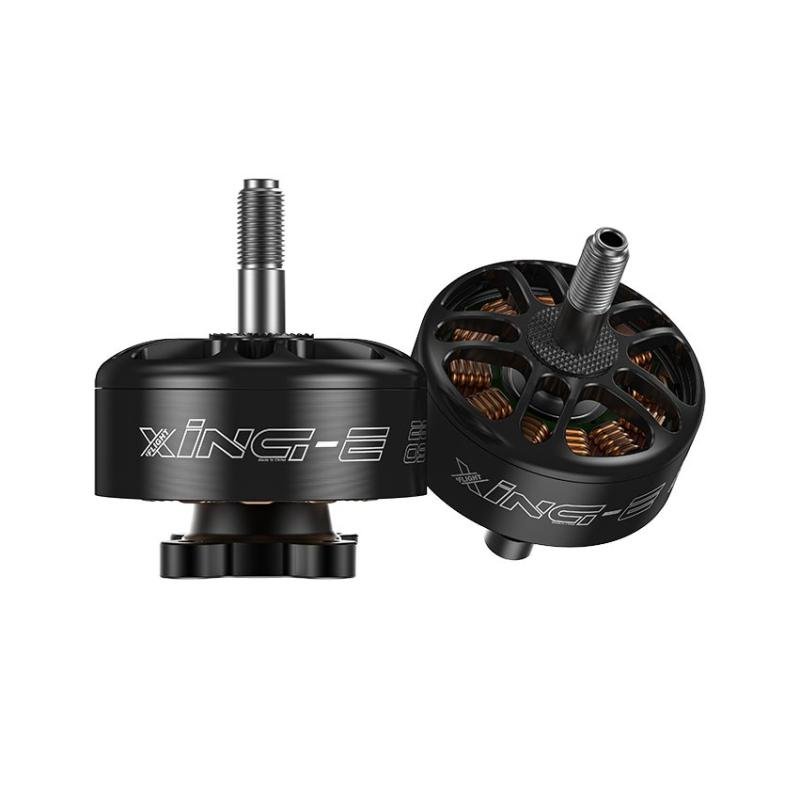

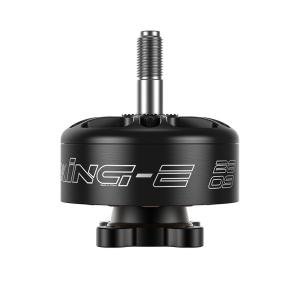

iFlight XING-E 2809 1250Kv
৳4,174
The iFlight XING-E 2809 1250KV is a high-power FPV motor tailored for 7–8″ long-range drones powered by 6S batteries. Combining affordability with performance, it delivers efficient thrust and durable construction, making it a smart choice for cinequads, freestyle builds, and long-range setups.
| Feature | Details |
|---|---|
| Motor Model | XING-E 2809 1250 KV |
| KV Rating | 1250 KV |
| Max Power Output | ~1147 W |
| Peak Current | ~49 A |
| Weight (incl. wires) | ~60.4 g |
| Dimensions | φ33.2 × 39.3 mm (stator bell) |
| Mount Pattern | 19×19 mm, Ø 3 mm holes |
| Shaft | 5 mm diameter; 15.5 mm protrusion |
| Bearings | φ11×φ5×5 mm |
| Magnet Type | Curved N52H high-temperature |
| Coil Configuration | 12N14P; single-strand copper winding |
| Input Voltage | 24 V (6S recommended) |
| Interphase Resistance | ~65 mΩ |
| Lead Wires | 260 mm, 18 AWG |
| Included in Package | Motor, 4× M3 screws, M5 flange nut |
