Axisflying AF227 FPV Motor- 4PCS
৳12,973

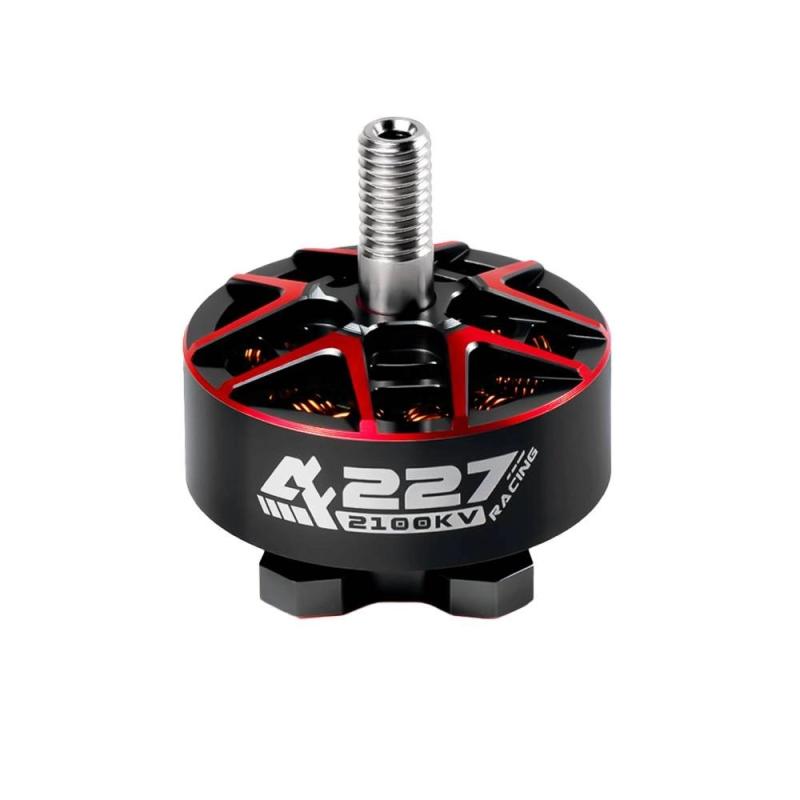

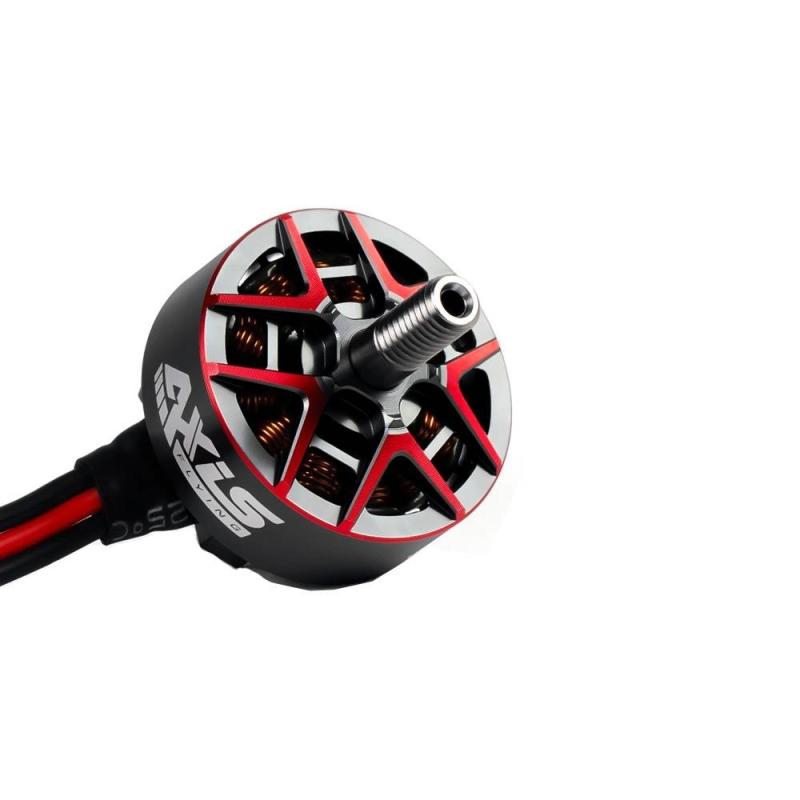

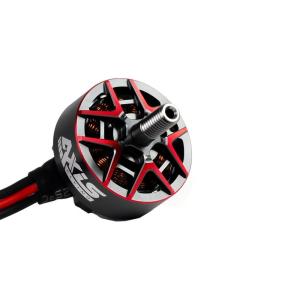

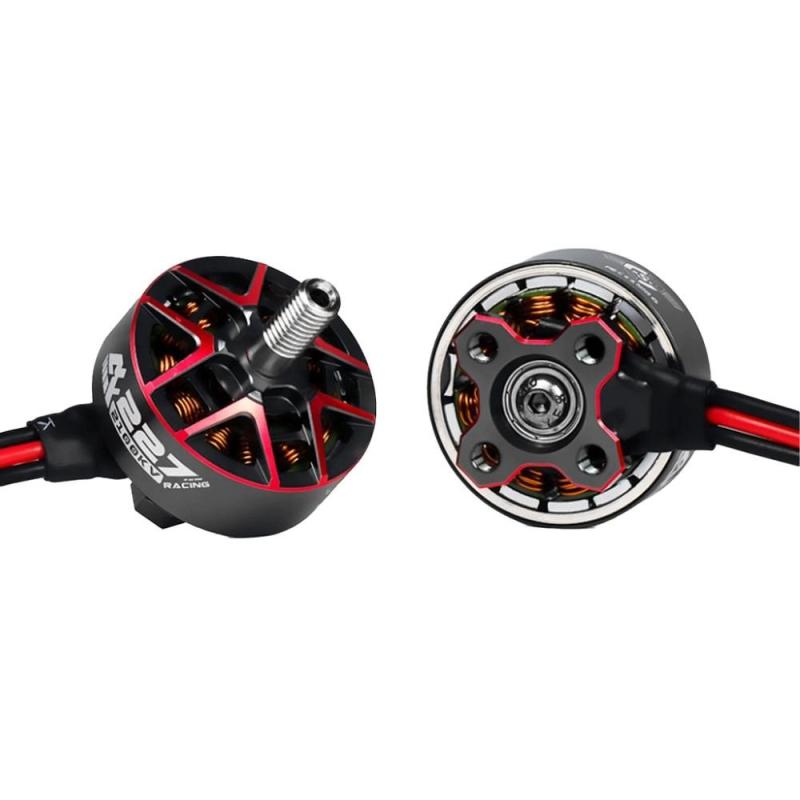

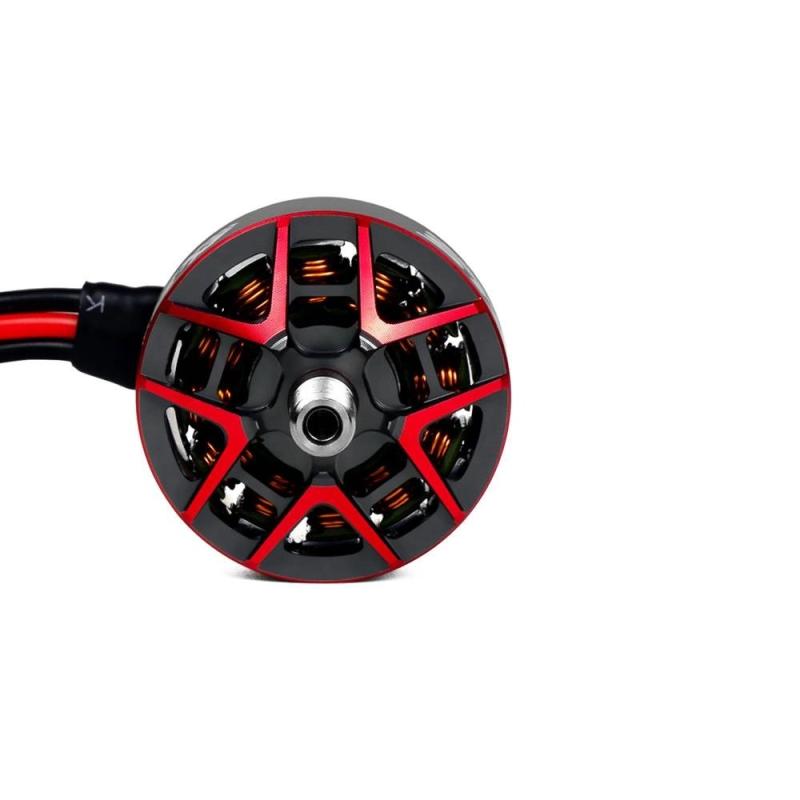

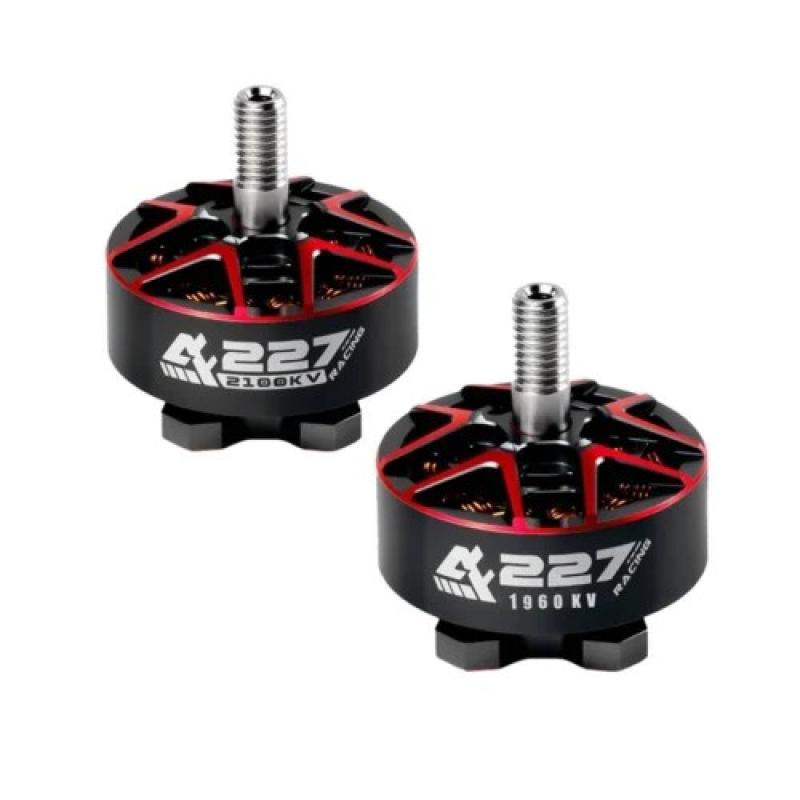

The Axisflying AF227 is a high-quality brushless motor tailored for 5-inch FPV drones, available in 1960 KV (ideal for smoother freestyle flight) and 2100 KV (built for agile racing). Crafted for 6S setups, it's a dependable choice for both passionate freestyle pilots and racers.
Option:
| Feature | Details (1960 KV / 2100 KV) |
|---|---|
| KV Rating | 1960 KV (freestyle) / 2100 KV (racing) |
| Stator Size | 22 × 7 mm |
| Configuration | 12N14P with N52H arc magnets |
| Bearing Protection | IP53 “Bearing Shield Technology” |
| Voltage (Cells) | 6S LiPo |
| Dimensions (Ø × Length) | 27 × 33 mm |
| Motor Mount Pattern | 4 × M3 holes (16 mm spacing) |
| Shaft | M5 thread |
| Cables | AWG 20, 150 mm length |
| Weight (without cables) | ~30 g |
| Approx Thrust | Over 1.9 kg |
| Typical Current Draw | ~45 A |
| Max Power (2100 KV) | ~1189 W, with internal resistance ~53 mΩ |
| Max Power (1960 KV) | ~1105 W, with internal resistance ~58 mΩ |
| Package Includes | Motor, screws, M5 nut, O-ring, washers |
| Use Case | 1960 KV → freestyle; 2100 KV → racing |
| Special Feature | Dustproof/waterproof bearing housing |
