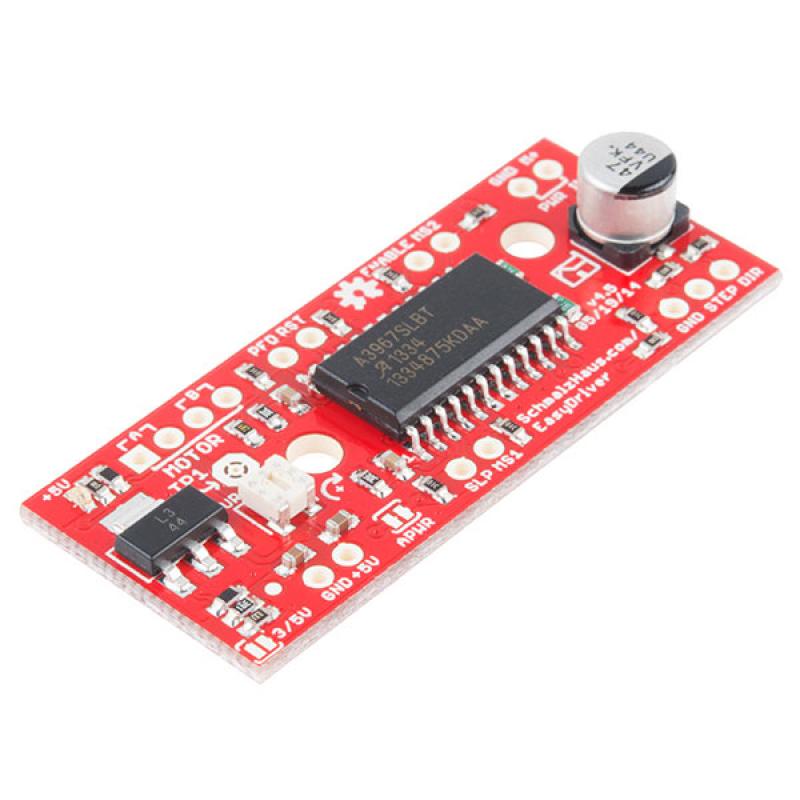

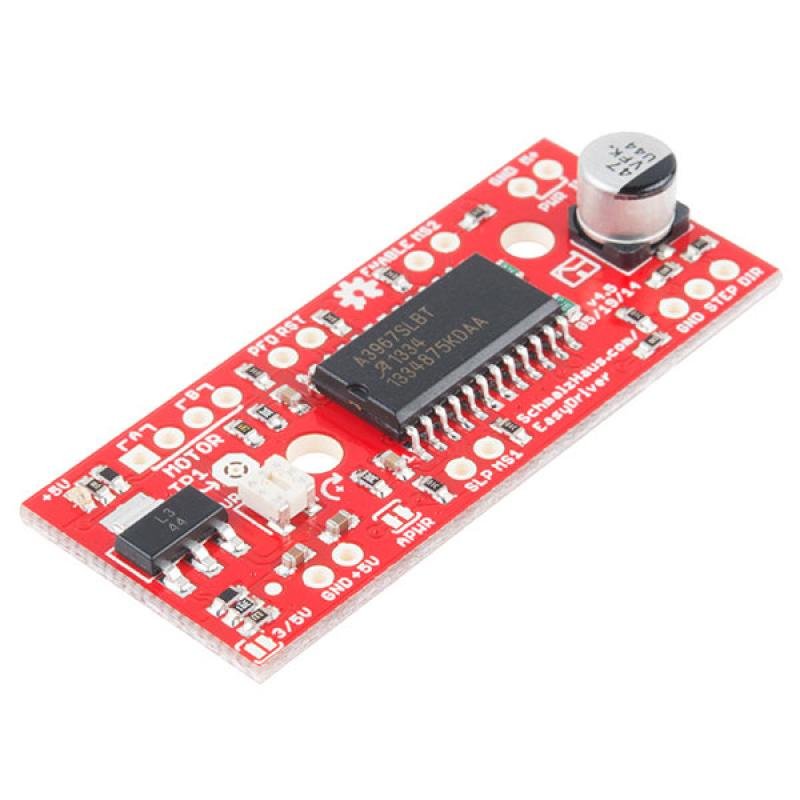

EasyDriver Stepper Motor Driver
৳980
The EasyDriver Stepper Motor Driver is a popular driver module designed to control bipolar stepper motors with ease. Compatible with Arduino, Raspberry Pi, and other microcontrollers, it supports microstepping up to 1/8 step, allowing smoother and more precise motor control. The module can handle a wide range of input voltages and provides reliable current regulation, making it suitable for CNC machines, 3D printers, camera sliders, robotics, and DIY automation projects. In Bangladesh, it’s a favorite among students, hobbyists, and makers who want a simple yet powerful stepper motor driver for their builds
The EasyDriver is a user-friendly stepper motor driver compatible with any device capable of outputting digital pulses (0–5V, or 0–3.3V when SJ2 is soldered closed). It operates with a 7V–30V power supply and can drive stepper motors of various voltages.
Key features include:
-
Onboard voltage regulator for the digital interface, configurable to 5V or 3.3V
-
Supports bi-polar stepper motors as well as 4, 6, or 8-wire motors wired in a bi-polar configuration
-
Simple connection: just attach a 4-wire stepper motor and a microcontroller for precise motor control
The EasyDriver is a reliable solution for robotics, CNC machines, and other precision motion projects.
Note: Do not connect or disconnect a motor while the driver is energized. This will cause permanent damage to the A3967 IC.
- A3967 microstepping driver
- MS1 and MS2 pins broken out to change microstepping resolution to full, half, quarter and eighth steps (defaults to eighth)
- Compatible with 4, 6, and 8 wire stepper motors of any voltage
- Adjustable current control from 150mA/phase to 750mA/phase
- Power supply range from 7V to 30V. The higher the voltage, the higher the torque at high speeds
