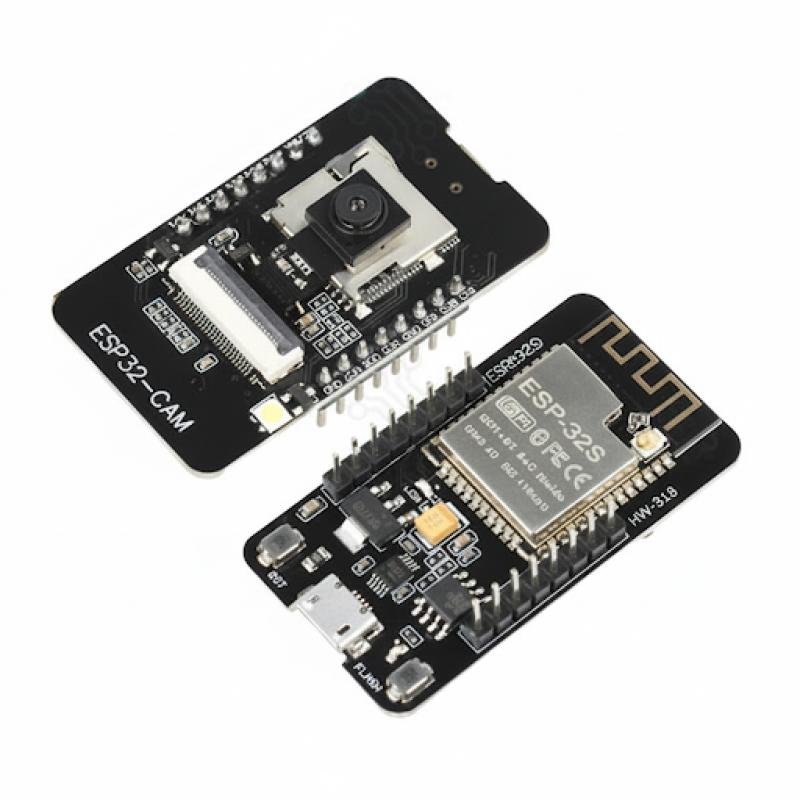

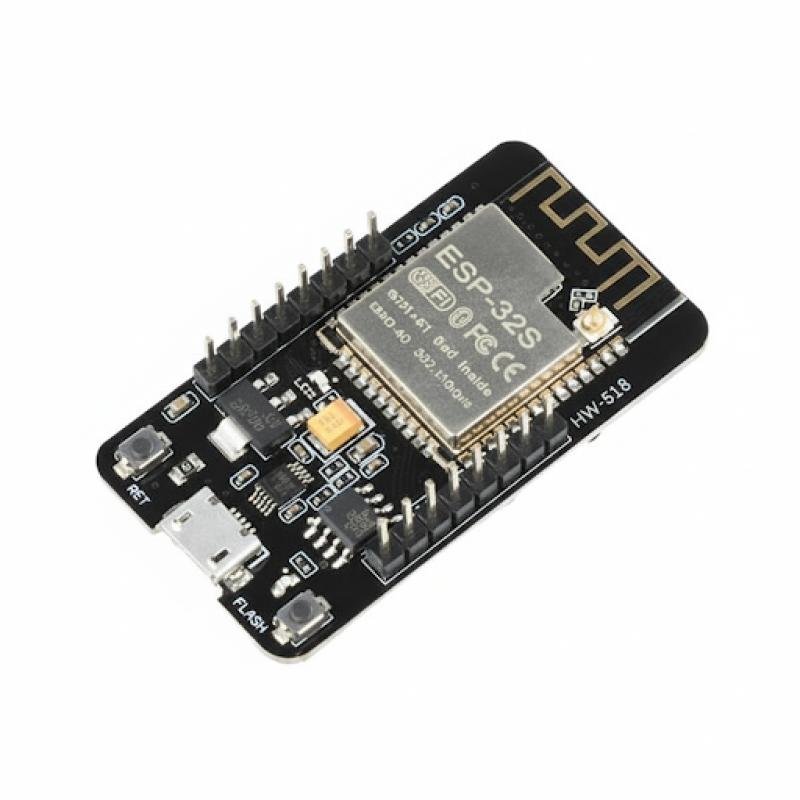

ESP32 CAM WiFi Bluetooth Camera Module With Micro USB Port
৳980

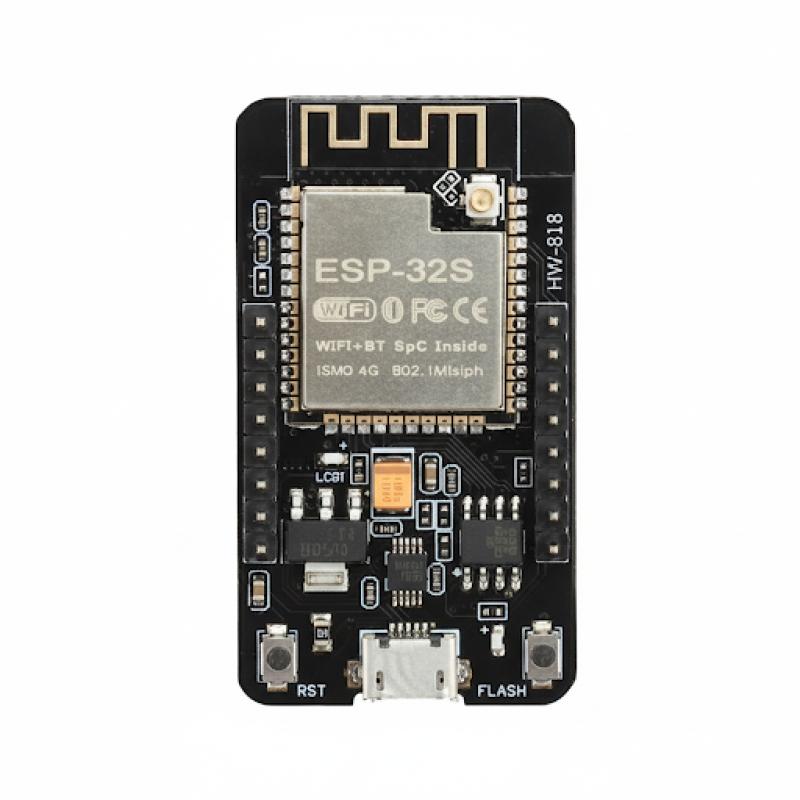

The ESP32 CAM WiFi Bluetooth Camera Module with Micro USB Port is a versatile IoT camera solution offering WiFi and Bluetooth connectivity, along with the ability to capture and stream images. Powered by the ESP32 chip, it integrates easily with Arduino and Raspberry Pi for real-time image processing, surveillance, and remote monitoring projects. The micro USB port makes it simple to power and connect to your system, while the built-in camera supports video streaming and motion detection applications. Widely used by Bangladeshi makers, engineers, and students, this module is ideal for creating smart home systems, security cameras, and wireless camera projects.

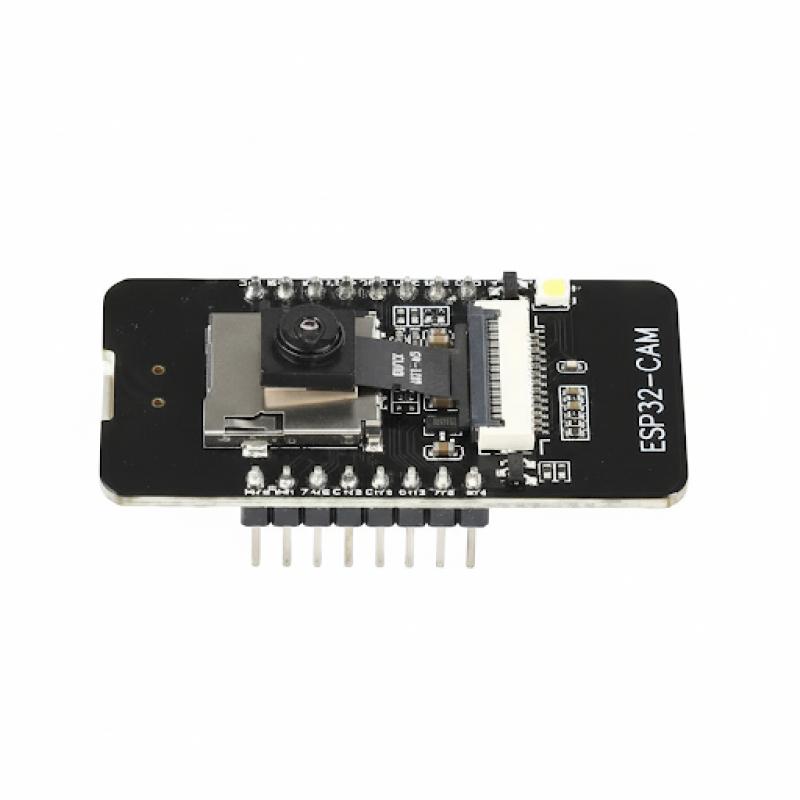

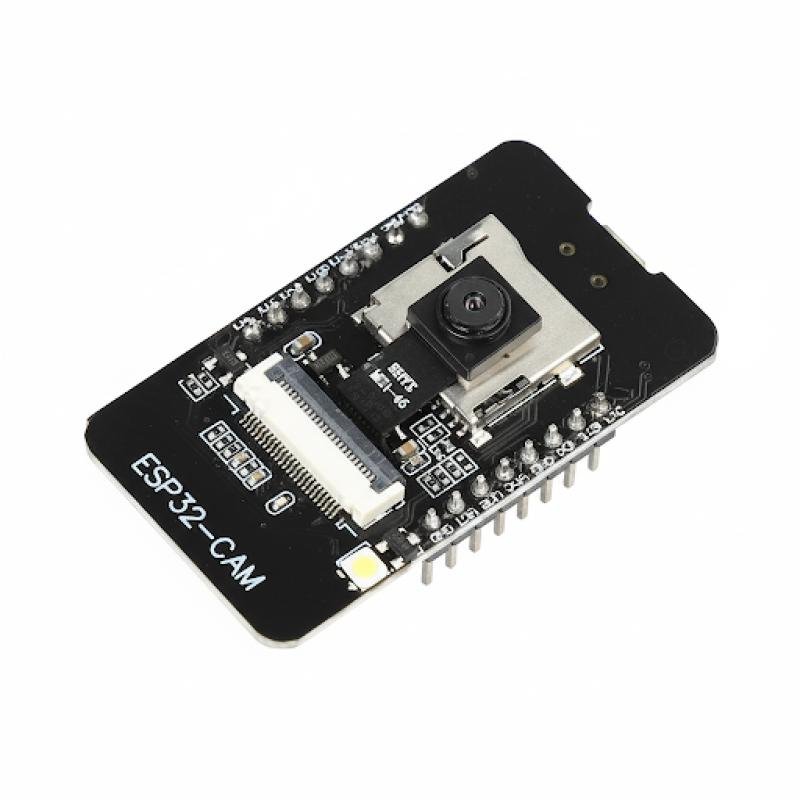

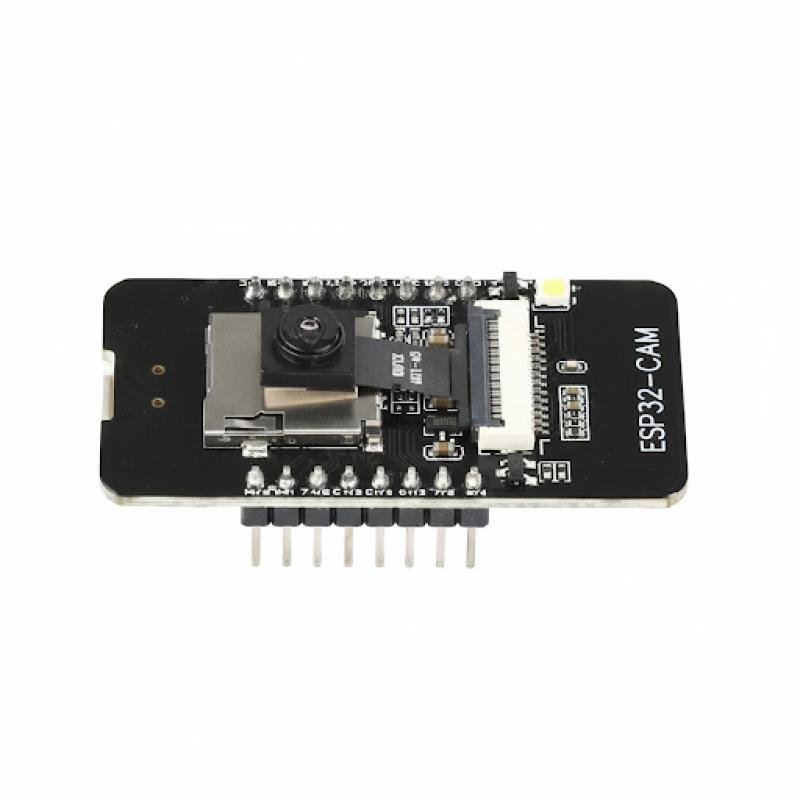

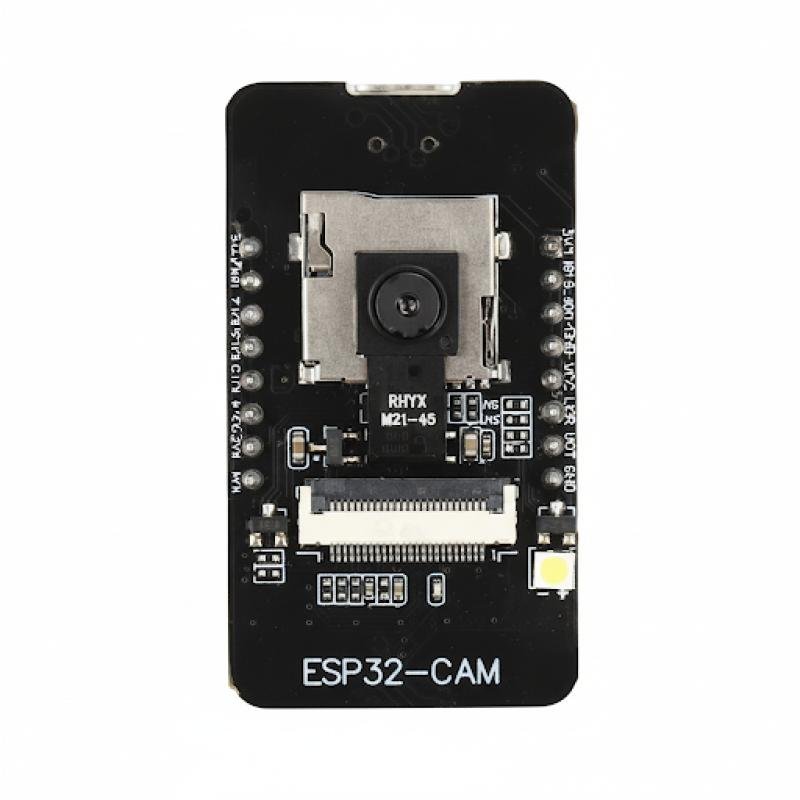

The ESP32-CAM is a compact, cost-effective development board powered by the ESP32-S chip, featuring built-in Wi-Fi and Bluetooth (BLE 4.2). It supports an OV2640 camera, onboard flash for low-light imaging, and TF card storage for expanded functionality.
Equipped with a dual-core processor running up to 240 MHz, 520 KB SRAM, 2 MB PSRAM, and 32 Mbit flash, the module is well-suited for real-time image capture, processing, and wireless transmission. It also provides a variety of standard interfaces, including UART, SPI, I²C, PWM, ADC, and DAC, making it highly versatile for IoT and embedded applications.
Additional features such as Smart Config, OTA (FOTA) updates, and multiple sleep modes enhance its suitability for low-power, wireless camera solutions.
Features:
- Ultra-small 802.11b/g/n Wi-Fi + BT/BLE SoC module
- Low-power dual-core 32-bit CPU for application processors
- Up to 240MHz, up to 600 DMIPS
- Built-in 520 KB SRAM, external 2M PSRAM
- Supports interfaces such as UART/SPI/I2C/PWM/ADC/DAC
- Support OV2640 and OV7670 cameras with built-in flash
- Support for images WiFI upload
- Support TF card
- Support multiple sleep modes
- Embedded Lwip and FreeRTOS
- Support STA/AP/STA+AP working mode
- Support Smart Config/AirKiss One-click distribution network
- Support for serial local upgrade and remote firmware upgrade (FOTA)
Package Includes:
1 x ESP32-CAM WiFi + Bluetooth Camera Module
Specification of ESP32 CAM WiFi Bluetooth Camera Module With Micro USB Port
Module Model | ESP32-CAM |
Custom IO Port | 9 |
SPI Flash | Default 32Mbit |
RAM | 520KB SRAM +2M PSRAM |
WIFI | 802.11 b/g/n/e/i |
Bluetooth Version | 4.2 |
Antenna Type | IPEX and PCB |
Input Supply Range (VDC) | 3.6 ~ 5 |
Current Dissipation (mA) | 180 |
Transmit Power (dBm) | 802.11b: 17±2 dBm (@11Mbps) |
Receiving Sensitivity | 54 Mbps (3/4 64-QAM): -70dBm |
UART Baudrate | Default 115200 bps |
Operating Temperature (°C) | -20 to 80 |
Security | WPA/WPA2/WPA2-Enterprise/WPS |

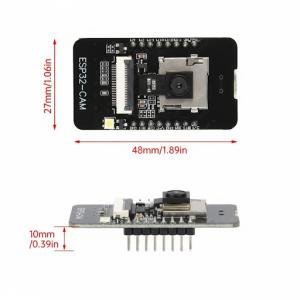

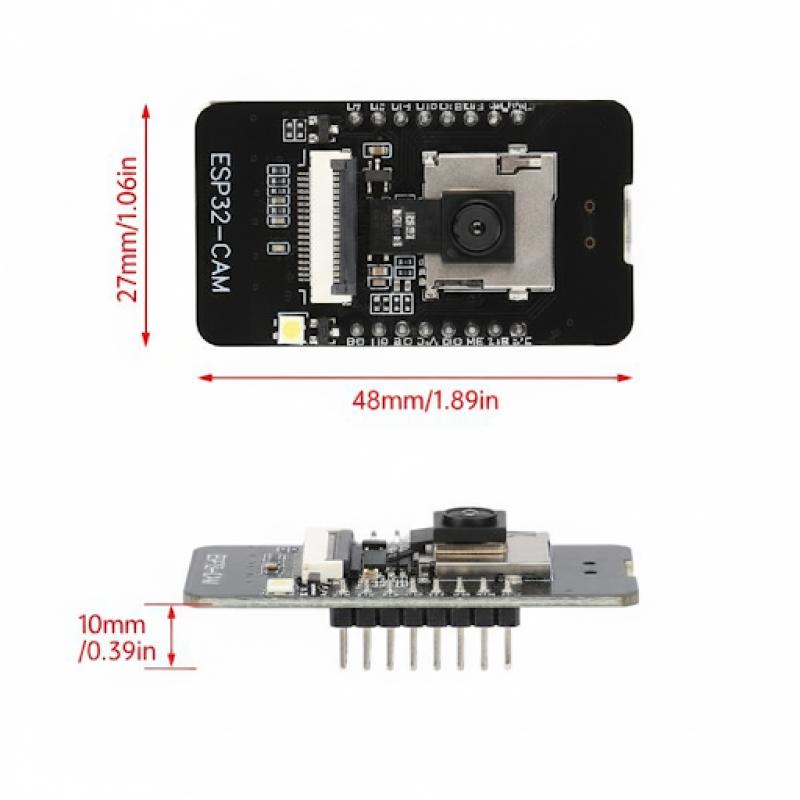

Length (mm) | 41 |
Width (mm) | 27 |
Height (mm) | 5 |
Weight (gm) | 8 |
Frequently Asked Questions
Yes, this ESP 32 has built in camera module
