Bi-Directional Micro 1S-2S 30A Brushed ESC
৳744
Feature | Details |
---|---|
MCU | STM32F745VGH6 (Cortex-M7, up to 216MHz) |
Gyroscopes | MPU6000 and ICM42688-P dual gyros |
Blackbox Storage | 512MB onboard flash |

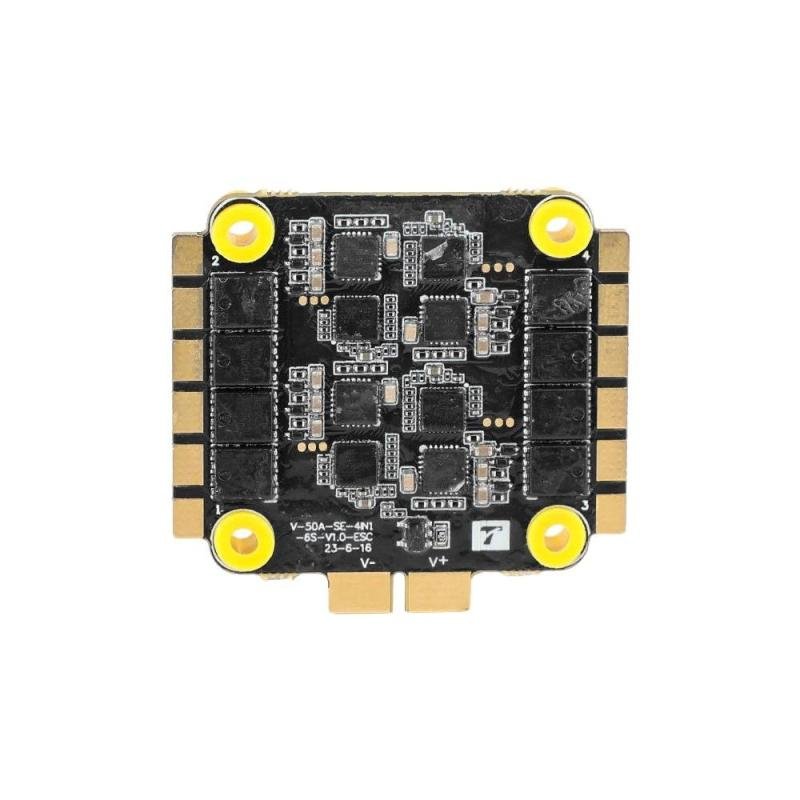

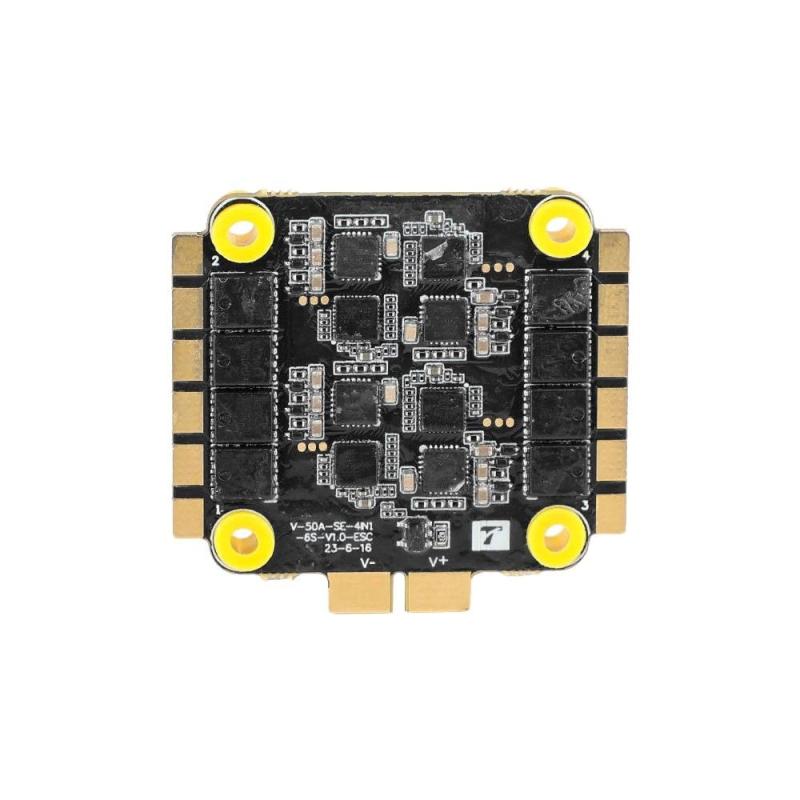

ESC | V50A SE 50A 6S 4-in-1 ESC |
BEC Outputs | Dual 5V@3A, 12V@3A |
Motor Outputs | 8 motor outputs (supports X8 configuration) |
UART Ports | 7 UART ports |
Barometer | Integrated barometer |
USB Interface | Type-C USB interface |
Bluetooth | Yes, for wireless parameter tuning |
Firmware Compatibility | Betaflight, INAV, Ardupilot |
Mounting Pattern | 30.5×30.5mm (M3) |
Weight | Approximately 10g |
Input Voltage | 3–6S LiPo (11.1–22.2V) |
Plug-and-Play | Yes, no soldering required |
