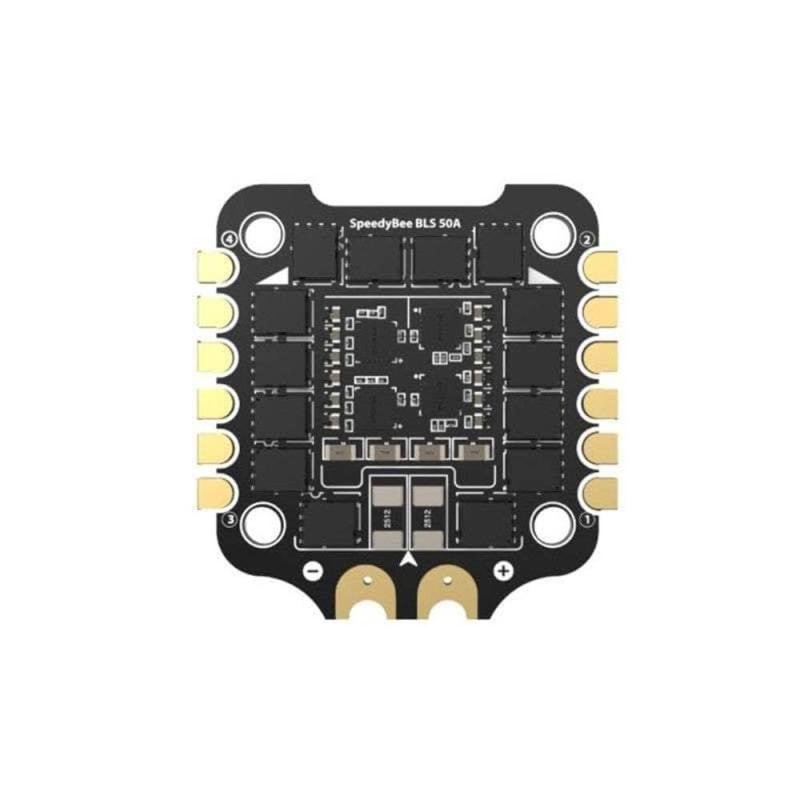

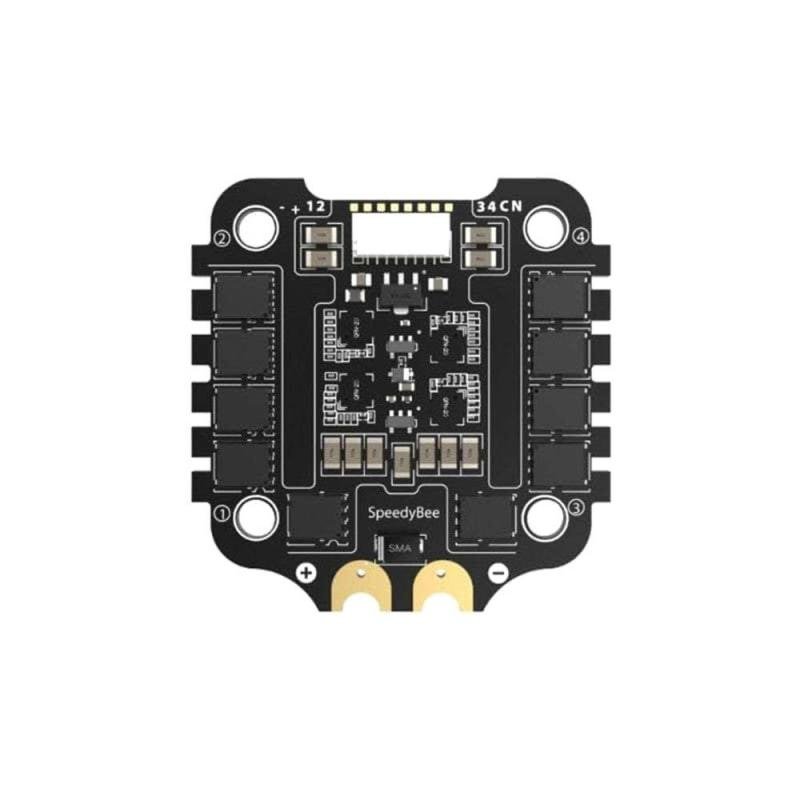

SpeedyBee 50A 3-6S BLHeli_S 4-in-1 ESC – 30×30
৳6000
A compact and powerful ESC designed for modern FPV enthusiasts. This 4-in-1 controller delivers high-current performance, smooth control, and advanced protection features—ideal for freestyle and racing drone builds.
| Specification | Details |
|---|---|
| Firmware | BLHeli_S JH50 |
| Continuous Current | 50 A × 4 motors |
| Burst Current | 55 A (at 5 S) |
| Voltage Input | 3–6 S LiPo battery |
| Voltage Output | VBAT |
| Current Sensing | Supported (Scale: 386, Offset: 0) |
| Protection | TVS diode for voltage spike protection |
| Capacitor Included | 1500 µF low-ESR capacitor |
| ESC Protocol | DShot 300/600 |

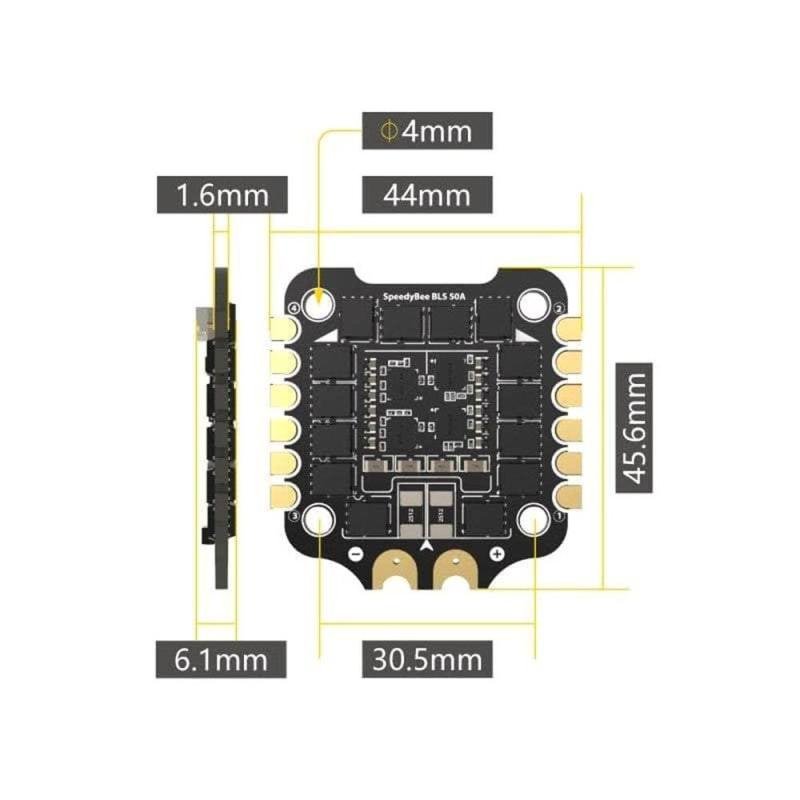

| Mounting Holes | 30.5 × 30.5 mm (4 mm diameter) |
| Dimensions | 45.6 × 44 × 6.1 mm |
| Weight | Approximately 13.8 g |
Why Pilots Love It
Reliable Performance: Delivers consistent, high-current output for demanding flight maneuvers.
Safe & Smooth Power Flow: Built-in protection and filtering ensure clean and stable operation.
User-Friendly Setup: Wireless tuning and large pads cut down setup time for racers and builders.
Compact Design: Fits snugly into 30×30 mm setups common in popular quad builds.
