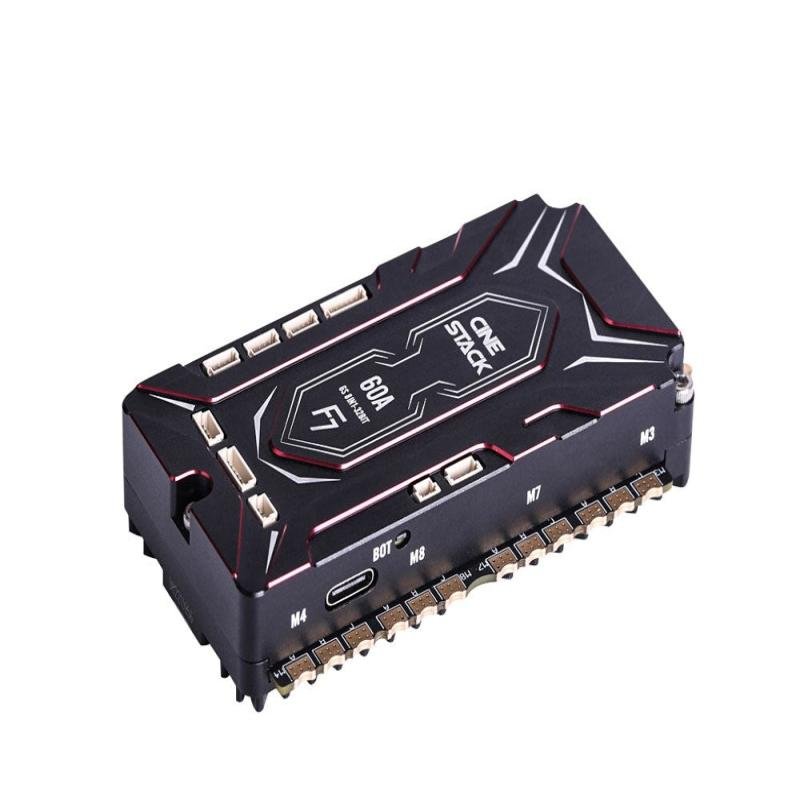

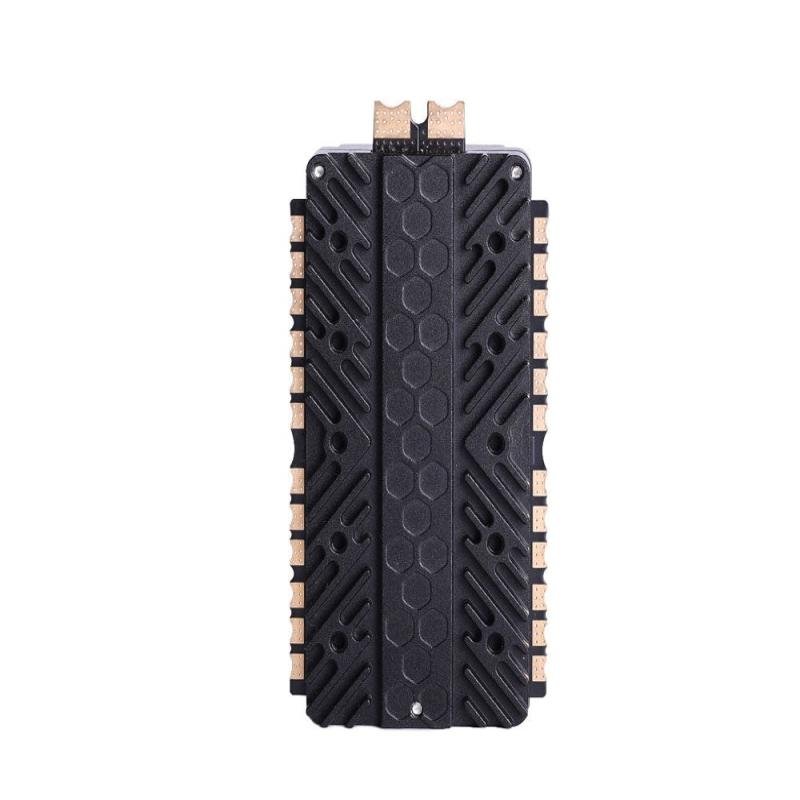

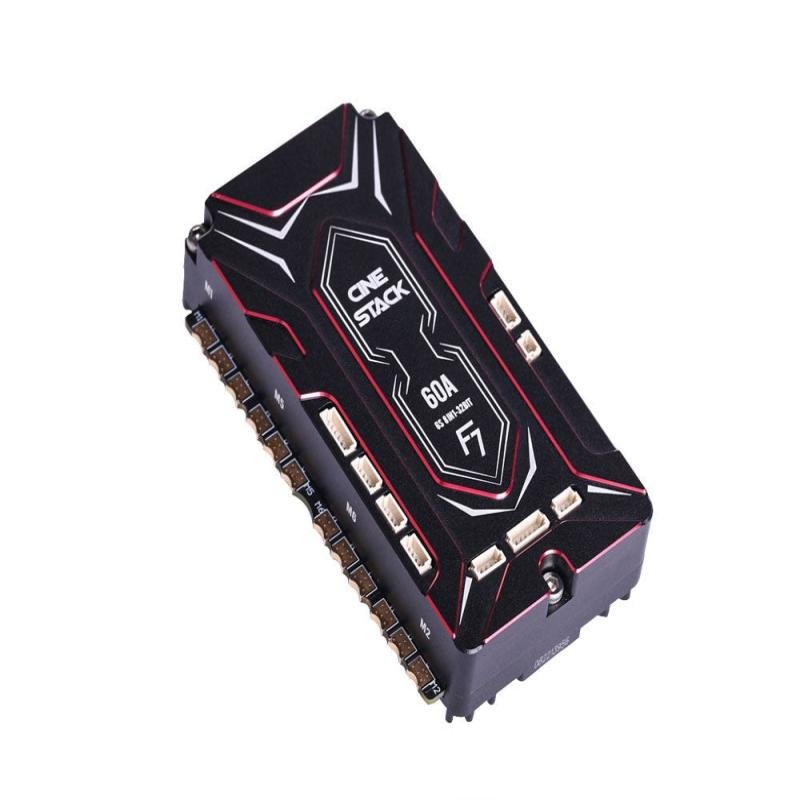

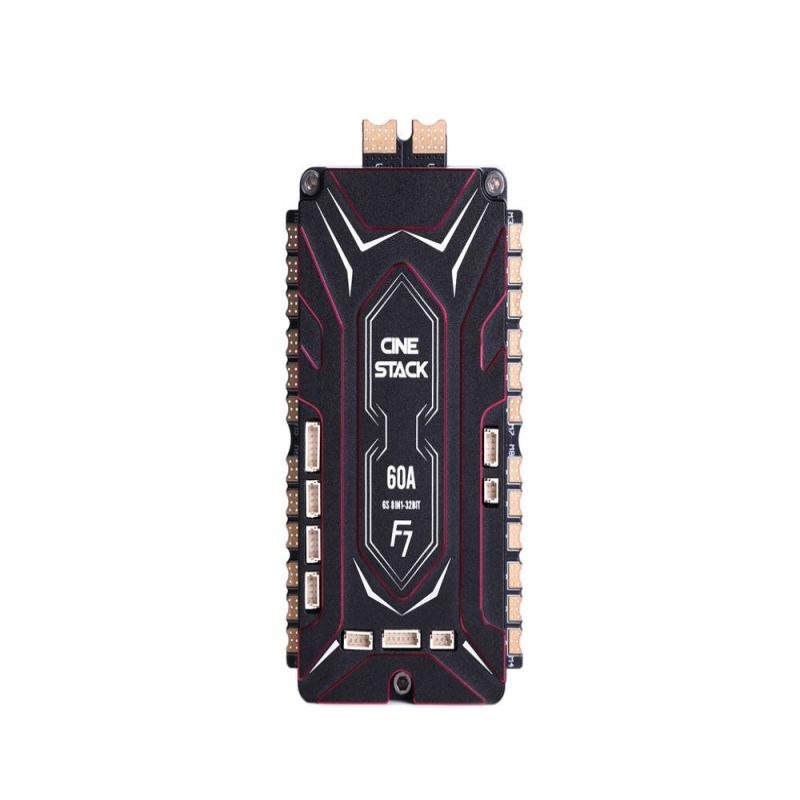

TMOTOR 8IN1 STACK CINE-F7-60A-6S STACK
৳72000
Elevate your drone's performance with the T-Motor 8-in-1 Cine F7 60A Stack. Designed for enthusiasts seeking high power and reliability, this stack combines advanced flight control with robust ESC capabilities. Whether you're into freestyle, racing, or cinematic FPV, this stack ensures smooth flight dynamics and exceptional durability.
| Component | Specification |
|---|---|
| Flight Controller (FC) | |
| Model | T-Motor F7 |
| Processor | STM32F722 |
| Gyroscope | MPU6000 |
| Barometer | DPS310 |
| Power Supply | 3~6S LiPo |
| BEC Output | 5V/2A, 12V/2A |
| OSD | Betaflight OSD |
| Blackbox Storage | 16MB Flash Memory |
| UART Ports | 6 Sets |
| USB Port | Type-C |
| Mounting Holes | 30.5x30.5mm, Φ4mm |
| Dimensions | 50.5x96x23mm |
| Weight | 101g |
| Wireless | Bluetooth |
| PWM Frequency | 128KHz |
| ESC (X8 60A) | |
| Model | T-Motor X8 60A 8-in-1 ESC |
| Firmware | BLHeli_32 |
| Continuous Current | 60A per ESC |
| Burst Current | 70A per ESC |
| Input Voltage | 3~6S LiPo |
| BEC Output | None |
| Telemetry | Supported |
| Signal Protocols | DShot 150/300/600/1200, MultiShot, OneShot |
| Mounting Holes | 30.5x30.5mm, Φ4mm |
| Dimensions | 50.5x96x23mm |
| Weight | 101g |
