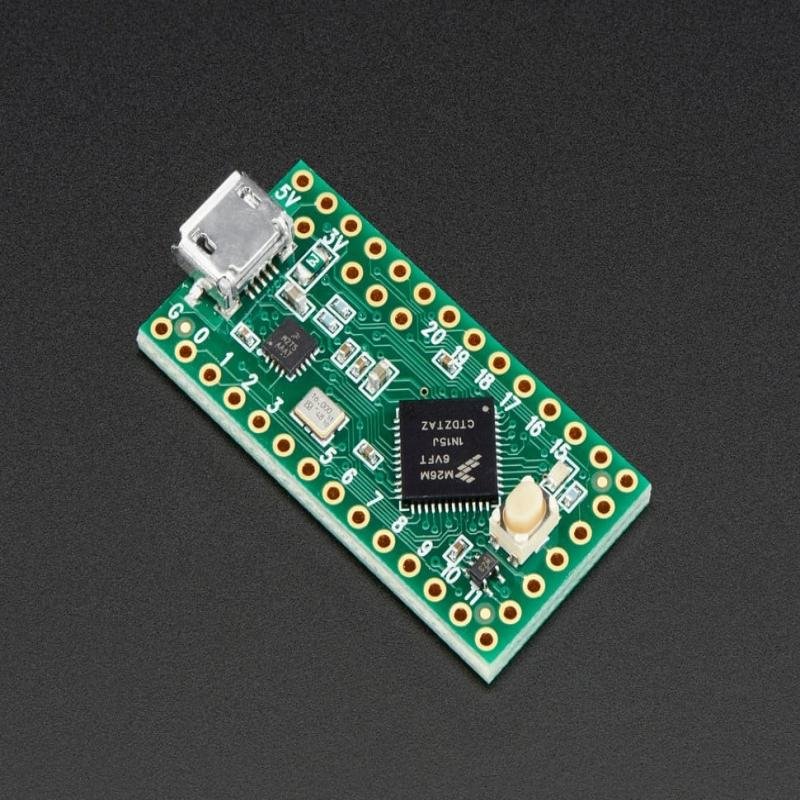

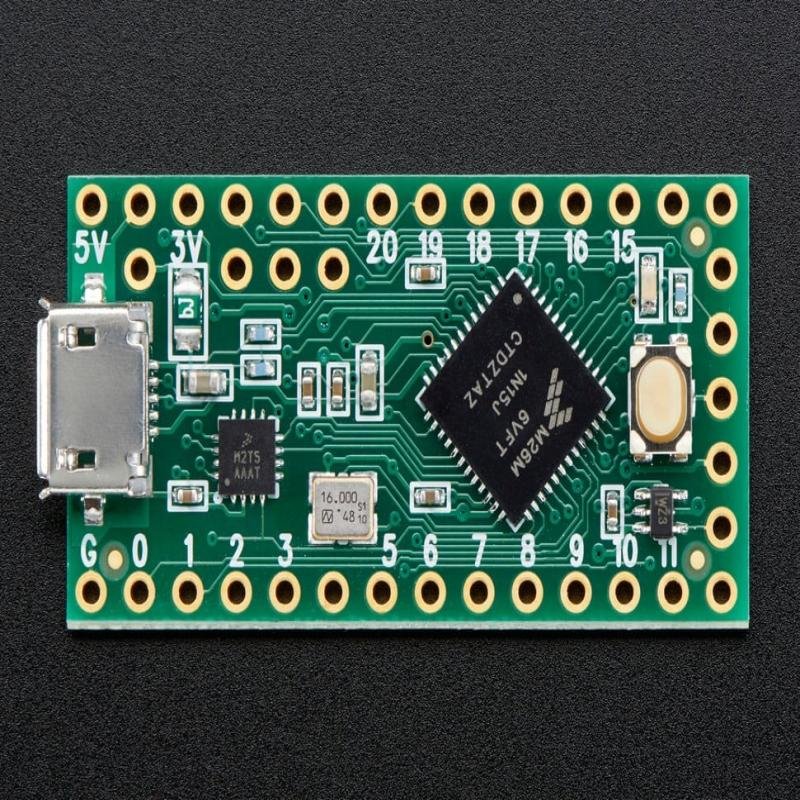

Teensy-LC Without Pins
৳3840
The Teensy LC Without Pins is a compact and affordable microcontroller board designed for embedded projects requiring a 32-bit ARM Cortex-M0+ processor. Manufactured by PJRC, this board offers a balance between performance and cost, making it suitable for various DIY and professional applications.
Categories:
Electronics Products
/
Development Board
/
Microcontrollers
Brand:
Made in China
SKU: Available
Key Specifications
Processor: ARM Cortex-M0+ at 48 MHz
Flash Memory: 62 KB
RAM: 8 KB
Analog Input/Output: 12-bit resolution
Digital I/O Pins: 27 (not 5V tolerant)
PWM Outputs: 10
Serial Interfaces:
3 UARTs
2 SPI
2 I²C
I²S for audio
USB Support: USB Serial, MIDI, Keyboard, Mouse, Joystick, RawHID
Power Supply: 3.3V logic level
Dimensions: 18mm x 37mm x 4mm
For detailed specifications and pinouts, refer to the official PJRC documentation:
PJRC
.
Applications
The Teensy LC is ideal for projects such as:
Sensor Integration: Connecting and processing data from various sensors.
Actuator Control: Driving motors, servos, or other actuators.
USB Devices: Creating custom USB devices like keyboards or MIDI controllers.
Audio Processing: Utilizing the I²S interface for audio applications.
Prototyping: Developing and testing embedded systems.
