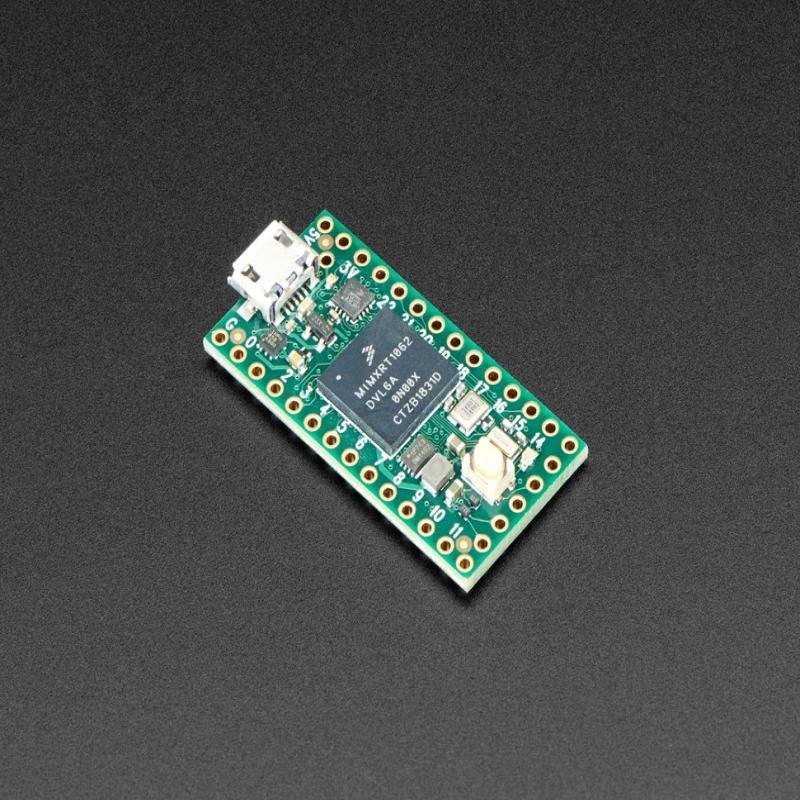

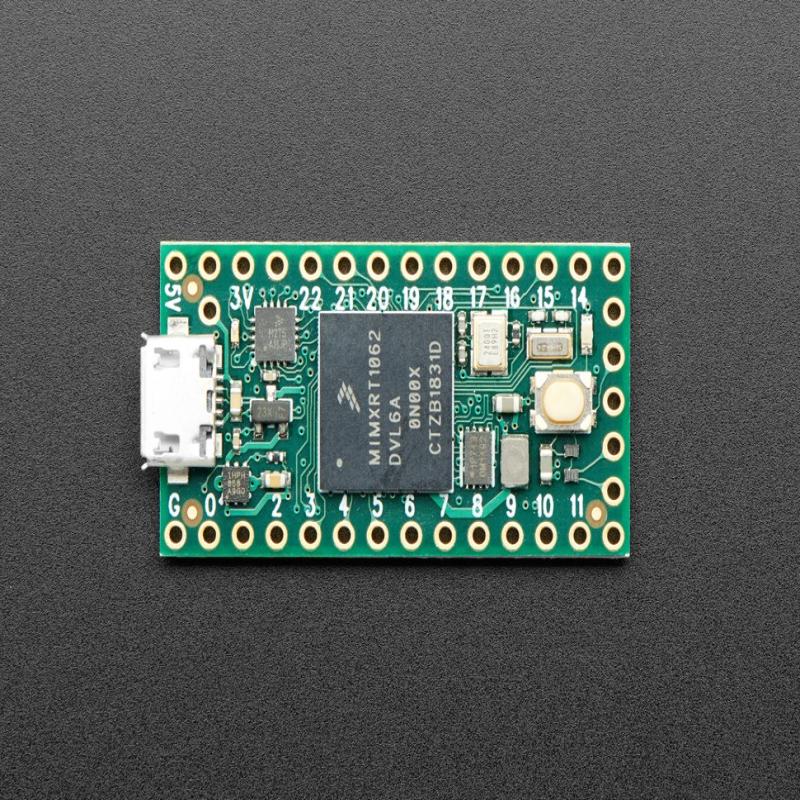

Teensy 4.0 USB Development Board
৳10560
The Teensy 4.0 USB Development Board is a compact yet powerful microcontroller board designed for high-performance embedded applications. Manufactured by PJRC, it features the NXP iMXRT1062 ARM Cortex-M7 processor running at 600 MHz, making it one of the fastest microcontrollers available today
Categories:
Electronics Products
/
Development Board
/
Microcontrollers
Brand:
Made in China
SKU: Available
Key Specifications
Processor: ARM Cortex-M7 at 600 MHz
Microcontroller: NXP iMXRT1062
Flash Memory: 2048 KB (with 64 KB reserved for recovery and EEPROM emulation)
RAM: 1024 KB (512 KB tightly coupled)
Digital I/O Pins: 40, all interrupt-capable
Analog Input Pins: 14
PWM Pins: 31
Serial Interfaces:
7 UARTs
3 SPI (all with 16-word FIFO)
3 I2C (all with 4-byte FIFO)
3 CAN Bus (1 with CAN FD)
2 I2S Digital Audio
1 S/PDIF Digital Audio
1 SDIO (4-bit) native SD
USB Ports: 2, both 480 Mbit/sec
DMA Channels: 32 general-purpose
Clock Scaling: Supports dynamic clock scaling with Arduino timing functions
Power Management: Includes a power shut-off feature; can be powered off and on via an external pushbutton
RTC: Real-Time Clock (RTC) continues to operate when powered off if a coin cell is connected to VBAT
