SpeedyBee F405 WING Fixed Wing Flight Controller
৳7,826

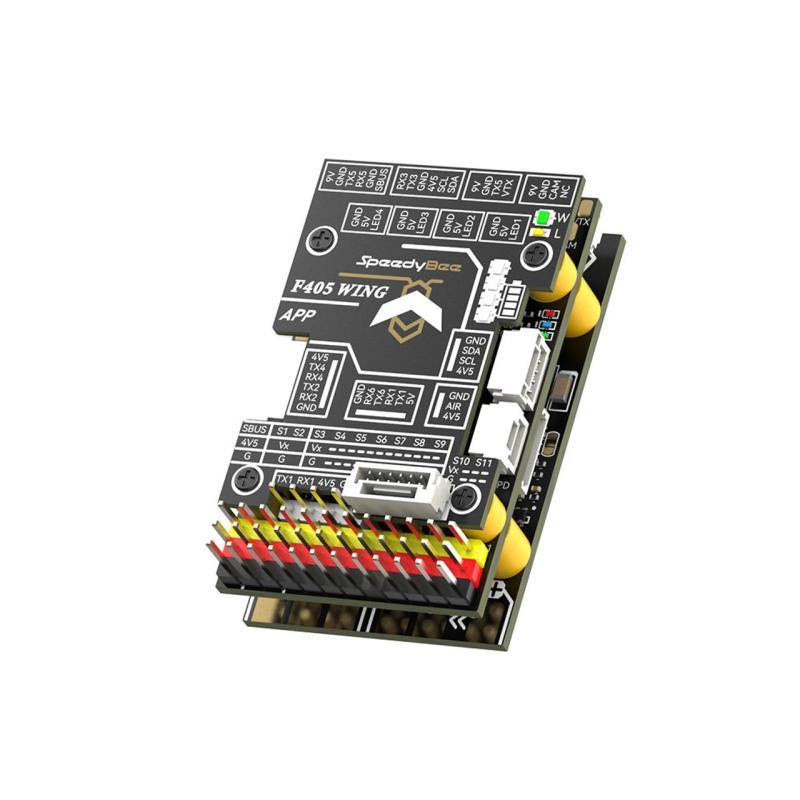

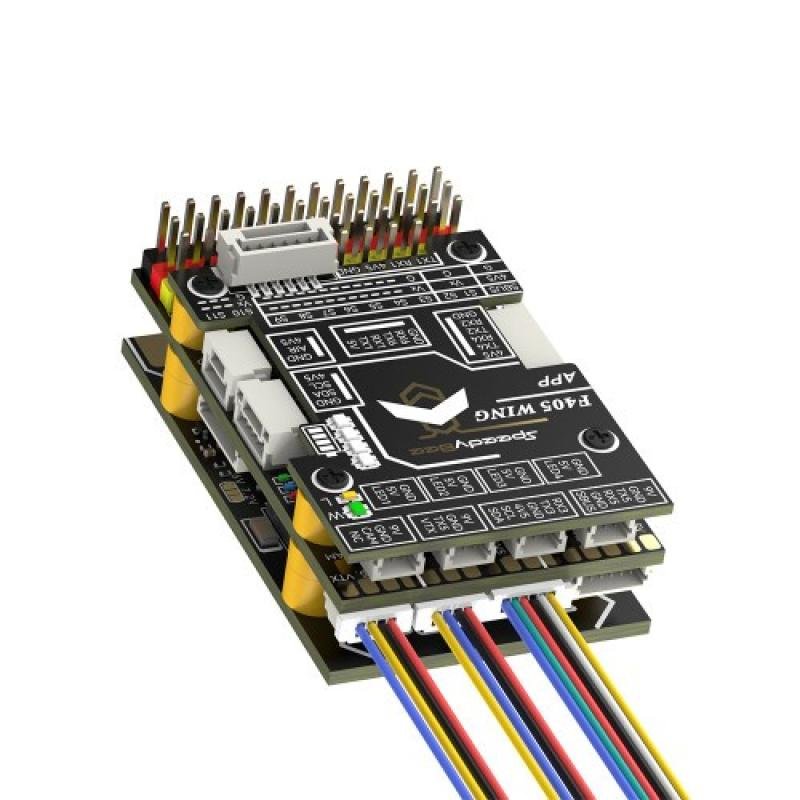

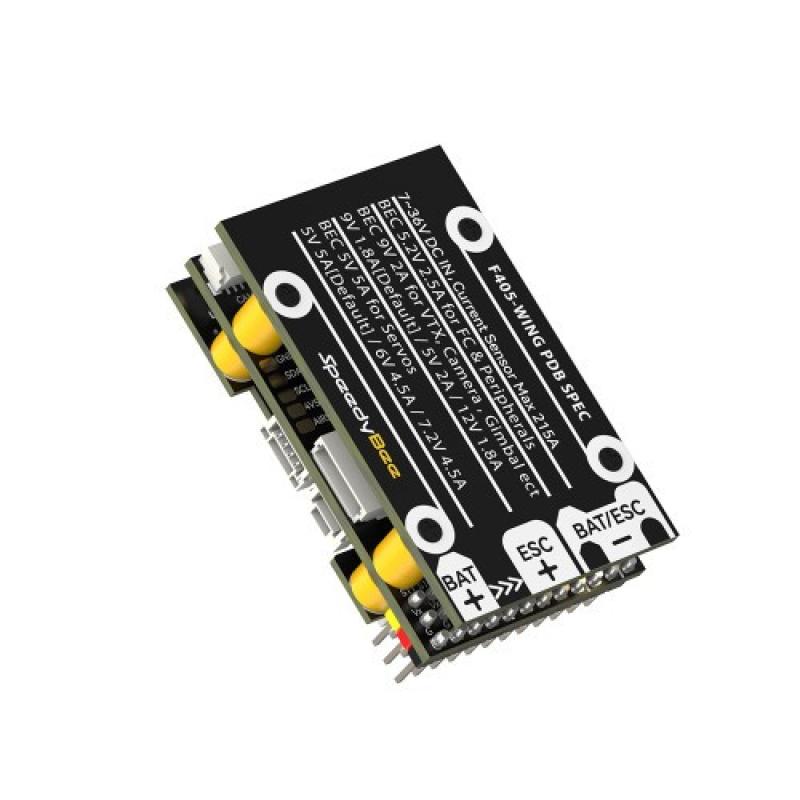

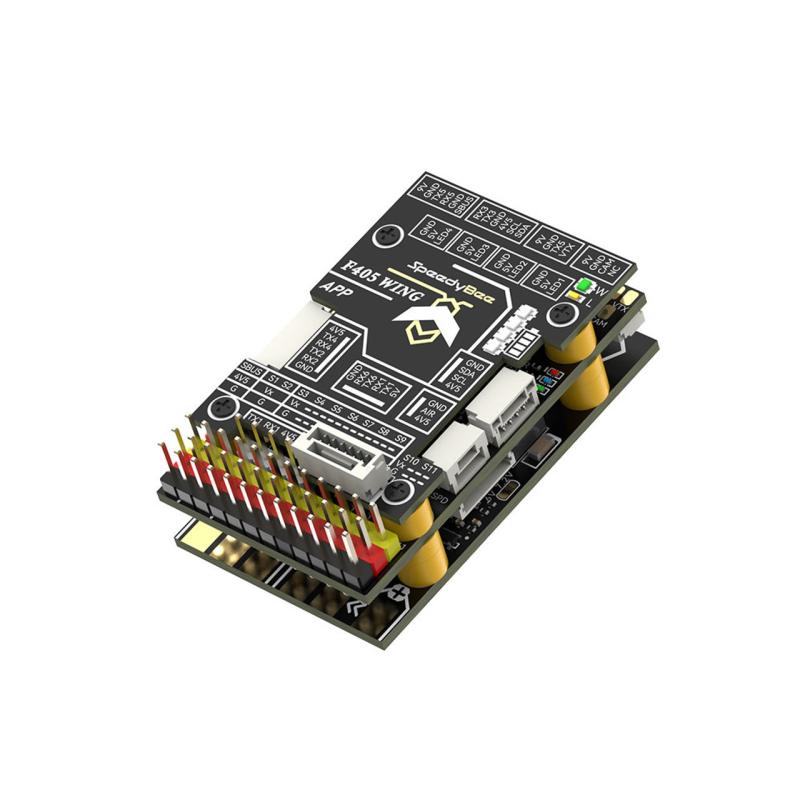

The SpeedyBee F405 WING Fixed Wing Flight Controller is a high-performance flight controller designed specifically for fixed-wing aircraft. Built around the STM32F405 microcontroller and featuring the ICM-42688-P gyroscope, this flight controller offers seamless integration with various peripherals, making it ideal for both beginners and experienced pilots.
| Feature | Details |
|---|---|
| MCU | STM32F405 (168MHz, 1MB Flash) |
| Gyroscope | ICM-42688-P |
| Barometer | SPL006-001 |
| OSD Chip | AT7456E |
| Blackbox | MicroSD card slot |
| UART Ports | 6 (USART1, USART2, USART3, UART4, UART5, UART6) |
| I2C Port | 1 (for magnetometer, digital airspeed sensor) |
| ADC Channels | 4 (VBAT, Current, RSSI, Analog AirSpeed) |
| PWM Outputs | 12 (11 + 1 “LED” pad) |

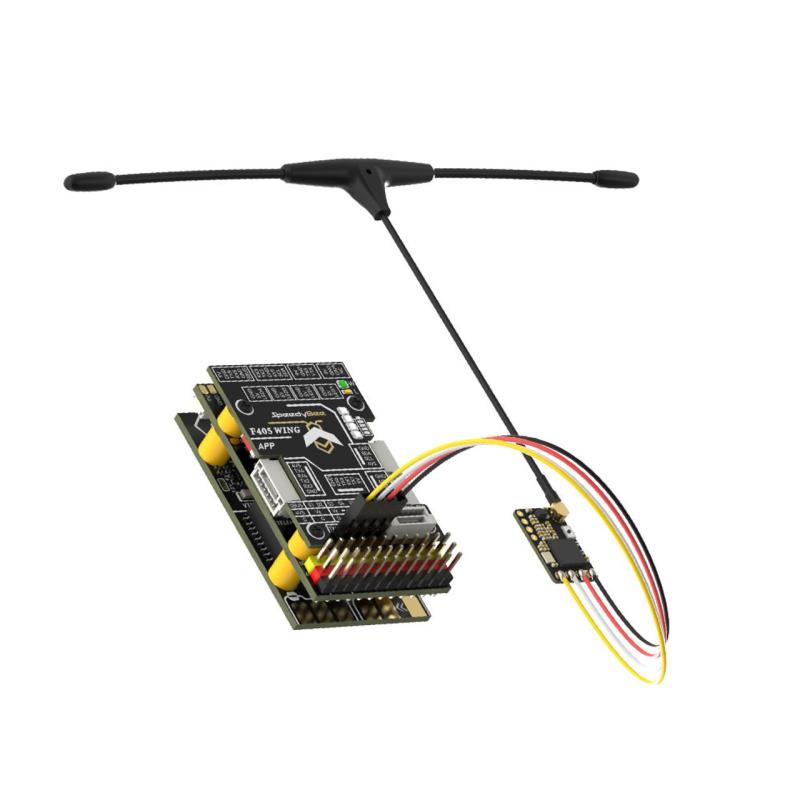

| Receiver Support | ELRS/CRSF (connected to UART1), SBUS (inverter for SBUS input on UART2-RX) |
| LED Indicators | 3x LEDs (Blue, Green, Red) for FC status and 3.3V indicator, 1x RGB LED |
| Firmware Support | INAV: SpeedyBeeF405WING |
| Dimensions | 36.5×36.5×7.0 mm |
| Weight | 5.6g |
