SIM800L GSM GPRS Module
৳375
The SIM800L GSM GPRS Module is a compact and versatile solution for seamless wireless communication. It supports GSM, GPRS, SMS, and voice call functionalities, making it an ideal choice for various IoT projects, including remote monitoring, automation, and telecommunication applications. Whether you're building a smart home system or a remote sensor network, this module ensures reliable 2G connectivity. The SIM800L is highly suitable for the Bangladesh market, offering an affordable and dependable solution for your communication needs.
The SIM800L is a compact and cost-effective GSM/GPRS module that enables cellular connectivity for embedded projects. It supports quad-band frequencies, making it compatible with networks worldwide, and offers features such as GPRS data transmission, SMS messaging, and voice calls. Designed with a small footprint, it is ideal for applications requiring reliable long-range communication.
Once powered, the module automatically boots, searches for available cellular networks, and registers seamlessly. An onboard LED indicates network status: fast blinking for no coverage and slow blinking when connected. The SIM800L operates at 3.8–4.2V with a peak current requirement of up to 1A.
Specification:
- Chip: SIM800L
- Supply voltage: 4.8V - 5.0V
- Recommended Supply Voltage: 5V
- Sleep mode < 2.0mA
- Idle mode < 7.0mA
- GSM transmission (avg): 350 mA
- GSM transmission (peek): 2000mA
- Module size: 25 x 23 mm
- Interface: UART (max. 2.8V) and AT commands

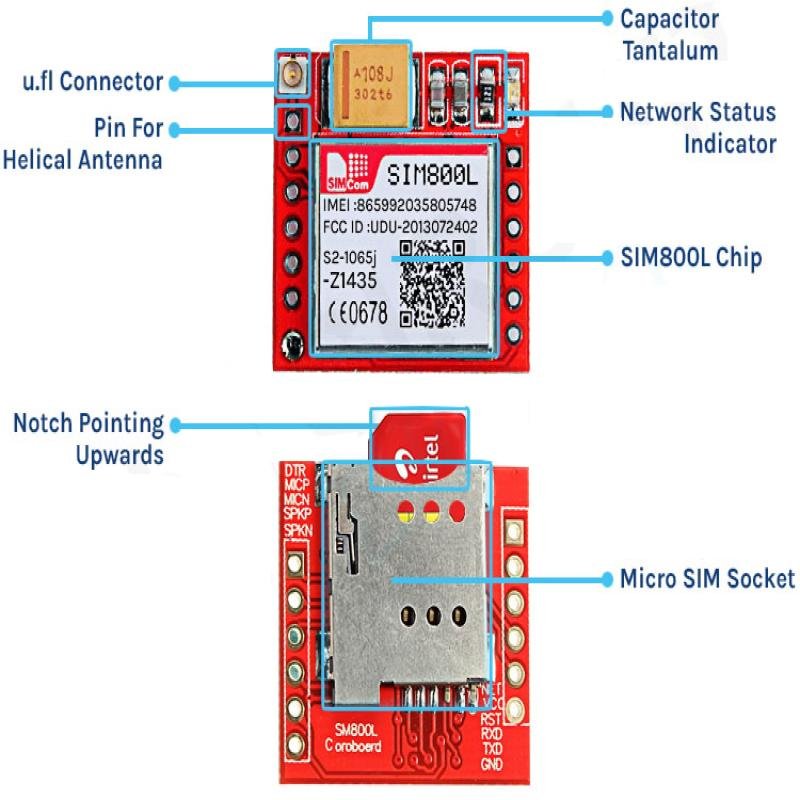

- SIM card socket: Micro SIM (Bottom side)
- Supported frequencies: Quad Band (850 / 950 / 1800 /1900 MHz)
- Antenna connector: IPX
- Status signaling: LED
- Working temperature range: -40 do + 85 ° C

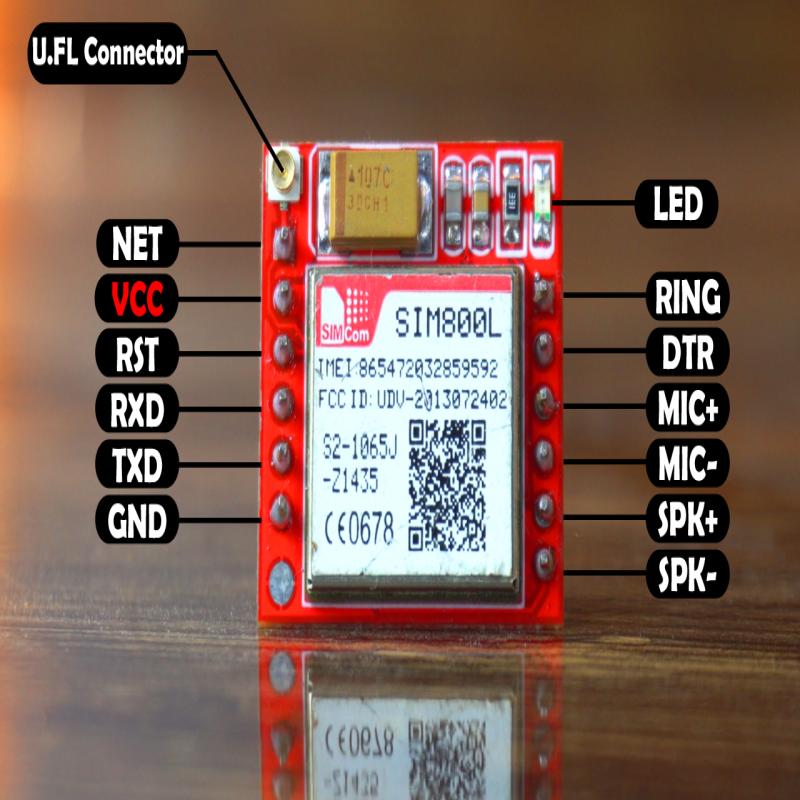

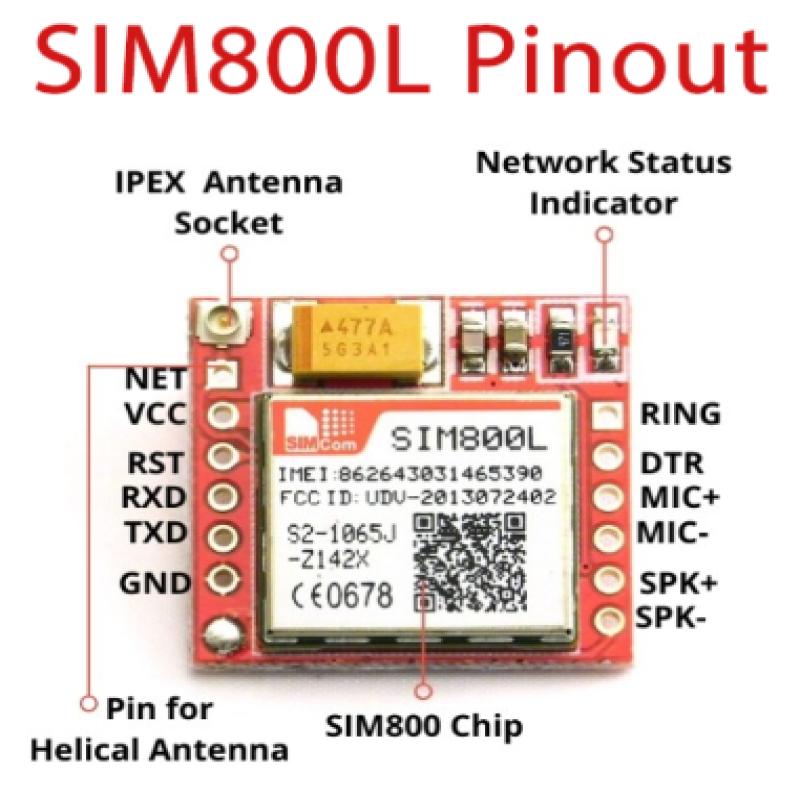

Pinout (Bottom Side Left):
- RING (not marked on PBC, first from top, square) - LOW state while receiving call
- DTR - sleep mode. Default in HIGH state (module in sleep mode, serial communication disabled). After setting it in LOW the module will wake up.
- MIC +, MIC -Microphone
- SPK +, SPK- Speaker
Pinout (Bottom Side Right):
- NET - Antenna
- VCC - Supply Voltage
- RST - Reset
- RXD - Serial communication
- TXD - Serial communication
- GND - Ground
Applications
- Home Alarm System: When a motion sensor detects a movement of an intruder, an SMS will be sent to a predefined number which could be you or your security reaction company and a siren or any other sound device could be triggered in the process as well.
- Remote Controlling System: A mobile phone can be used to Send an SMS to switch ON/OFF remote devices. You could control your entire home devices, switching ON/OFF lights, fans, pool motor, garage motor and so on with just a simple SMS from a distance.
- Security Access Control: A security access can be implemented at apartments or housing complexes. A security guard could inform by intercom a resident if he/she has a visitor at the main gate. with a replied SMS, the resident could open remotely the gate for his/her visitor.
- Remote System Monitoring: In a remote system monitoring application, a Microcontroller for example could be used to constantly monitor the status of a remote sensors, let say temperature or moisture sensors. If a certain condition is reached, the program will send an SMS to notify the situation.

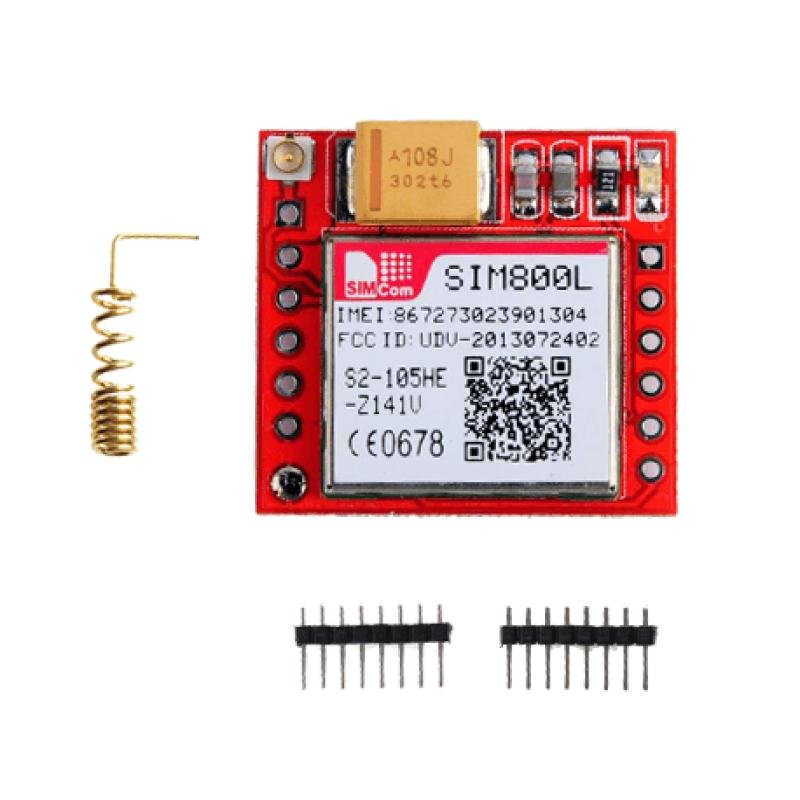

Package Included:
1 X SIM800L GSM/GPRS Module
1 X Antenna
1 X Pin header set (Soldered)
