RTC EEPROM Module DS3231
৳360
The DS3231 RTC EEPROM Module offers high-accuracy timekeeping with a built-in temperature-compensated crystal oscillator. It also includes onboard EEPROM for storing configuration or project data. Ideal for Arduino, Raspberry Pi, and microcontroller applications such as data logging, alarms, and scheduling systems in Bangladesh, this module ensures your projects keep perfect time even during power loss.
Categories:
Electronics Products
/
Sensors
/
IoT & Home Automation
Brand:
Made in China
SKU: Available

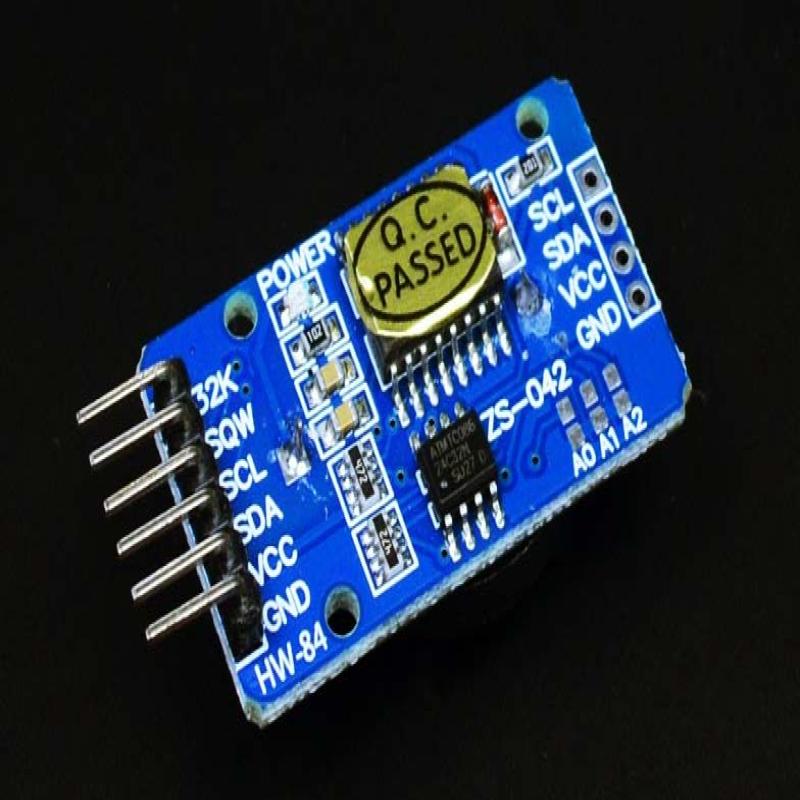

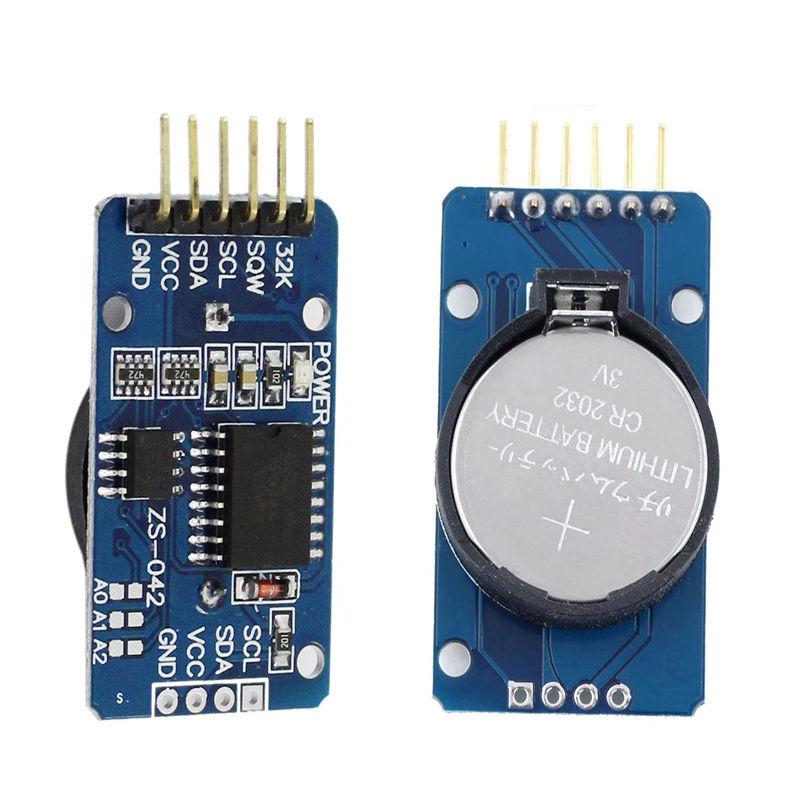

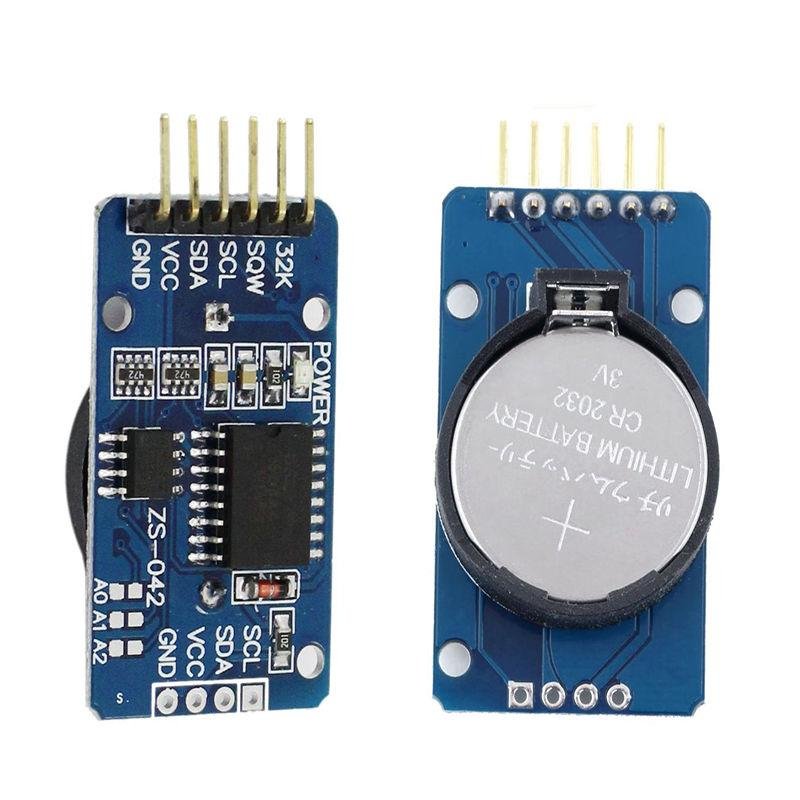

The DS3231 RTC EEPROM module is a high-accuracy real-time clock with battery backup, ensuring precise timekeeping even during power loss. It features a 4K × 8-bit EEPROM for data storage and communicates via the I²C interface, making it ideal for logging, scheduling, and embedded system applications.
Highly accurate timekeeping with temperature compensation
Provides seconds / minutes / hours / date / day of week and year with leap-year compensation
12 / 24 hour formats
Two programmable time-of-day alarms
Programmable square wave output
Digital temperature sensor
AT24C32 4K x 8-bit EEPROM non-volatile memory
CR2032 battery backup (included)
I2C interface
Power LED
3.3 and 5V compatible
Packing Includes:
1 X RTC EEPROM Module DS3231
Note: Battery is included with the package.If You have to buy it seperately from here.
