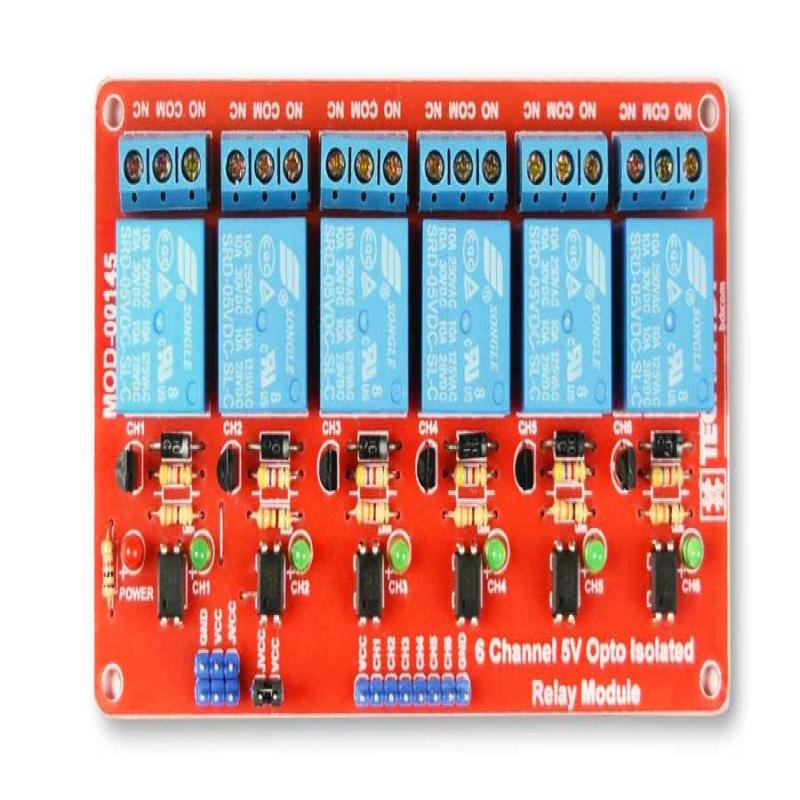

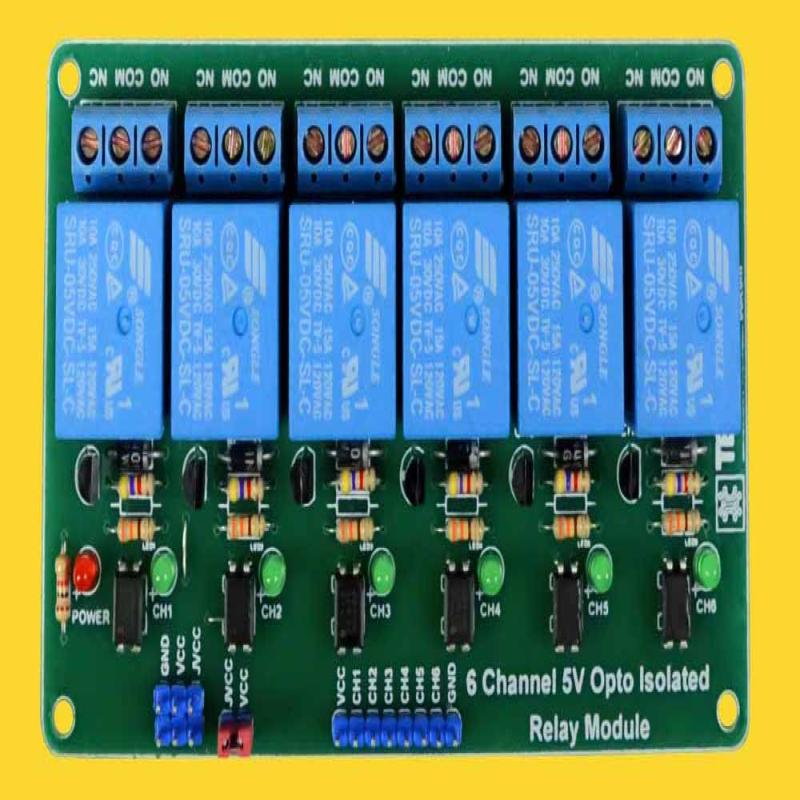

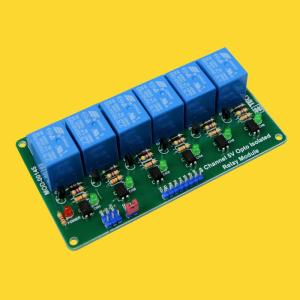

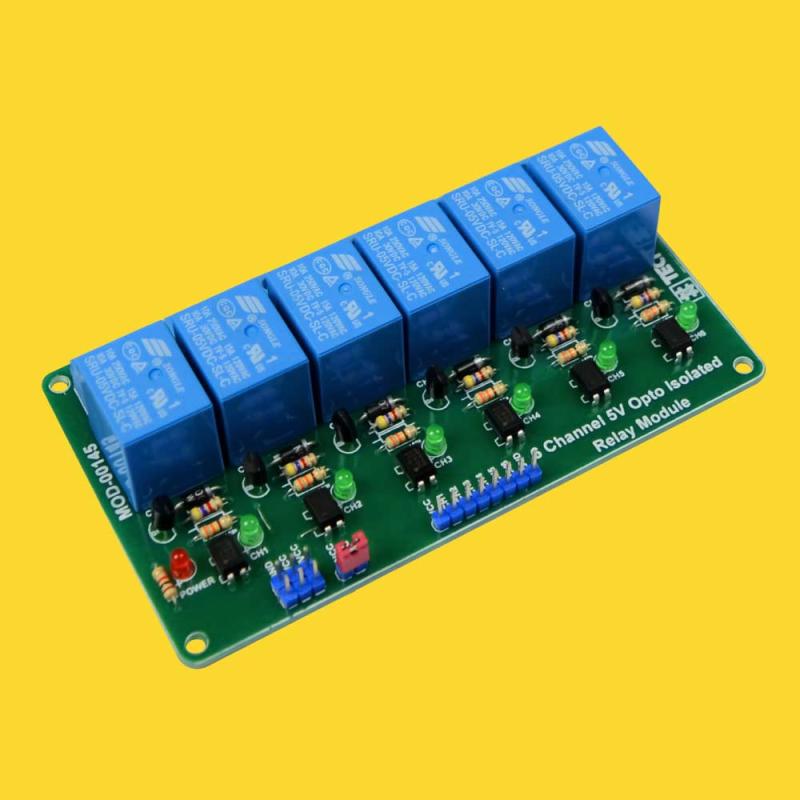

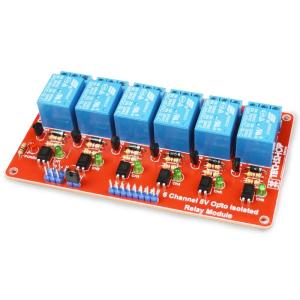

Opto Isolated Relay Module 6 Channel 5V
৳680
The 6 Channel 5V Opto Isolated Relay Module is a versatile switching board designed for safe and reliable control of AC and DC devices. Featuring opto-isolator protection on each channel, it provides better electrical isolation between low-voltage microcontrollers (like Arduino, Raspberry Pi, ESP32) and high-voltage loads, reducing interference and improving safety. Ideal for home automation, IoT systems, robotics, and industrial control projects, this module can switch lights, fans, pumps, and motors with ease. Widely used by engineers, hobbyists, and students in Bangladesh, it comes with LED indicators, screw terminals, and durable PCB construction for long-lasting performance.
Categories:
Electronics Products
/
Sensors
/
IoT & Home Automation
/
Others
Brand:
Made in Bangladesh
SKU: Available
6 Channel 5V Opto Isolated Relay Module is a simple relay board. 6 channel relay board works from a 5V supply to JVCC for the relays and 0V for the switching signal to relays activate. It uses a transistor to drive the relay & optocoupler used to separate the output. Using these relay board you can easily control high power DC 30V/AC 250V devices or appliances using arduino or microcontroller. It can be connected directly to a microcontroller pin. It has 3 pin terminals each relay output NO COM NC. NO normally open with relay common pin. NC Normally connected with common.
- 6 Independently Controlled Relays
- Operating Voltage: 5V
- Power Indication: Red LED
- Relay Output Status: Blue LED CH1, CH2, CH3, CH4, CH5, CH6
- Board Dimension: 114.30 x 65 mm (4.5 x 2.55 Inch)
- Mounting Holes: 107.00 x 57.15 mm (4.21 x 2.25 Inch)
- Each relay output capacity: 220VAC / 10A
- Three Terminal Output AC DC Control (NO COM NC)
- Single Pole Double Throw Relay Output (SPDT)
- Relay current consumption at 5V is 72mA each when switched on
- Back EMF protection
- VCC GND JCC Header for other board power supply
