Line Follower Sensor Array 5 Infrared Analog IR Sensor Array
৳680
The Line Follower Sensor Array 5 Infrared Analog IR Sensor Array is an essential component for building robots that can follow a line with precision. This sensor array features five infrared sensors arranged for accurate line detection and tracking, making it perfect for robotics, automation, and educational projects. Its analog output ensures smooth tracking capabilities, and the design allows for easy integration into various robotic systems. Whether you’re building a robot for a competition, a DIY project, or a research application, this IR sensor array offers high reliability and excellent performance for robotics enthusiasts in Bangladesh.

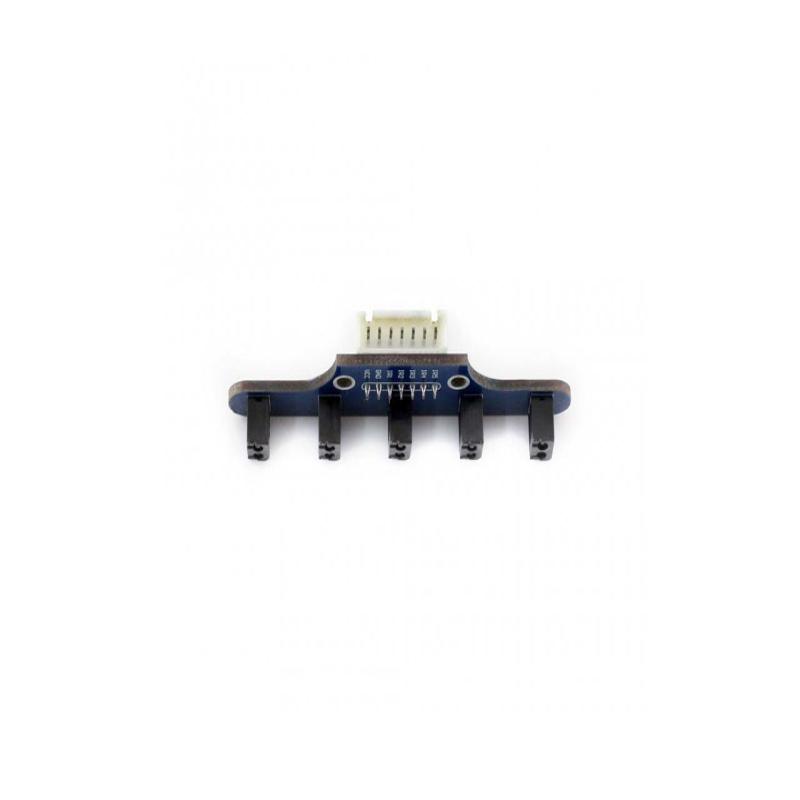

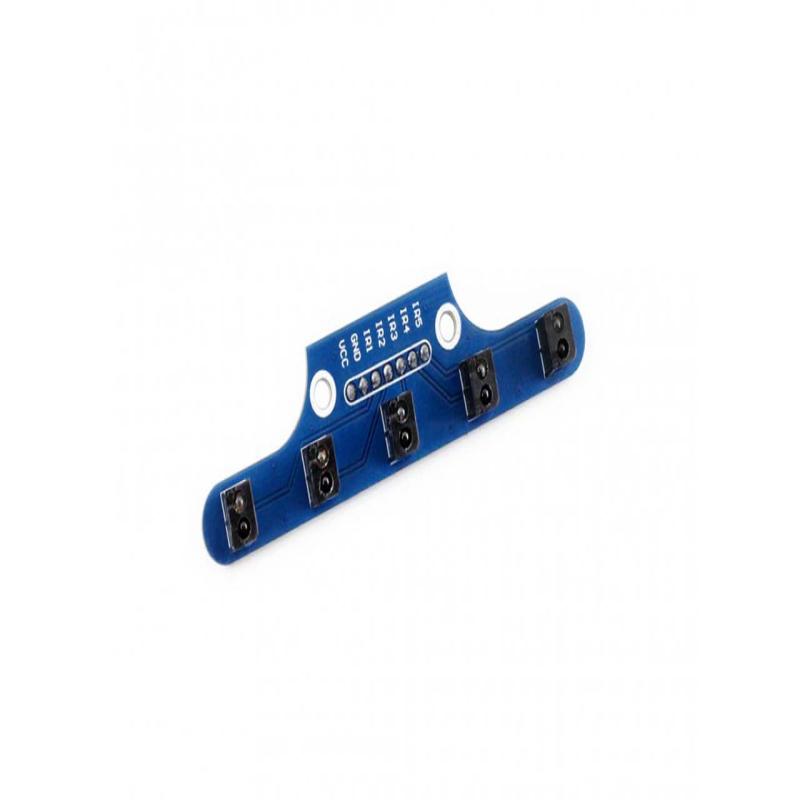

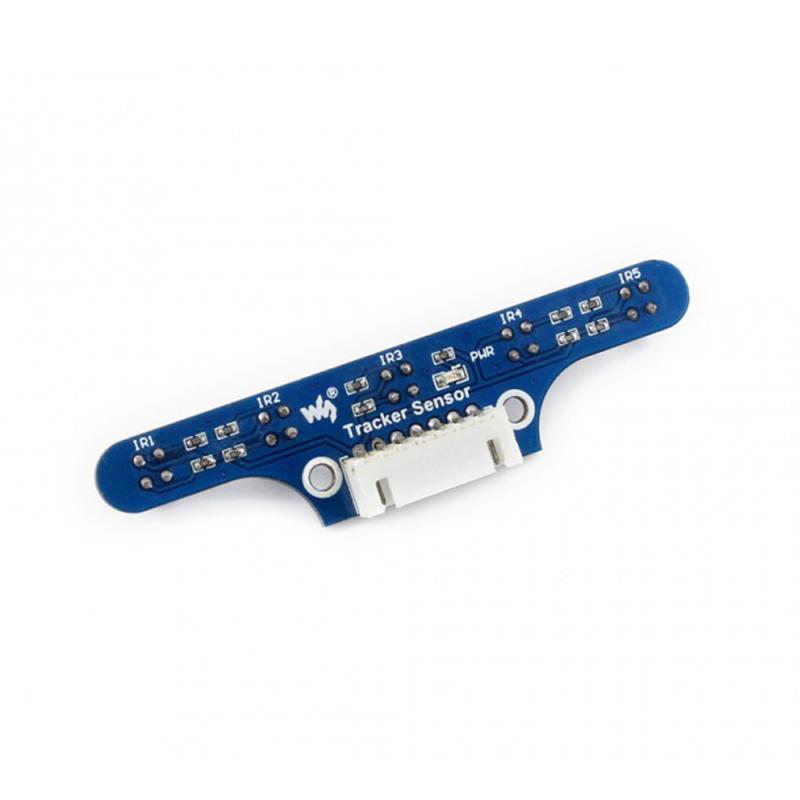

Line Follower Sensor Array 5 Infrared Analog IR Sensor Array
"The 5-Channel Tracker Sensor employs high-sensitivity ITR20001/T infrared detectors for accurate line and surface tracking. It provides five analog outputs that vary with object distance and surface reflectivity: lighter surfaces (e.g., white) produce higher values, while darker surfaces (e.g., black lines) result in lower values. Unlike conventional digital-only modules, this sensor delivers high-resolution analog signals, enabling finer detection and improved precision in line-following applications—particularly when integrated with control algorithms such as PID."
Key Feature
- 5-channel ITR20001/T infrared detectors
- High sensitivity, stable performance, and excellent anti-interference capability
- Analog output for precise reflectance data and distance estimation
- Compatible with PID control for enhanced robot line-tracking stability
Technical Specifications:
Parameter | Specification |
|---|---|
Power Supply | 3.3V ~ 5V |
Detection Range | 1cm ~ 5cm |
Detector Spacing | 16mm |
Analog Output Channels | 5 (IR1 to IR5) |

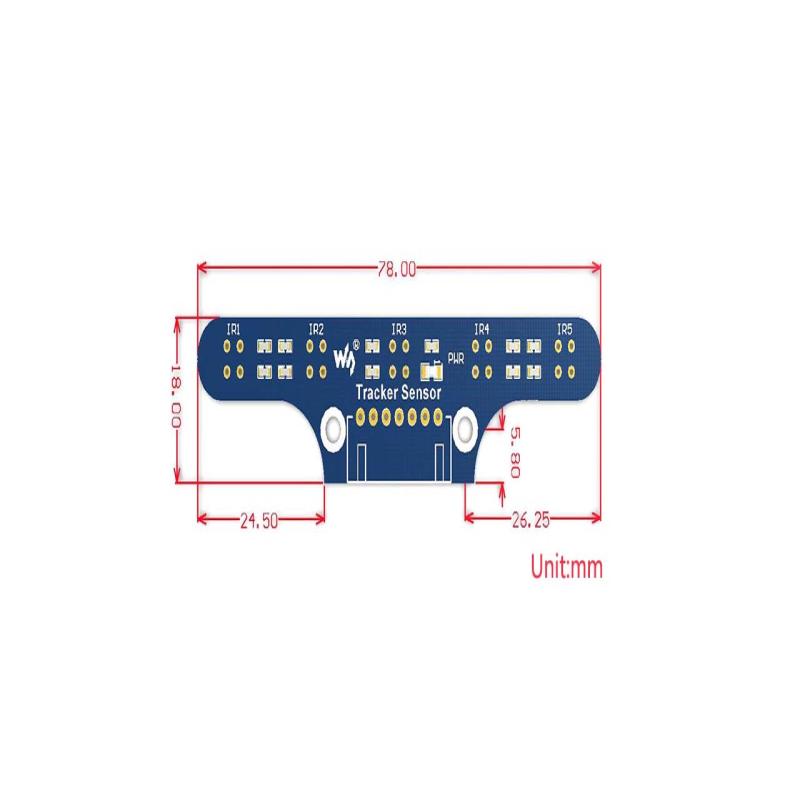

Module Dimensions | 78mm × 18mm |
Mounting Hole Size | 3mm |
Applications
- Line-following robots
- Path detection and guidance systems
- Automated ground-based navigation
How to Use with a Microcontroller (MCU)
| Module Pin | MCU Connection | |
|---|---|---|
| VCC | ↔ | 3.3V ~ 5V Power Supply |
| GND | ↔ | Ground |
| IR1 | ↔ | MCU Analog Input (CH1) |
| IR2 | ↔ | MCU Analog Input (CH2) |
| IR3 | ↔ | MCU Analog Input (CH3) |
| IR4 | ↔ | MCU Analog Input (CH4) |
| IR5 | ↔ | MCU Analog Input (CH5) |
Packaging Details
- 1x Line Follower Sensor Array 5 Infrared Analog IR Sensor Array
Why Choose This Line Follower Sensor Array 5 Infrared Analog IR Sensor Array?
It offers high-precision analog output, stable performance, smooth PID-based tracking, easy MCU integration, and reliable line detection.
