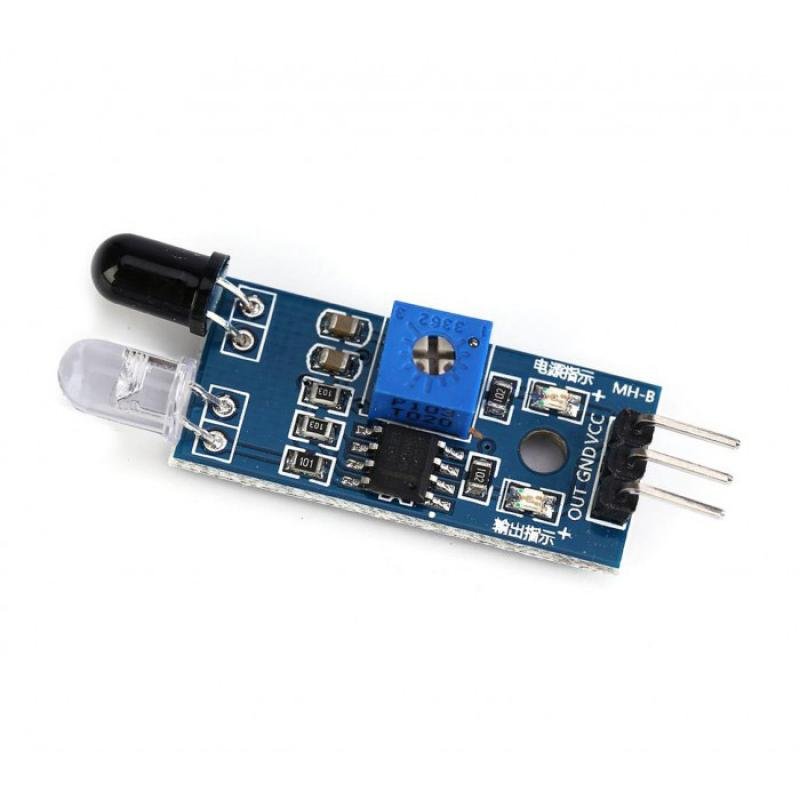

IR Obstacle Sensor
৳65
The IR Obstacle Sensor is a small yet powerful infrared-based sensor used to detect objects or obstacles in front of a moving device. By emitting infrared light and analyzing the reflected signal, this module helps robots and smart devices avoid collisions with accuracy. It’s a must-have tool for Arduino learners, robotics enthusiasts, and school projects across Bangladesh. With its easy plug-and-play design, you can quickly integrate it into automated cars, security systems, or interactive electronics projects. Affordable, versatile, and reliable—this sensor is an essential building block for anyone exploring robotics or IoT.
This sensor module uses a pair of infrared transmitter and receiver tubes to detect obstacles. When the transmitted IR light hits a reflective surface, the receiver captures the reflected signal. The onboard comparator circuit then processes it, lighting up the green indicator LED and outputting a digital low-level signal.
The detection distance can be adjusted via the potentiometer knob, with an effective range of 2–60 cm. Compact and easy to use, this module is ideal for applications such as robot obstacle avoidance, smart cars, line counting, and similar automation projects.
- Detection distance: 2 ~ 60cm
- Detection angle: 35 °
- Comparator chip: LM393
- 3mm screw holes for easy mounting
- Dimensions: 3.1 x 1.5cm
- Working Voltage:3.3 V to 5 V.
