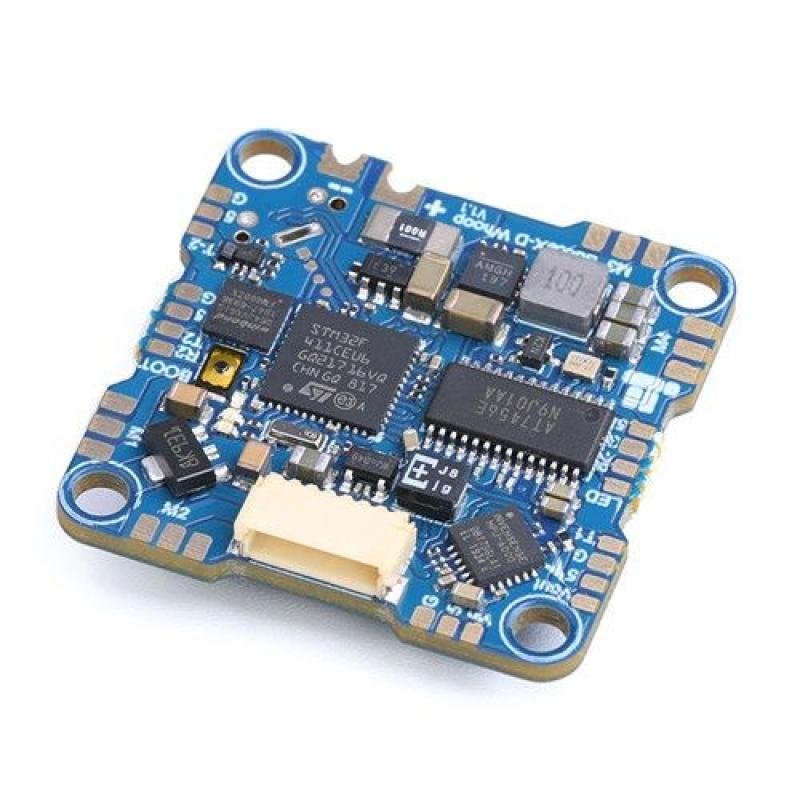

iFlight SucceX-D Whoop F4 20A ESC AIO Board (MPU6000) integrated flight controller
৳7800
The iFlight SucceX-D Whoop F4 20A ESC AIO Board is a compact and efficient all-in-one flight controller and ESC designed for micro FPV drones, particularly those utilizing the DJI HD FPV system. With its integrated design, it simplifies builds by reducing wiring and component count, making it ideal for whoop-style frames and lightweight drone setups.
| Feature | Details |
|---|---|

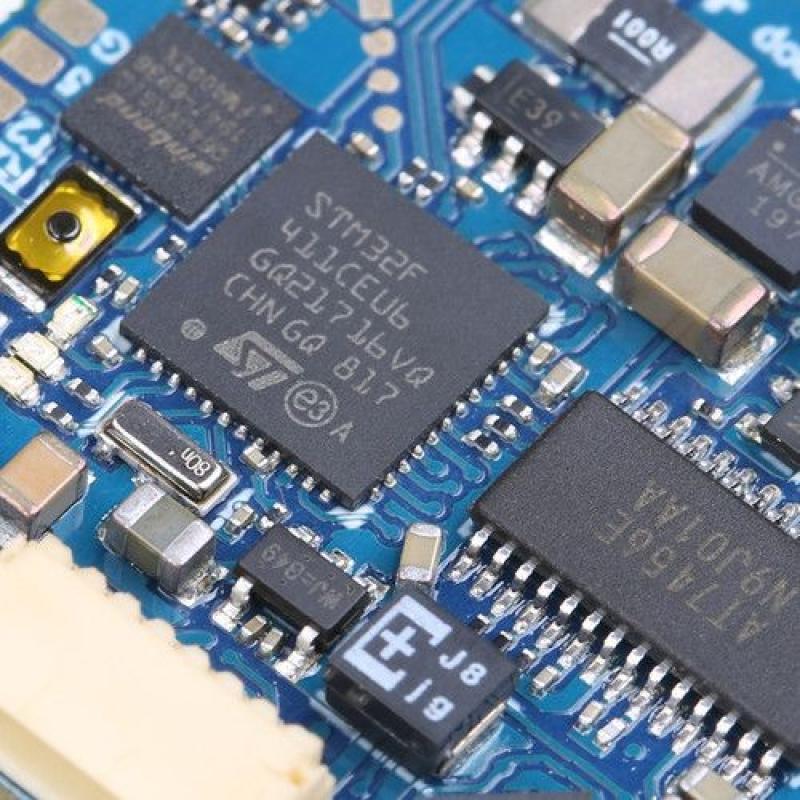

| MCU | STM32F411 |
| Gyroscope | MPU6000 |
| Blackbox Storage | 8MB Flash Memory |
| Input Voltage | 2–5S LiPo (8.4–25.2V) |
| BEC Outputs | 5V @ 2A, 10V @ 2A |
| ESC Current Rating | 20A Continuous, 25A Burst |
| ESC Firmware | BLHeli-S G-H-30 |
| Mounting Pattern | 25.5×25.5mm (M3) |
| Dimensions | 30.5×30.5mm |
| Weight | Approximately 6.6g |
| Firmware Compatibility | Betaflight (Target: IFLIGHT_F411_PRO) |

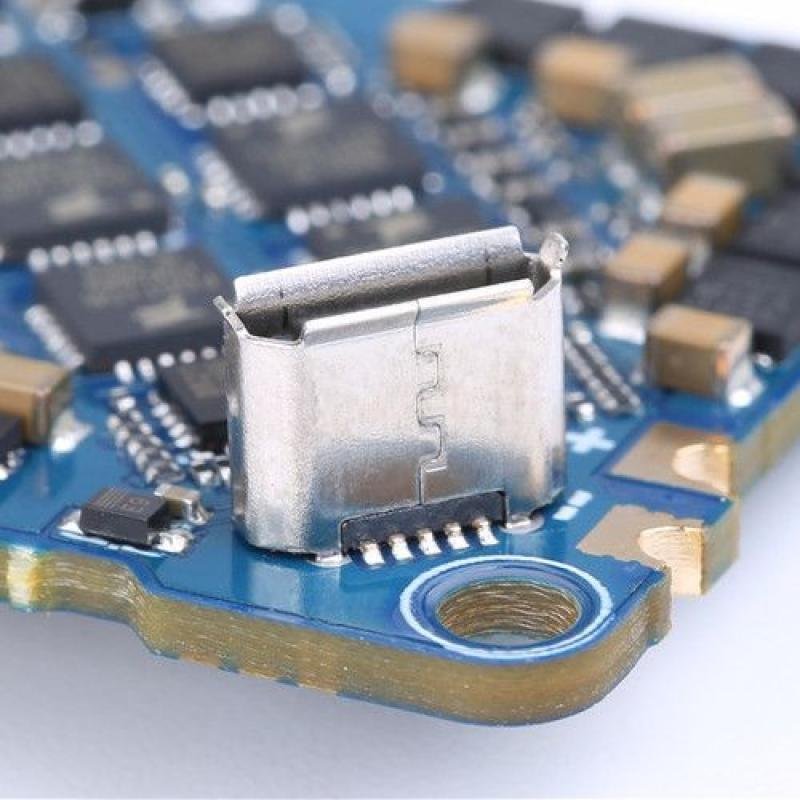

| Connector | Micro-USB |
| Telemetry | Not Supported |
| Current Sensor | Yes |
| Barometer | No |
| INA Pad | UART2-RX |
Key Features
DJI HD FPV System Compatibility: Designed for seamless integration with DJI Air Unit and Caddx Vista, eliminating the need for complex wiring.
High-Performance Processing: Equipped with the STM32F411 MCU and MPU6000 gyro for stable and responsive flight performance.
Ample Storage: 8MB onboard flash memory for Blackbox logging, allowing for detailed flight data analysis.
Efficient Power Distribution: Provides 5V and 10V BEC outputs at 2A each, suitable for powering peripherals like receivers and video transmitters.
Compact and Lightweight: Weighs approximately 6.6g, making it ideal for lightweight drone builds.
Easy Firmware Configuration: Compatible with Betaflight firmware, offering extensive customization options.
