GPS Module GY NEO 8M V2
৳1250
The GPS Module GY NEO 8M V2 is a high-precision GPS receiver designed for projects that require accurate and reliable location tracking. With its advanced NEO-8M chipset, it provides quick and accurate positioning, making it perfect for navigation, tracking, and robotics applications. Ideal for both hobbyists and professionals working in IoT and robotics fields, this GPS module ensures consistent performance in Bangladesh's varied terrains. Whether you’re working on a personal project or a commercial application, the GY NEO 8M V2 is an essential tool for precise GPS functionality.

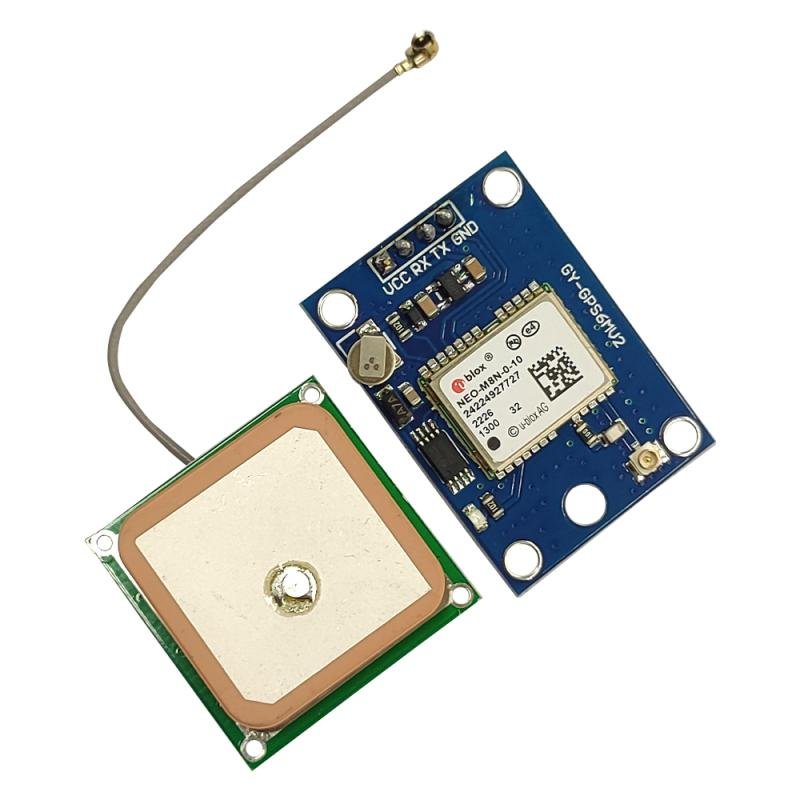

GPS Module GY NEO M8N
The NEO-M8 GNSS Module is built on the high-performance u-blox M8 GNSS engine. The NEO-M8M is optimised for cost-sensitive applications, while NEO-M8N and NEO-M8Q provide the best performance.
People you'll be glad to know that, the NEO-M8N and NEO-M8J include an internal flash that allows future firmware updates
Key Features
| Model | NEO-M8N |
| GNSS: | GPS / GLONASS / Galileo / BeiDou |
| Power Supply | 5V |
| Accuracy | GPS: 2.5 m |
| GLONASS: 4 m | |
| BeiDou: 3 m | |
| Galileo: 3 m | |
| Interface: | UART |
| Antenna Type | Passive and Active (typical antenna is included)/td> |
| Default baud rate | 9600 |
| Grade | Professional |
| Dimensions | Antena : 25 x 25 x 9 mm |
| Module : 26 x 36 x 4 mm | |
| Interface | Programmable Interface (USB, RSS232) |
| Weight | 18g (±5) |
Pin Diagram
[ Insert Image ]Getting GPS Raw Data
- Connect the GPS Antenna with the Module
- Make sure you have placed the antenna towards the open sky
- Power up the GPS Module using DC 5V through VCC and GND pin
- Use Microcontroller or USB to Serial Converter to Send AT Commands
- Extract the NEMA data according to your preference
Packaging Details
- 1 x GPS Module GY NEO M8N
- 1 x Antenna
