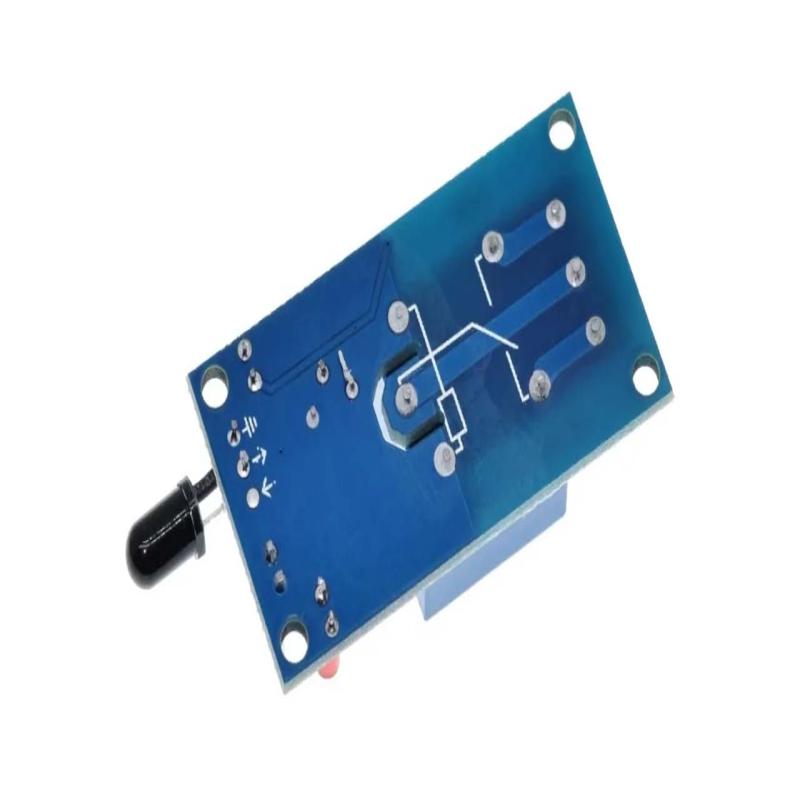

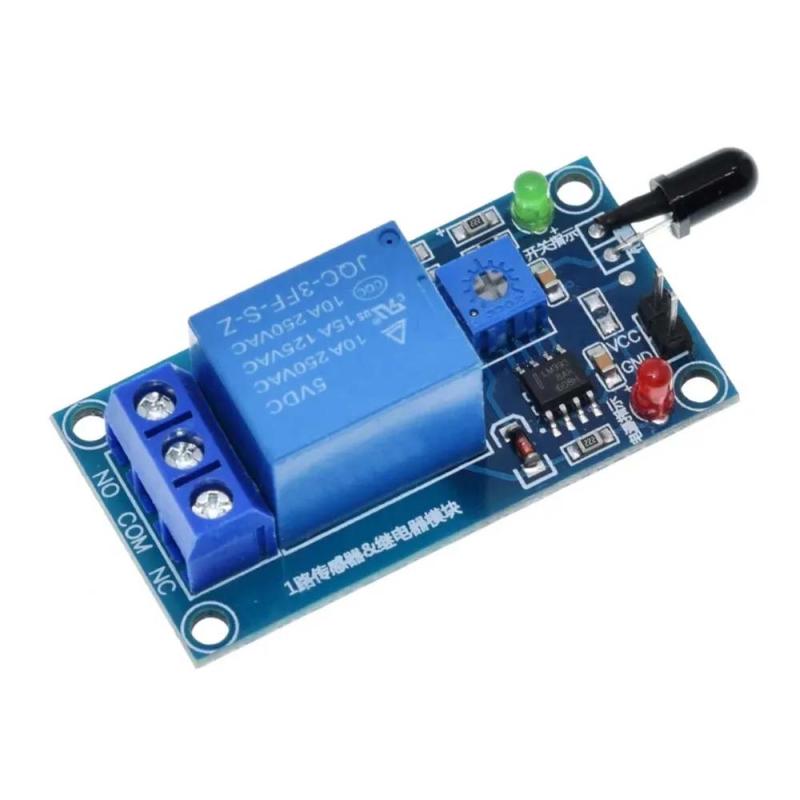

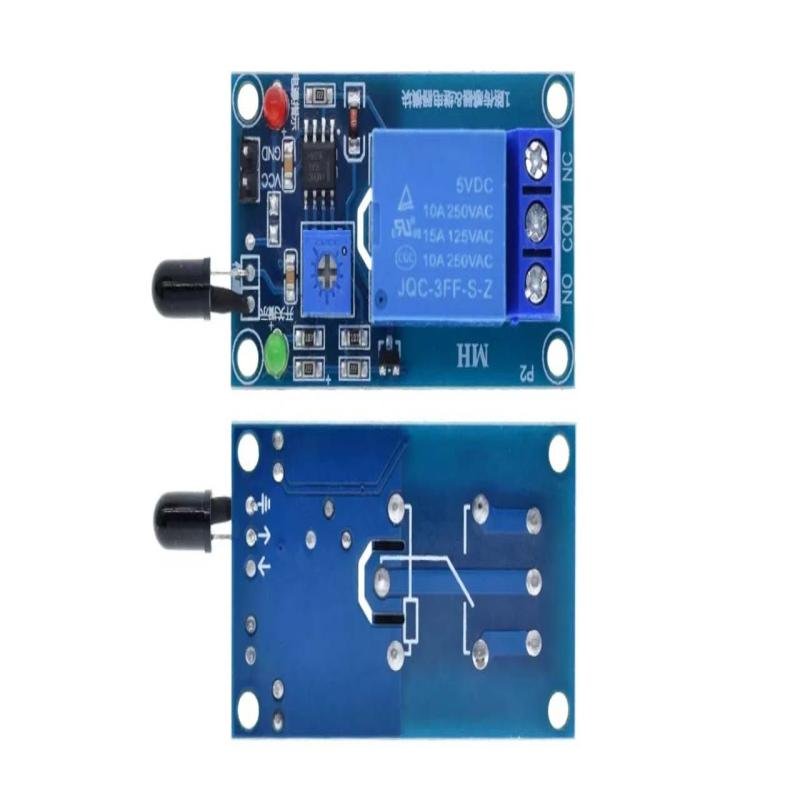

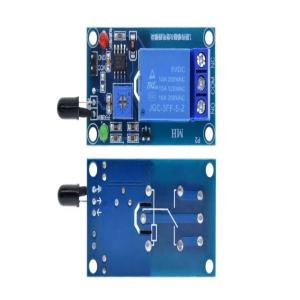

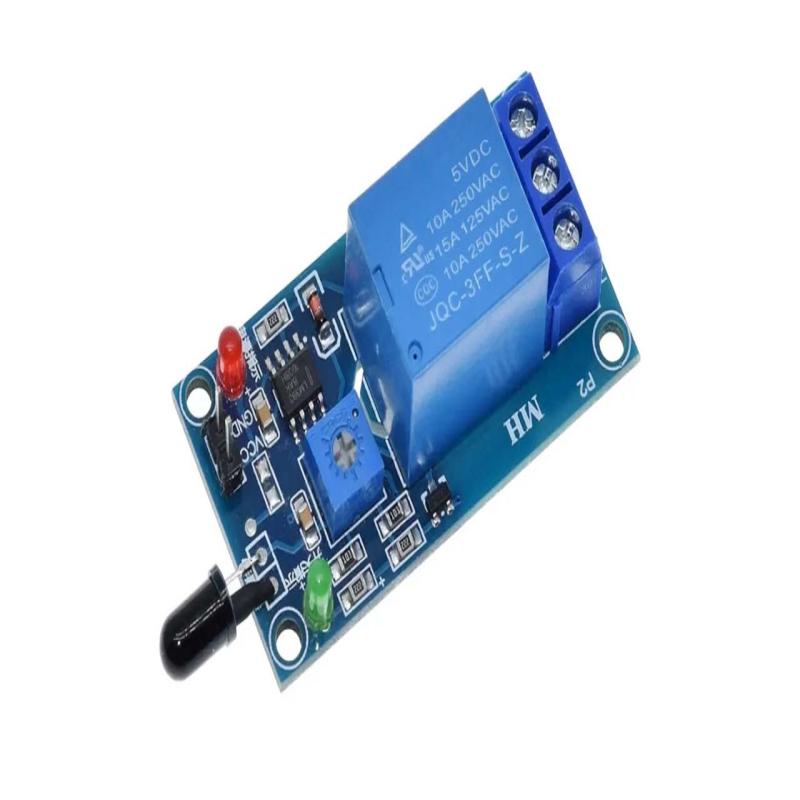

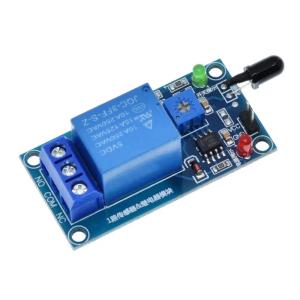

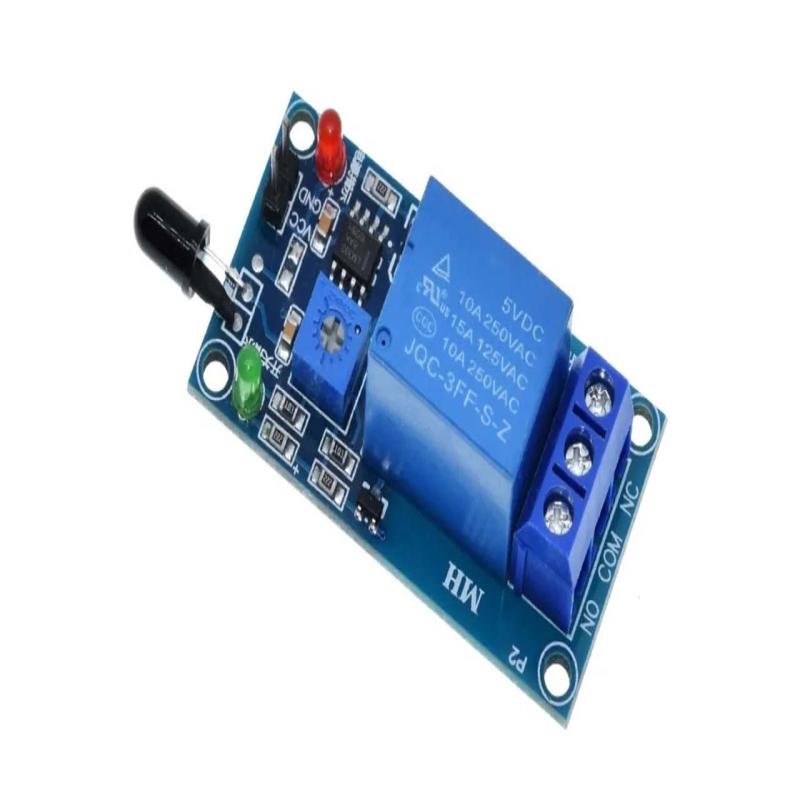

Flame Sensor Fire Detection Module 1 Channel 5V
৳230
he Flame Sensor Fire Detection Module (1 Channel, 5V) is a highly sensitive sensor designed to detect flame or light sources in the range of 760nm–1100nm. With its single-channel digital output, it can directly trigger alarms, relays, or microcontrollers for fire safety applications.
Compatible with Arduino, ESP32, STM32, and Raspberry Pi, this module is widely used in fire alarm systems, firefighting robots, industrial monitoring, and IoT safety devices.
For students, hobbyists, and engineers in Bangladesh, the 1-Channel 5V Flame Sensor offers a reliable and affordable solution for fire detection, making it ideal for both DIY and professional safety projects.
This flame sensor module uses infrared technology to detect fire and flame sources within the 760nm–1100nm wavelength range. It can sense flames from up to 80cm away, with greater distances possible for larger flames. Featuring a 60° detection angle and adjustable sensitivity, it provides reliable performance for fire safety, security, and automation projects. Compact and easy to integrate, it is an excellent choice for enhancing safety systems and smart applications.
Key Features
- Detects flames and IR light within 760nm–1100nm range.
- Senses flames up to 80 cm; farther for larger flames.
- Adjustable sensitivity with onboard digital potentiometer.
- Fast relay activation via comparator output.
- Compact design (50mm × 26mm × 19mm) with easy wiring and mounting holes.
Technical Specifications
Parameter | Specification |
|---|---|
Detection Wavelength | 760nm – 1100nm |
Flame Detection Range | Up to 80 cm (for lighter flame) |
Detection Angle | Approximately 60° |
Sensitivity Adjustment | Yes (via onboard blue potentiometer) |
Operating Voltage | 5V DC |
Current Consumption | Greater than 150mA |
Relay Load Capacity (AC) | 250V 10A |
Relay Load Capacity (DC) | 30V 10A |
Module Dimensions | 50mm × 26mm × 19mm |
Output Interface | Blue terminal block |
Mounting Holes | Yes (for easy installation) |
Applications
- Fire alarm and safety systems
- Industrial automation and fire prevention
- Smart home fire detection networks
- Robotics – flame-tracking robots and automated firefighting systems
Packaging Details
- 1 X Flame Sensor Fire Detection Module 1 Channel 5V
Why Choose This Flame Sensor Fire Detection Module 1 Channel 5V?
Designed for reliability, precision, and ease of integration, this flame sensor module is a perfect fit for hobbyists, engineers, and industrial developers who prioritize early fire detection and automated safety responses.
