Fingerprint Sensor R307S
৳1395
The R307S Fingerprint Sensor Module is a high-performance biometric reader that captures and stores fingerprint data with excellent accuracy. Equipped with advanced image processing and a built-in template storage system, it ensures fast and reliable authentication for security applications.
This module communicates via UART/serial interface, making it easy to connect with Arduino, Raspberry Pi, ESP32, and other microcontrollers. Commonly used in door locks, attendance systems, safes, and IoT-based security devices, the R307S is a trusted solution for biometric identification.
For students, hobbyists, and engineers in Bangladesh, the R307S offers an affordable yet powerful way to add biometric security to projects and professional systems.
The R307S (1000 Prints) Fingerprint Module integrates an optical fingerprint sensor, a high-speed DSP processor, a robust alignment algorithm, and large-capacity FLASH memory for reliable biometric identification. With its simple structure and stable performance, it supports fingerprint entry, image processing, template storage, matching, and searching.
The module offers both TTL UART and USB 2.0 interfaces. It can connect directly to 3.3V or 5V microcontrollers such as ARM and DSP, while a level converter (e.g., MAX232) is required for PC connections. The default baud rate is 57600 bps (configurable via communication protocol).
Users can configure the module in 1:1 verification mode or 1:N identification mode, making it suitable for a wide range of embedded security applications.

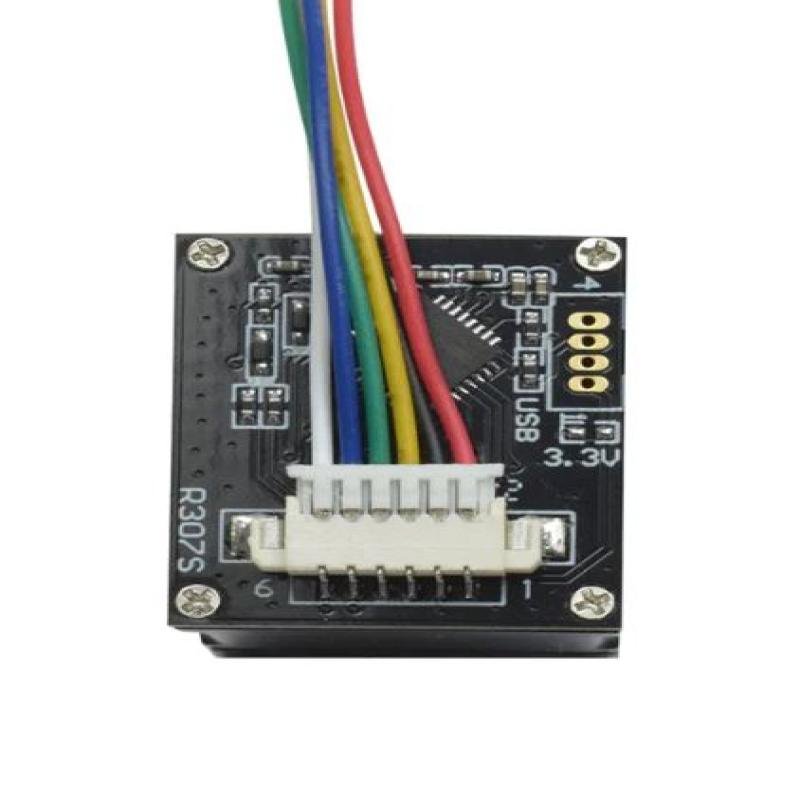

Pin Detail:
1 5V - Regulated 5V DC
2 GND - Common Ground
3 TXD - Data output - Connect to MCU RX
4 RXD - Data Input - Connect to MCU TX
5 TOUCH - Active Low output when there is a touch on the sensor by a finger
6 3.3V - Use this wire to give 3.3V to sensor instead of 5V
Features:
- Supply voltage: DC 4.2 ~ 6.0V
- Supply current: Working current: 50mA (typical) Peak current: 80mA
- Fingerprint image input time: <0.3 seconds
- Characteristic file: 256 bytes
- Template file: 512 bytes
- It has six pin connector
Package Includes:

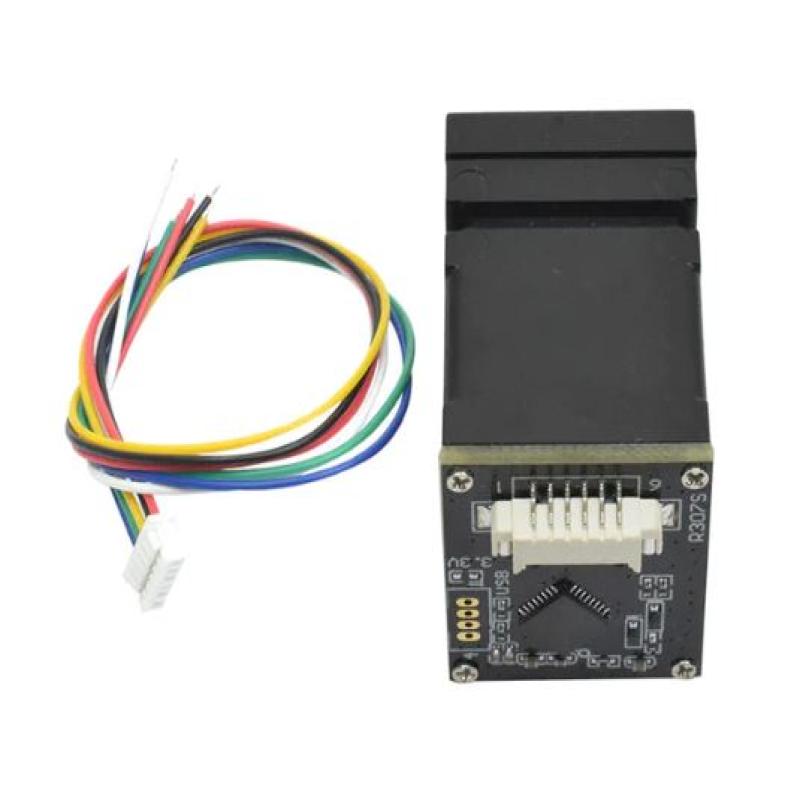

- 1 x R307s Optical Fingerprint Reader Sensor Module.
- 1 x 6 pin RMC Connector with wire
Specification of Fingerprint Sensor R307S
| Model | R307S |
| Type | Fingerprint |
| Voltage | 3.3V |
| Operating Current | 50mA |
| Screen Size | 16mmx20mm |
| Dimensions | 48mmx24mm20mm |
