Feetech ST3215-C047 12V 30Kg Servo
৳4,800

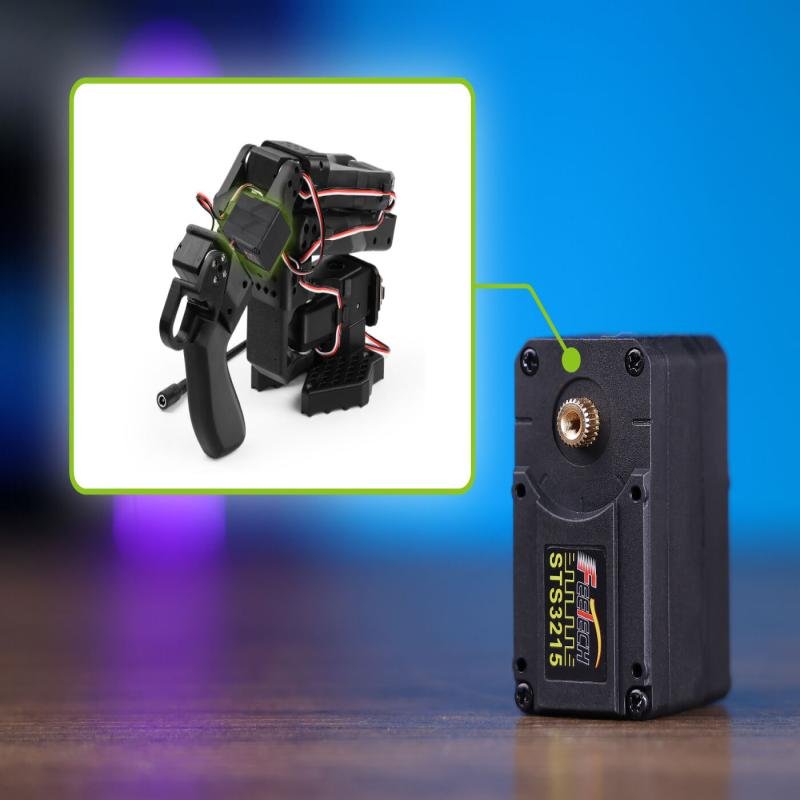

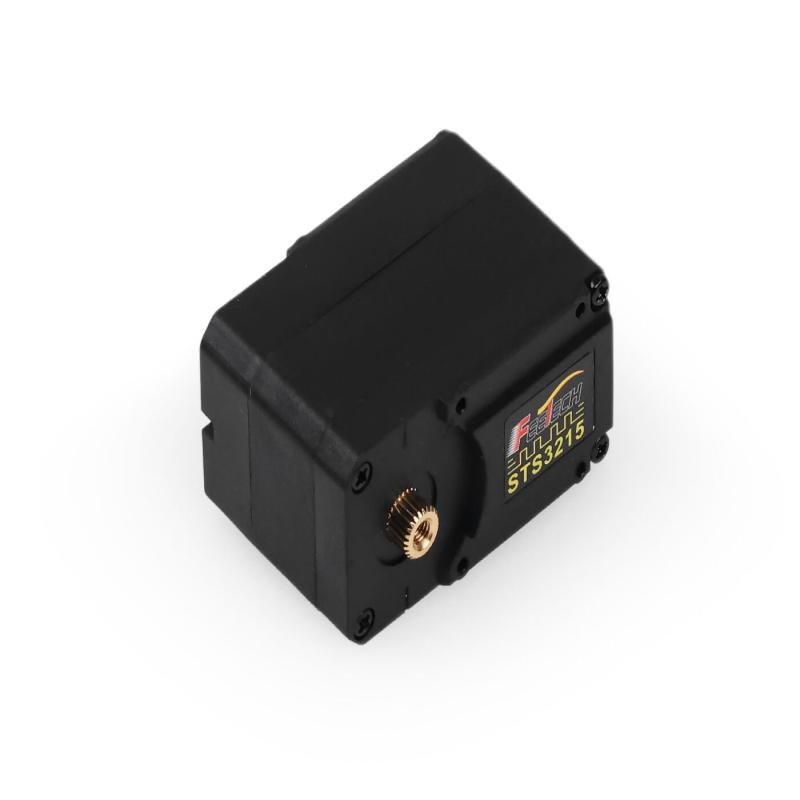

STS3215 C047 is a 12V 30Kg. cm serial bus smart servo, with plastic case, core motor, 1:345 metal gearbox and 12 bit high precision magnetic coding sensor. The stall toruqe is 30 kg. cm and the rated torque is 10kg.cm. Designed for versatility, it is suited for use in industrial automation, robotics, and low-torque drive applications, such as LeRobot SO-Arm 101.
Feature
Specification
Hardware Overview
Application
Documents
Certification
Part List
Frequently Asked Questions
Yes. The STS3215 30KG servo motor is well suited for robotic arms, humanoid robots, quadruped robots, grippers, and automation projects. It provides up to 30kg·cm peak stall torque at 12V, 360° control, and feedback for position, speed, load, voltage, and current.
The STS3215 serial bus servo uses half-duplex TTL communication instead of conventional PWM control. Multiple servos can share a communication bus, while the controller can receive useful feedback such as position, speed, load, voltage, and current. This makes it particularly useful for advanced robotics and automation systems in Bangladesh.
Yes. The STS3215 communicates through TTL half-duplex UART, making it suitable for custom robotics controllers and embedded systems. It supports communication speeds from 38.4kbps to 1Mbps, with 1Mbps as the default on the referenced version.
Yes. If you are building a robotic arm, humanoid robot, quadruped robot, AGV, robotic gripper, or automation prototype, the STS3215 offers a useful combination of high torque, programmable control, 360° operation, and feedback. It is particularly suitable for engineering students, researchers, robotics teams, and professional developers.
