9DOF Accelerometer Gyroscope Magnetometer MPU-9250
৳1134

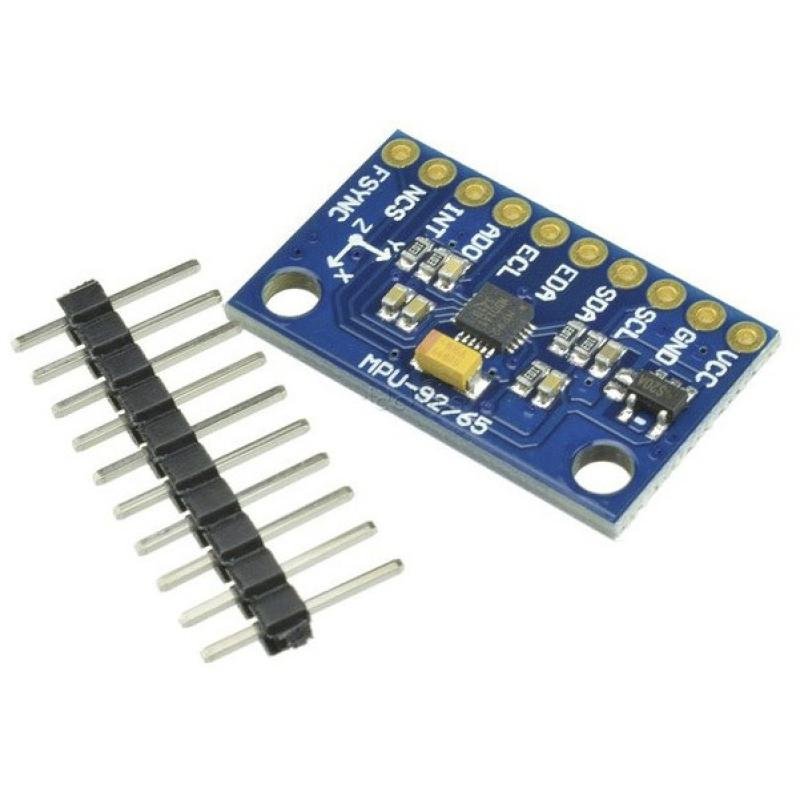

The MPU-9250 9DOF Sensor Module is a high-precision Inertial Measurement Unit (IMU) combining a 3-axis accelerometer, 3-axis gyroscope, and 3-axis magnetometer in a compact board. This powerful 9-degree-of-freedom sensor delivers accurate orientation, motion, and direction data, making it ideal for advanced electronics projects.
Commonly used in drones, self-balancing robots, VR/AR devices, navigation systems, and IoT applications, the MPU-9250 communicates easily over I2C or SPI, ensuring smooth integration with Arduino, ESP32, STM32, and Raspberry Pi platforms.
For students, engineers, and developers in Bangladesh, this module is a cost-effective solution for motion tracking, gesture control, and robotics innovations where precision really matters.
The MPU-9250 is a 9DOF motion-tracking sensor that combines a 3-axis accelerometer, 3-axis gyroscope, and 3-axis magnetometer in a single compact module, ideal for robotics, drones, and navigation projects.
Use Chip: MPU-9250
Power supply :3-5v (internal low dropout regulator)
Communication: Standard IIC / SPI communication protocol
-Chip 16bit AD converter, the output data 16
Gyro range: ± 250 500 1000 2000 ° / s
Acceleration range: ± 2 ± 4 ± 8 ± 16g
Magnetic field range: ± 4800uT
Using Immersion Gold PCB, machine welding process to ensure quality
2.54mm pin pitch
Module size 15mm * 25mm
