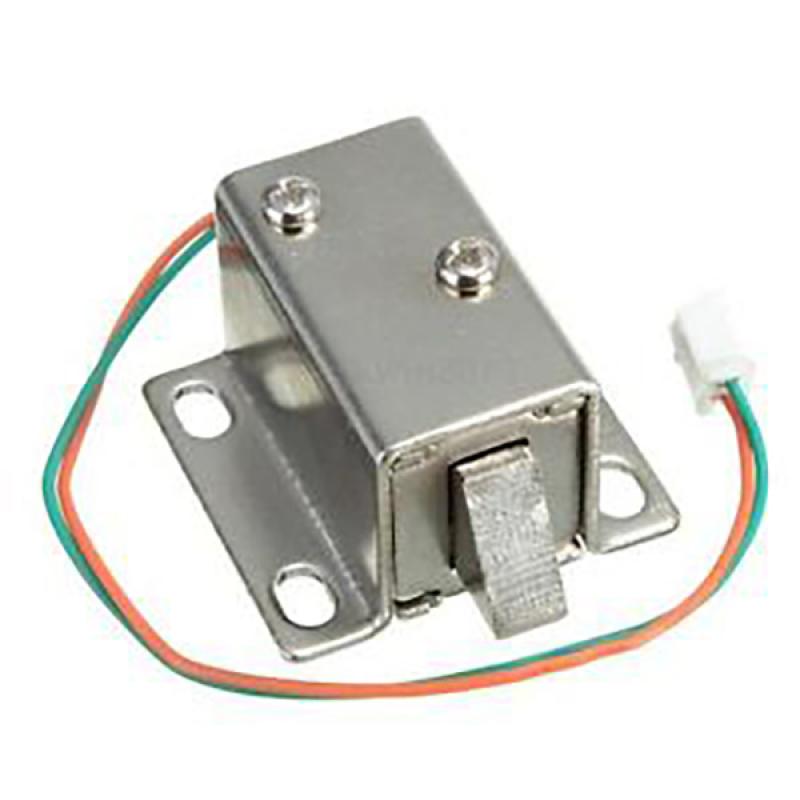

DC 12V Solenoid Electric Door Lock Small
৳350
The Small DC 12V Solenoid Electric Door Lock is a compact locking solution designed for cabinets, lockers, drawers, vending machines, and DIY security projects. Operating on a standard 12V DC power supply, it provides quick and reliable locking/unlocking action. Its miniature size and lightweight build make it ideal for space-limited applications while still offering solid performance. Commonly used in smart access control systems, DIY Arduino projects, and electronic enclosures across Bangladesh, this lock is simple to install and integrate with controllers, switches, or RFID modules.
Categories:
Electronics Products
/
IoT & Home Automation
/
Others
Brand:
Made in China
SKU: Available
This is a brand-new, high-quality slim solenoid lock, designed for security, stability, and low power consumption. Suitable for a wide range of applications, it can be used in cabinets, lockers, drawers, file cabinets, luggage locks, electric doors, newspaper boxes, and sauna locks.
Featuring an open-frame design with a mounting board, it offers high power output and is easy to install in electric or automatic door lock systems. The lock tongue direction is adjustable (up, down, or sideways), providing flexibility for different setups.
| General Specification | |
| Model | DC 12V Cabinet Door Lock |
| Rated Operating Voltage (VDC) | 12 |
| Rated Current (mA) | 0.80A. |
| Power Consumption (Watt) | 9.6 |
| Holding Force (N) | 2.45 |
| Unlocking Time | 1 sec |
| Body Material | Iron Metal |
| Energized forms | Intermittent |
| Cable Length (cm) | 25 |
| Weight (gm) | 150 |
| Dimensions (mm) LxWxH | 27 x 29 x 18 |
| Shipment Weight | 0.18 kg |
| Shipment Dimensions | 9 × 5 × 5 cm |
