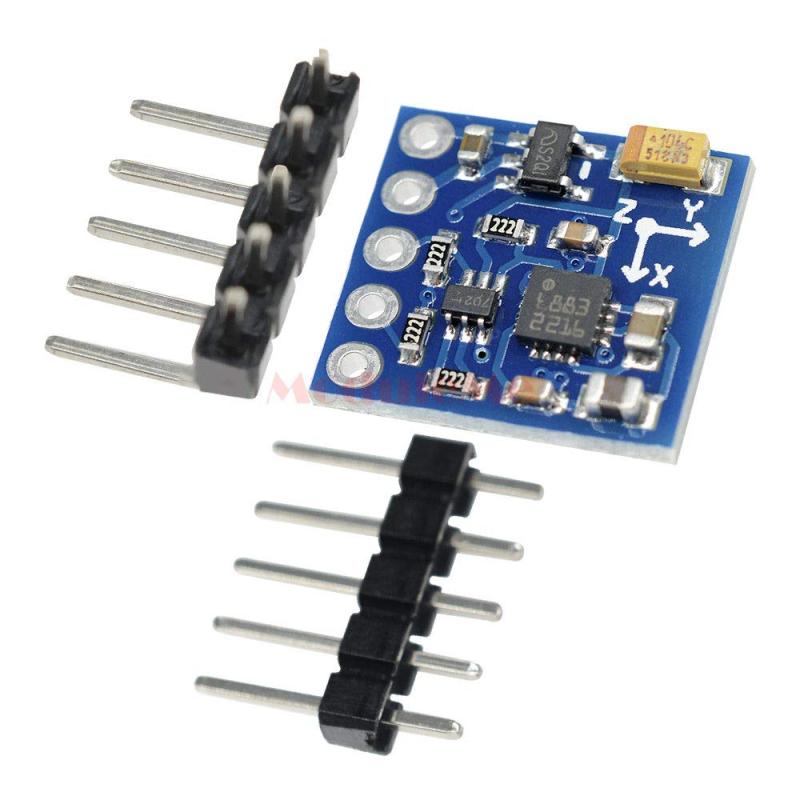

Compass Sensor Module HMC5883L GY271 3Axis
৳380
The HMC5883L GY-271 3-Axis Compass Sensor Module is a high-sensitivity digital magnetometer used to measure magnetic fields and determine direction. Compact and reliable, this sensor provides precise heading data for navigation systems, robotics, and drone applications.
It communicates over the I2C interface, making it simple to connect with Arduino, ESP32, STM32, and Raspberry Pi platforms. Whether you’re building a GPS navigation system, a self-guided robot, or a quadcopter, the HMC5883L ensures stable and accurate compass readings.
For students, hobbyists, and engineers in Bangladesh, this module is an affordable and essential tool for any project that requires direction, orientation, or magnetic field detection.
The Compass Module is a compact digital sensor designed for low-field magnetic sensing, providing precise and reliable heading information. Its small size makes it ideal for integration into projects such as UAVs, robotics, and navigation systems.
Specifications:
- Model: GY-271
- Chip: HMC5883L
- Input Voltage: 3V ~ 5V
- Sleep mode current: 2uA
- Measurement mode current: 100uA
- Output Type: Digital
- ADC: 12 bit
- Maximum output frequency: 160Hz
- Heading angle accuracy: 1° ~ 2°
- Resolution: 2 milli-gauss
- Magnetic Field Range: -8 gauss ~ +8 gauss
- Interface: I2C
- Pin Number: 5 Pin
- Size: 14.5mm x 13.5mm
Package:
1x WYHP GY-271 HMC5883L 3-Axis Compass Magnetometer Sensor Module 3V-5V
