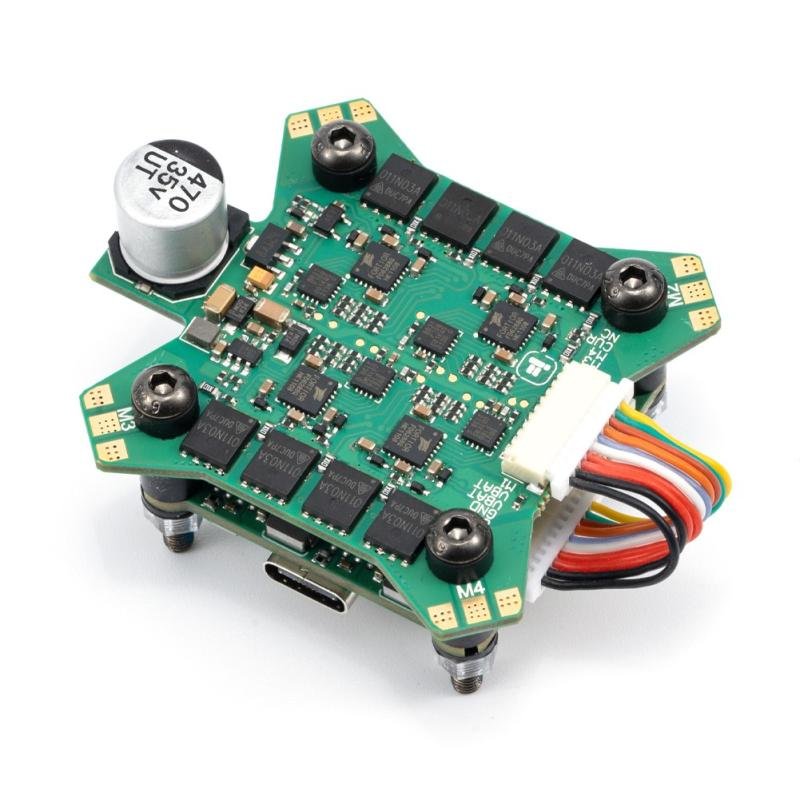

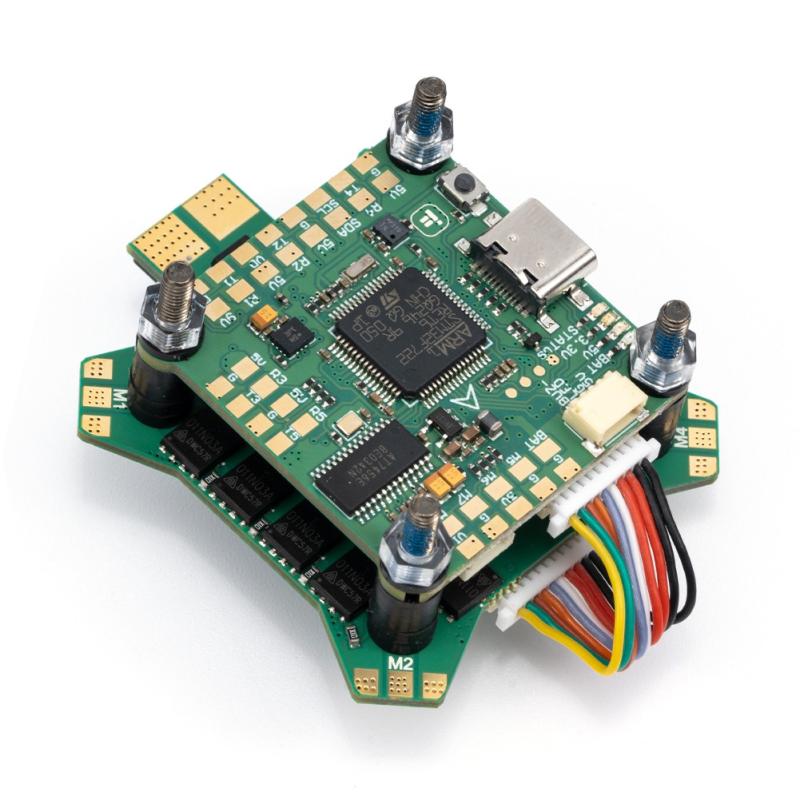

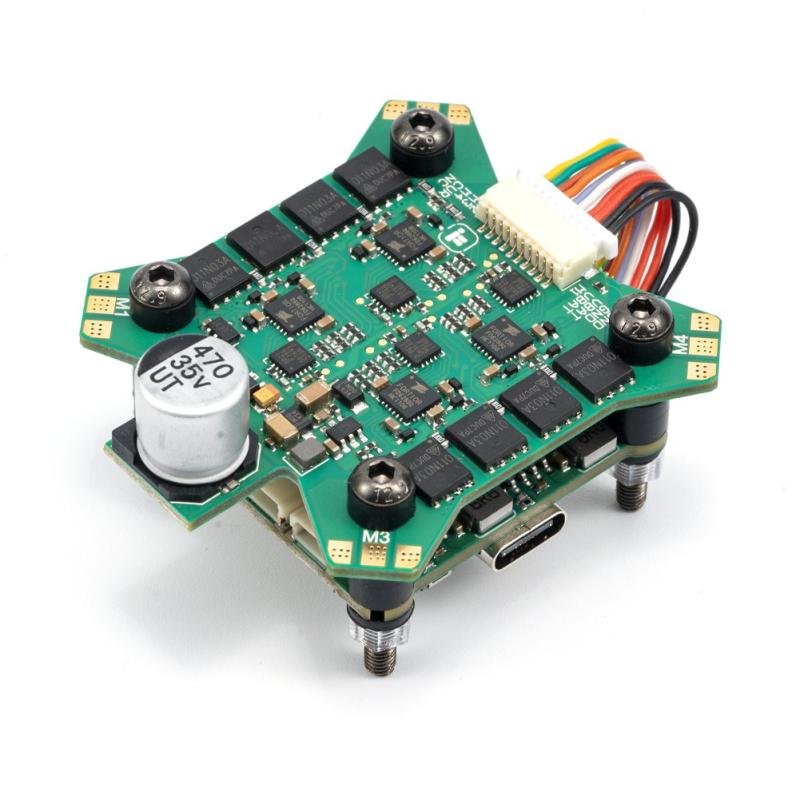

BLITZ F7 Stack (F7 V1.1 + 45A 4in1 ESC)
৳16,774
Elevate your drone's performance with the BLITZ F7 Stack (F7 V1.1 + 45A 4-in-1 ESC). Designed for enthusiasts seeking high power and reliability, this stack combines advanced flight control with robust ESC capabilities. Whether you're into freestyle, racing, or cinematic FPV, this stack ensures smooth flight dynamics and exceptional durability.
| Component | Specification |
|---|---|
| Flight Controller (FC) | |
| Model | BLITZ F7 V1.1 |
| Processor | STM32 F722 |
| Gyroscope | BMI270 |
| Barometer | DPS310 |
| OSD Chip | AT7456E |
| Blackbox Storage | 32MB Flash Memory |
| UART Ports | 6 |
| Motor Outputs | 4x (SH1.0 connector) |
| I2C Serial Pads | SDA / SCL |
| VTX Protocol Support | SmartAudio / IRC Tramp |
| LED Controller | Yes |
| Beeper Pad | Yes |
| BEC Output | 5V 2.5A / 9V 2A |
| Mounting Holes | 30.5x30.5mm, Φ4mm |
| Dimensions | 36.5x35mm |
| Weight | 7.8g |
| Firmware Target | IFRC-IFLIGHT_BLITZ_F722 |
| ESC (BLITZ E45 4-in-1 ESC) | |
| Model | BLITZ E45 4-IN-1 2-6S 45A ESC |
| Supported Protocols | DShot150/300/600, MultiShot, OneShot |
| Input Voltage | 2-6S LiPo |
| Telemetry Output | No |
| Mounting Holes | 30.5x30.5mm, Φ4mm |
| Target | Q-H-25 16.7 |
| Weight | Not specified |
