6DOF Robotic Arm
৳4145
The 6DOF Robotic Arm offers six degrees of freedom for highly precise and flexible movement, making it perfect for robotics experiments, automation, and educational projects. Compatible with Arduino, Raspberry Pi, and other controllers, it allows users to program complex tasks like pick-and-place operations. Ideal for students, makers, and robotics enthusiasts in Bangladesh who want hands-on experience with industrial-style robotic systems.
Categories:
Electronics Products
/
Robotics
/
Robotics
/
Robotics KIT
Brand:
Made in China
SKU: Available

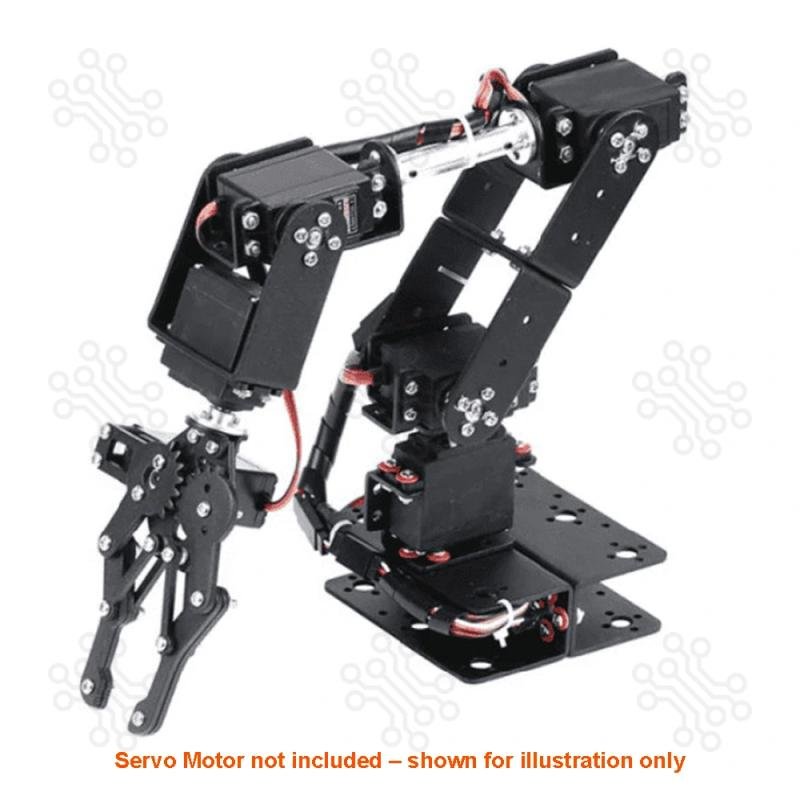

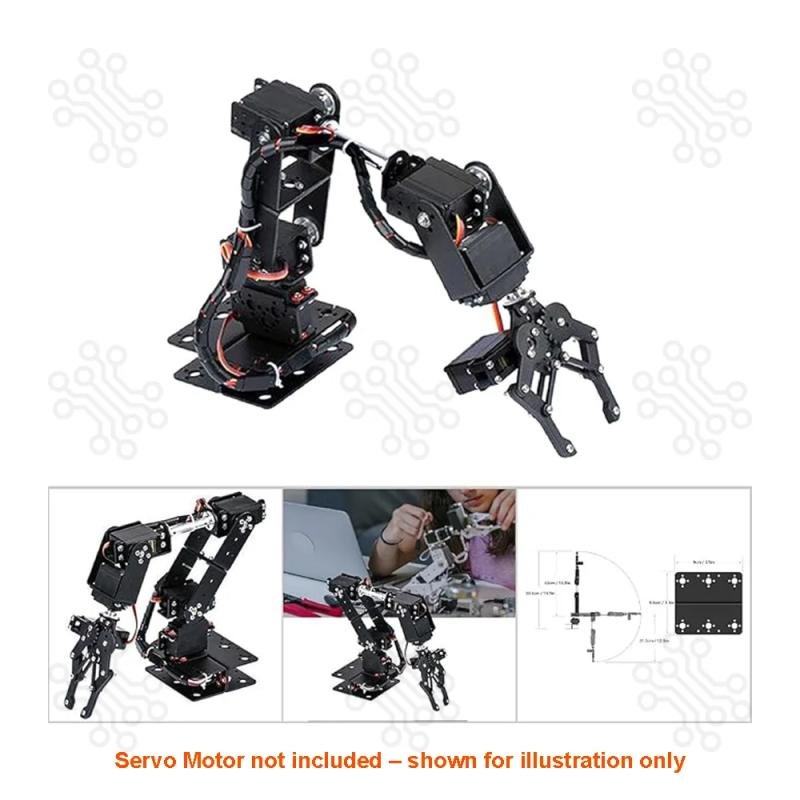

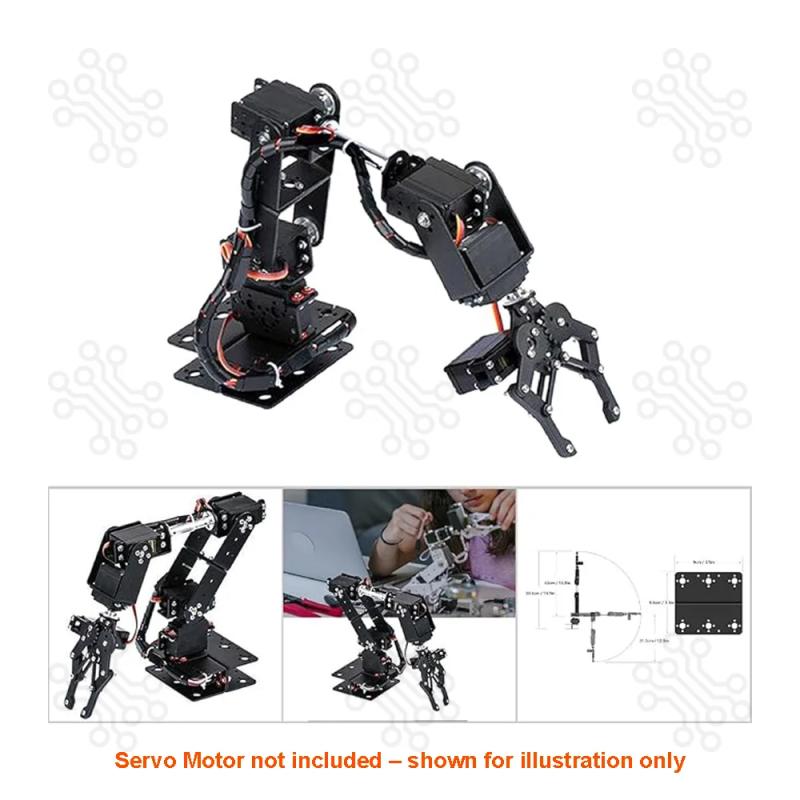

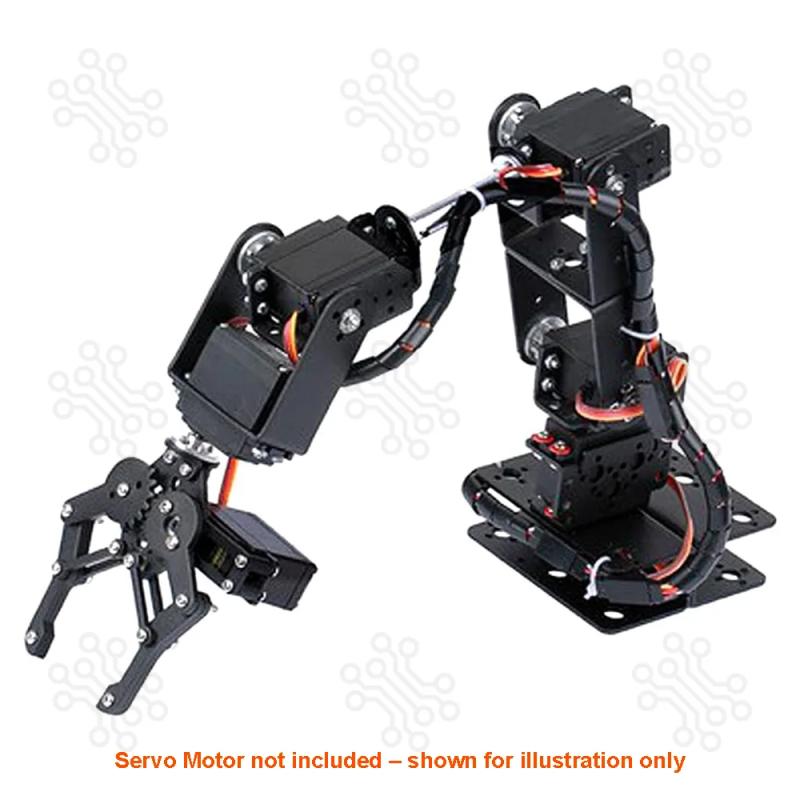

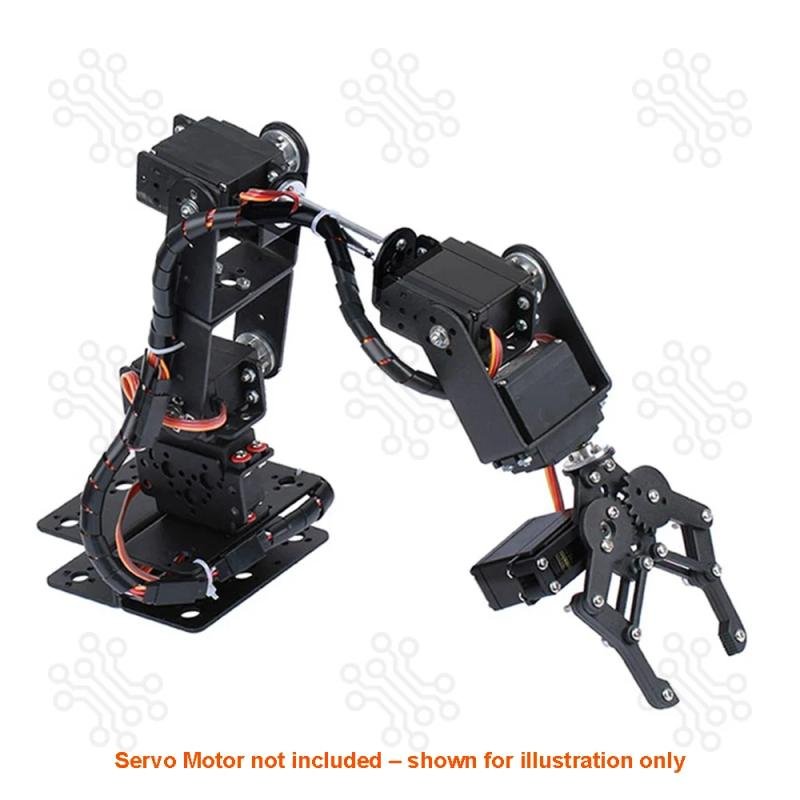

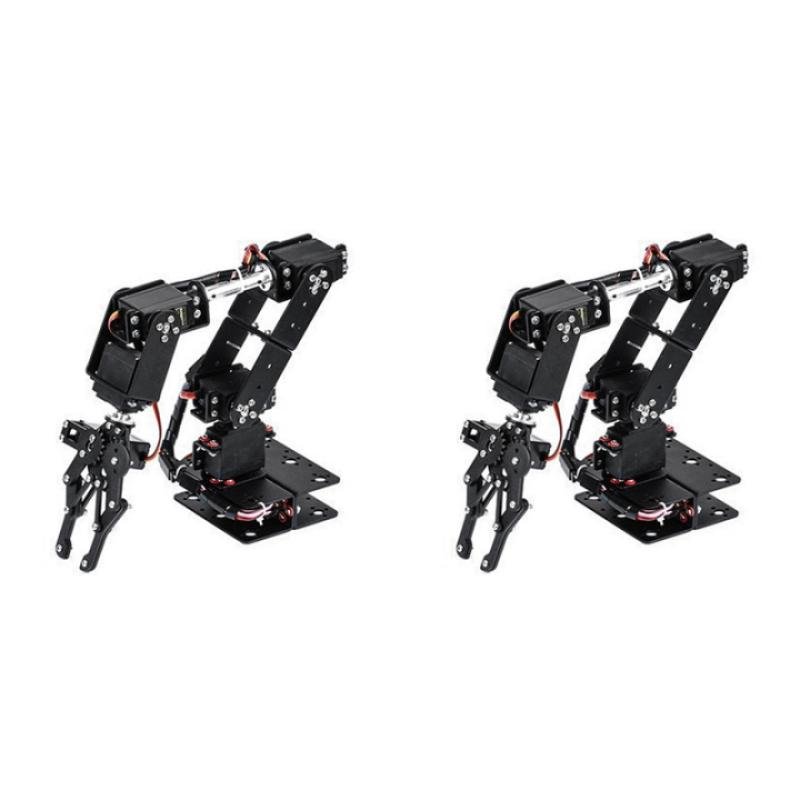

The 6DOF Robotic Arm is a high-precision mechanical kit designed for robotics enthusiasts, students, and STEM learners. Built from durable aluminum alloy, it offers six degrees of freedom for flexible rotation, lifting, and gripping—ideal for automation, prototyping, and educational projects.
This DIY arm is compatible with MG995/MG996 servo motors (not included) and works seamlessly with Arduino, Raspberry Pi, and other microcontroller platforms. Perfect for hands-on robotics, coding experiments, and motion control system development.
Note: Servo motors, power supply, and controller are not included in the package. This is a mechanical kit that requires assembly.
- 6 Degrees of Freedom for flexible, multi-axis movement
- Aluminum alloy construction for strength and reduced weight
- Robotic gripper included for real-world object handling
- Modular structure—compatible with MG995 / MG996 servo motors
- Perfect for Arduino, Raspberry Pi, or other microcontroller platforms
- Supports expansion with USB servo controllers and an external power supply
Technical Specifications
Feature | Specification | |||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Product Name | 6DOF Robotic Arm | |||||||||||||||||||||||||||||
Degrees of Freedom | 6 | |||||||||||||||||||||||||||||

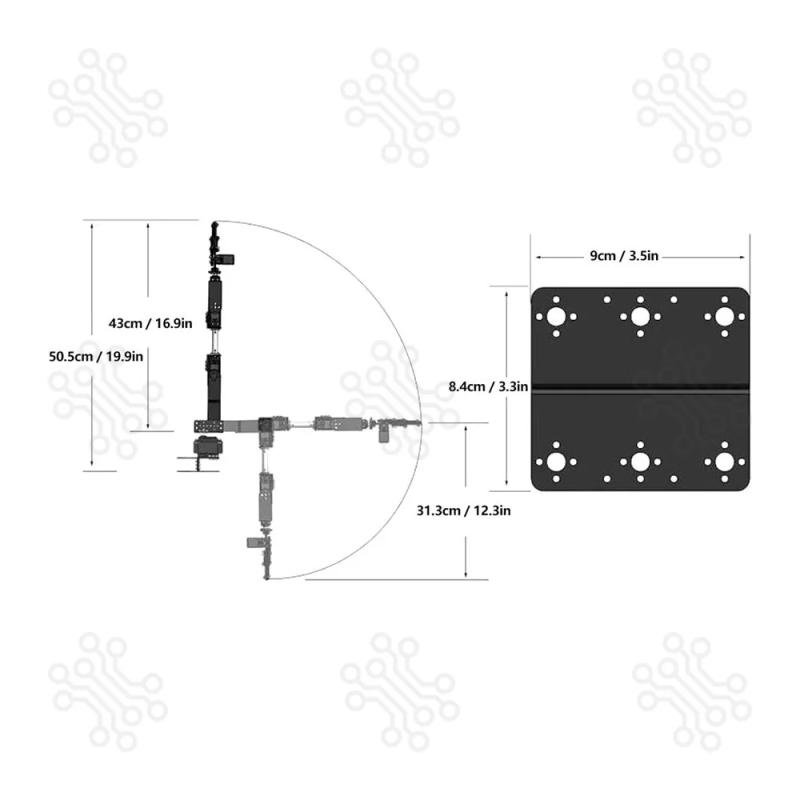

Dimensions | 21 × 17.4 cm | |||||||||||||||||||||||||||||
Weight | Approx. 500g | |||||||||||||||||||||||||||||
Material | High-grade Aluminum Alloy | |||||||||||||||||||||||||||||
Functionality | Clamping, rotating, and lifting | |||||||||||||||||||||||||||||
Servo Compatibility | MG995 / MG996 (not included) | |||||||||||||||||||||||||||||
Application
- Robotics education and STEM curriculum
- University labs and engineering research
- DIY robotics and hobbyist automation
- Object sorting, gripping, and controlled movement
- Integration into Arduino or Raspberry Pi projects

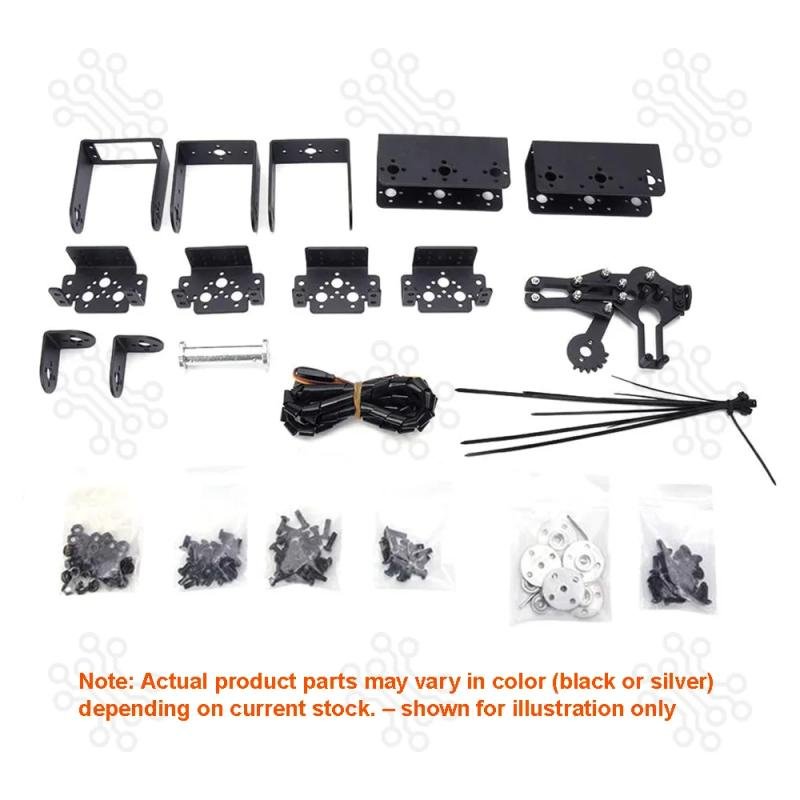

Packaging Details
- 4 × Multifunctional Brackets
- 2 × Long U-Shape Brackets
- 1 × Long U-Shape Bracket with Servo Cutout
- 2 × L-Shape Brackets
- 2 × U-Beam Brackets
- 1 × Robotic Gripper
- 3 × Cup Bearings
- 1 Set of Screws & Nuts
- Cable accessories include cable ties, servo wire extenders, spiral wire wrap, and more
Recommended Accessories
- Recommended compatible servo motor: MG-996 (click here) or MG995 (click here)
- See also: USB servo controller (click here)
- Compatible servo horn: Metal Servo Horn (click here)
- Recommended also: Servo power supply (click here)
6DOF Robotic Arm – Frequently Asked Questions
Are servo motors included with the robotic arm kit?
Servo motors are not included in the package; users will need to purchase compatible MG995 or MG996 servo motors separately.
Is the robotic arm pre-assembled or ready to use out of the box?
The kit does not come pre-assembled. It is a DIY mechanical assembly kit intended for hands-on learning and educational use.
Is this robotic arm compatible with Arduino and Raspberry Pi?
This robotic arm is fully compatible with Arduino, Raspberry Pi, and similar microcontroller platforms for custom programming and servo control.
What material is used to build the robotic arm?
The arm is made from high-quality aluminum alloy, which provides a durable yet lightweight structure suitable for robotic applications.
What types of movements can the robotic arm perform?
Thanks to its six degrees of freedom, the arm can perform a range of actions, including clamping, rotating, and lifting for versatile motion control.
Does the kit come with software or programming examples?
The kit does not include built-in software or sample code; however, users can find a wide range of open-source libraries and examples online, particularly for Arduino-based servo control.
Will the color of the metal parts always be the same?
The color of the aluminum parts may vary, depending on current stock—components may be either silver or black, with no impact on functionality.
What accessories are needed to make the robotic arm functional?
To operate the robotic arm, users will need additional accessories such as MG995 or MG996 servo motors, a metal servo horn, a USB servo controller, and an external power supply—all sold separately.
