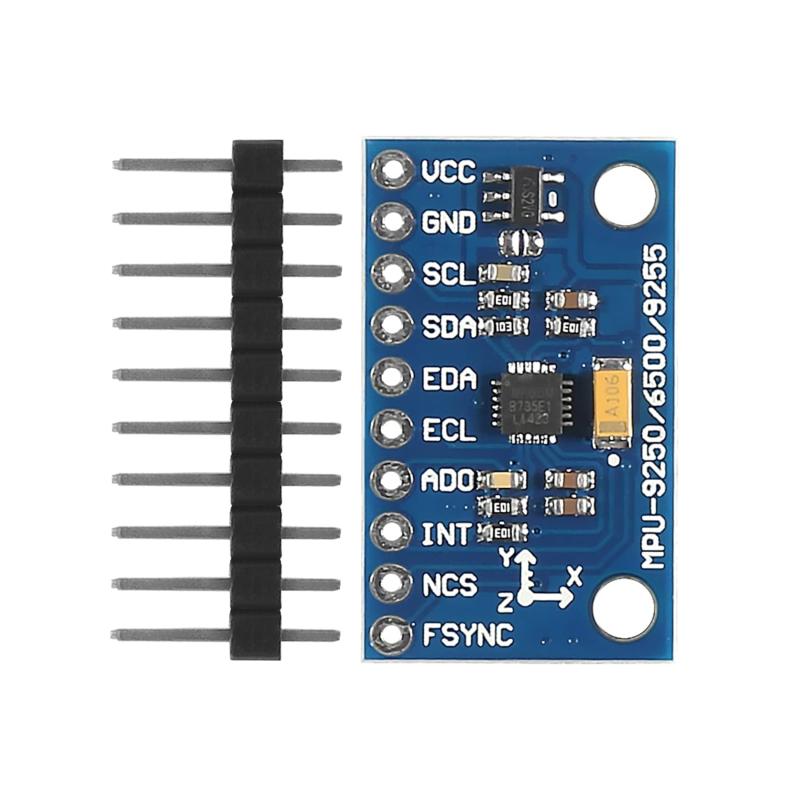

6DOF Accelerometer Gyroscope MPU6500 GY6500
৳210
The MPU-6500 (GY-6500) 6DOF Accelerometer & Gyroscope Module is a high-performance motion sensor that measures acceleration and angular velocity across three axes each. Compared to the older MPU-6050, it offers better accuracy, lower noise, and wider measurement ranges, making it more suitable for advanced robotics and navigation projects.
With support for I2C and SPI interfaces, it integrates smoothly with Arduino, ESP32, STM32, and Raspberry Pi. Common applications include drones, self-balancing robots, motion tracking devices, and IoT-based navigation systems.
For students, hobbyists, and engineers in Bangladesh, the MPU-6500 provides a cost-effective upgrade for projects that demand stable and precise motion sensing.
The MPU6500 is a 6-axis motion tracking sensor that combines a 3-axis gyroscope and a 3-axis accelerometer with a built-in Digital Motion Processor (DMP). It supports both SPI and I²C interfaces, making it easy to integrate into a wide range of motion-sensing and control applications.
Specifications:
- MPU-6500 module (three-axis gyroscope + three-axis acceleration)
- Using the chip: MPU-6500
- Power supply: 3-5v (internal low dropout voltage regulation)
- Communication method: standard IIC/SPI communication protocol
- Chip built-in 16bit AD converter, 16-bit data output
- Gyro range: ±250 500 1000 2000 °/s
- Acceleration range: ± 2 ± 4 ± 8 ± 16g
- Adopting Shenjin PCB, the machine welding process guarantees the quality
- Pin pitch 2.54mm
- Module size 15 mm *25mm
Package Includes:
- 1pc x MPU6500 Acceleration Gyroscope Sensor Module
