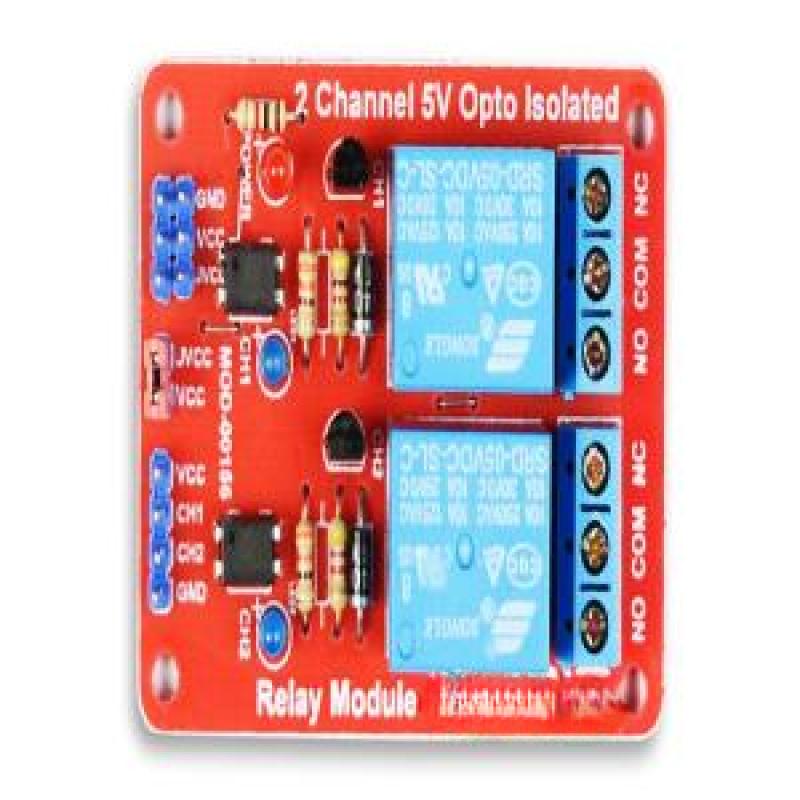

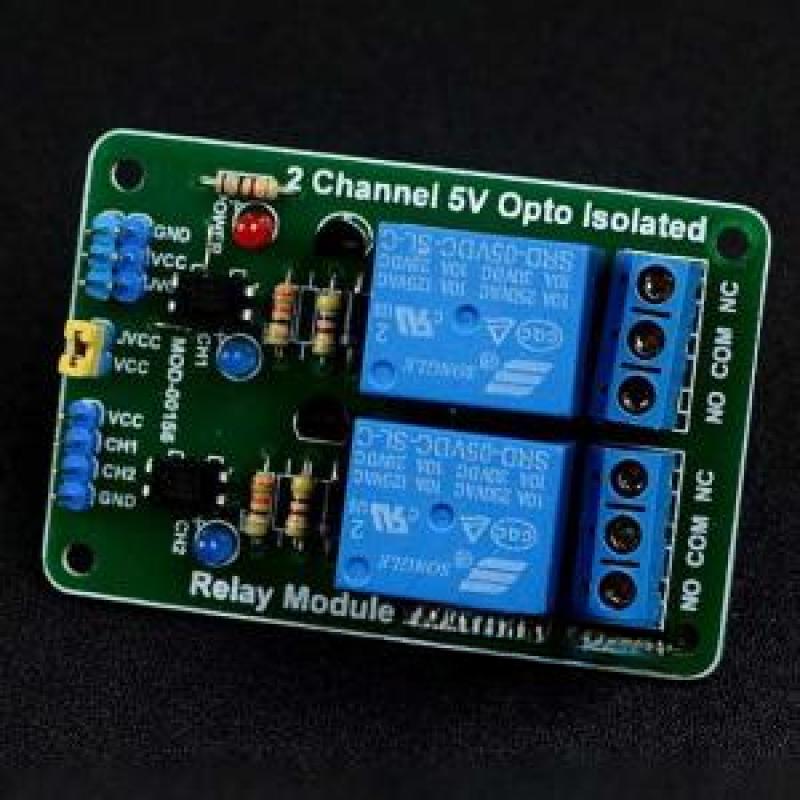

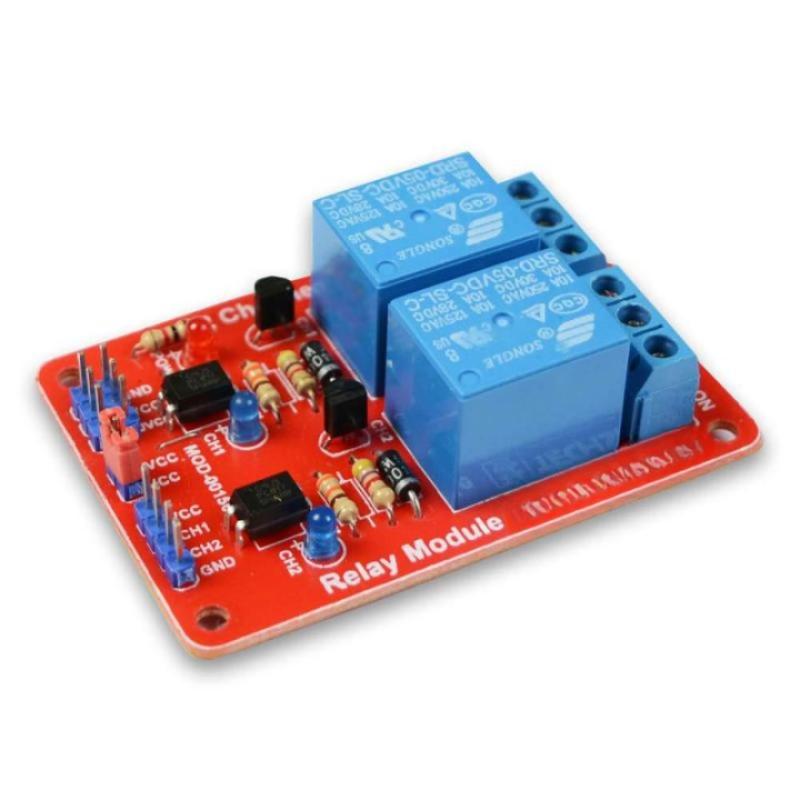

2 Channel 5V Opto Isolated Relay Module
৳205
The 2 Channel 5V Opto Isolated Relay Module is a compact switching board designed for safe and reliable control of AC and DC appliances. Featuring two independent relays with optocoupler isolation, it provides better protection between low-voltage microcontrollers (like Arduino, ESP32, Raspberry Pi) and high-voltage loads. Ideal for DIY electronics, IoT projects, robotics, and smart home systems in Bangladesh, this module can control devices such as lights, fans, pumps, motors, and solenoids. Built with LED indicators, screw terminals, and durable PCB construction, it ensures stable performance and long service life for automation projects.
Categories:
Electronics Products
/
Sensors
/
IoT & Home Automation
Brand:
Made in Bangladesh
SKU: Available
This relay board features two opto-isolated channels, allowing safe and reliable control of high-power devices. Operating at 5V, it uses transistors to drive the relays and optocouplers for output isolation, ensuring protection for your microcontroller. Each channel can switch loads up to DC 30V or AC 250V, making it suitable for controlling appliances and other equipment. The module includes 3-pin terminal outputs for each relay (NO, COM, NC) and can be directly interfaced with Arduino or other microcontrollers.
- 2 Independently Controlled Relays
- Operating Voltage: 5V
- Power Indication: Red LED
- Relay Output Status: Blue LED CH1 & CH2
- Board Dimension: 43.66 x 65 mm (1.71 x 2.55 Inch)
- Mounting Holes: 36.73 x 57.78 mm (1.14 x 2.25 Inch)
- Each relay output capacity: 220VAC / 10A
- Three Terminal Output AC DC Control (NO COM NC)
- Single Pole Double Throw Relay Output (SPDT)
- Relay current consumption at 5V is 72mA each when switched on
- Back EMF protection
- VCC GND JCC Header for other board power supply
