Vanover Vannystyle 5″ Frame Kit

৳14400

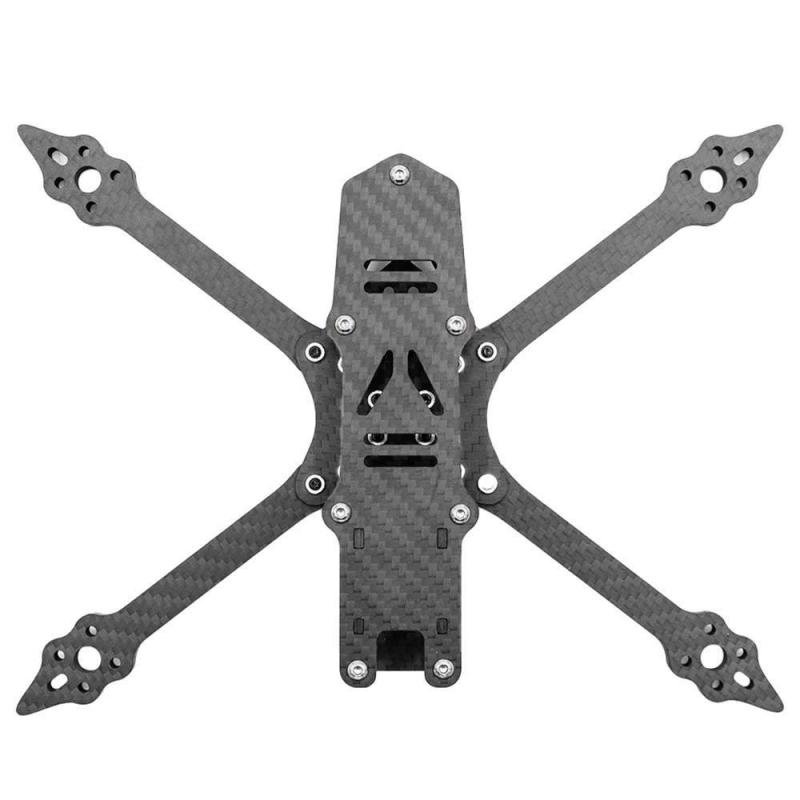

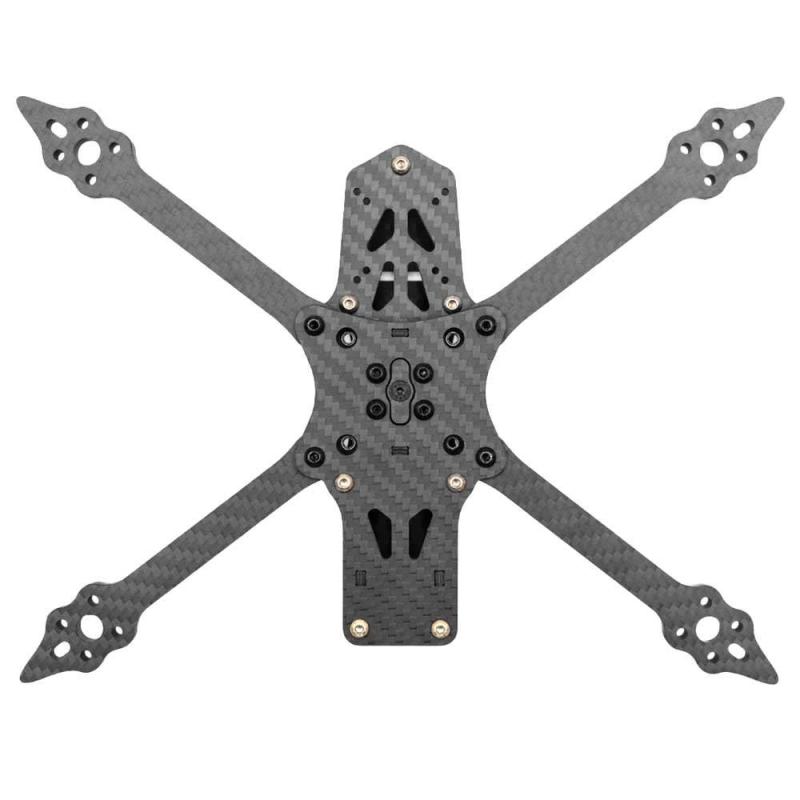

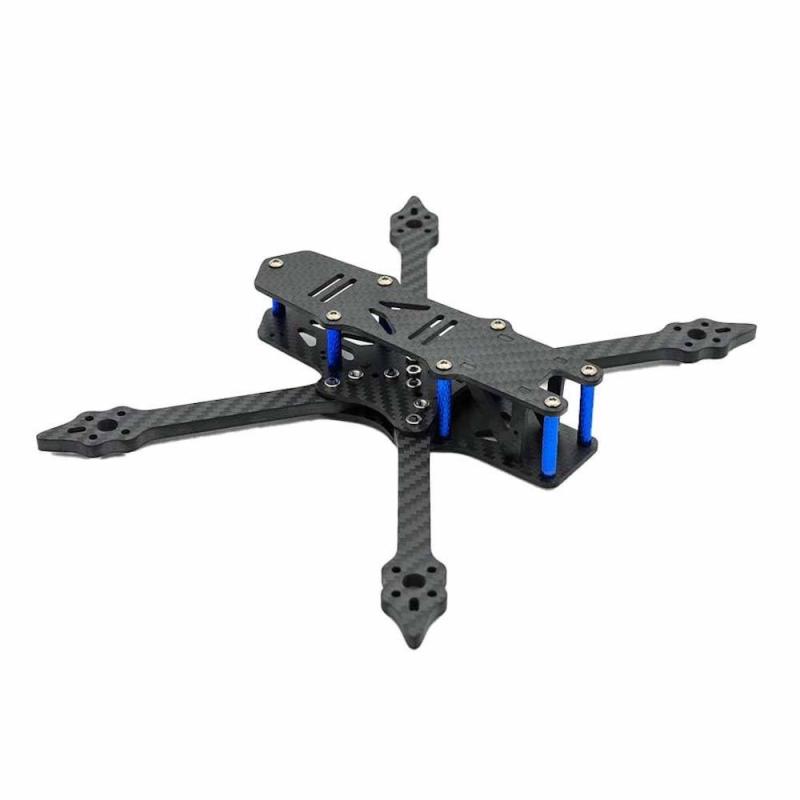

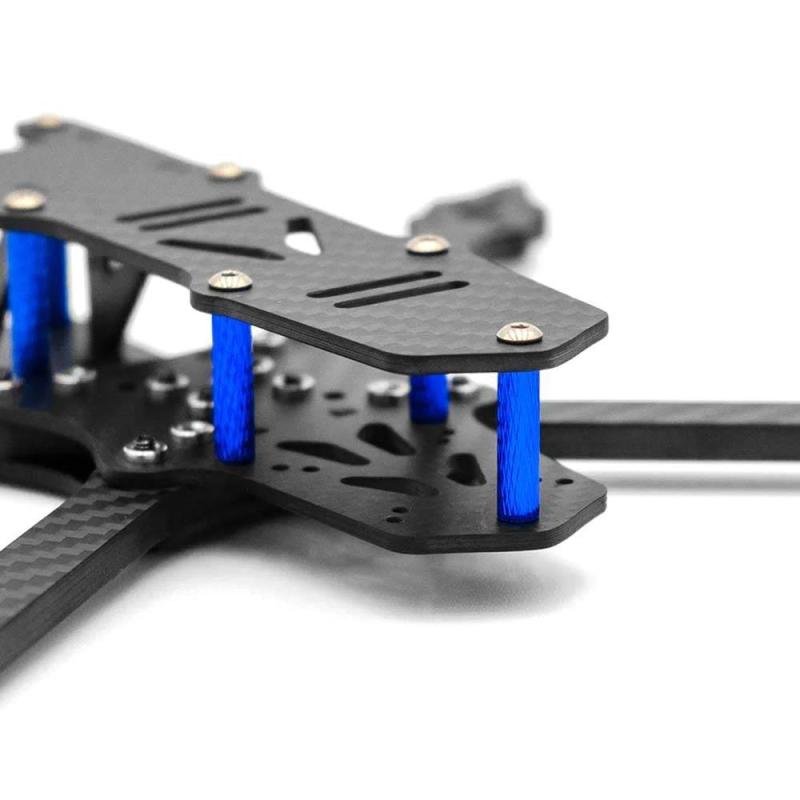

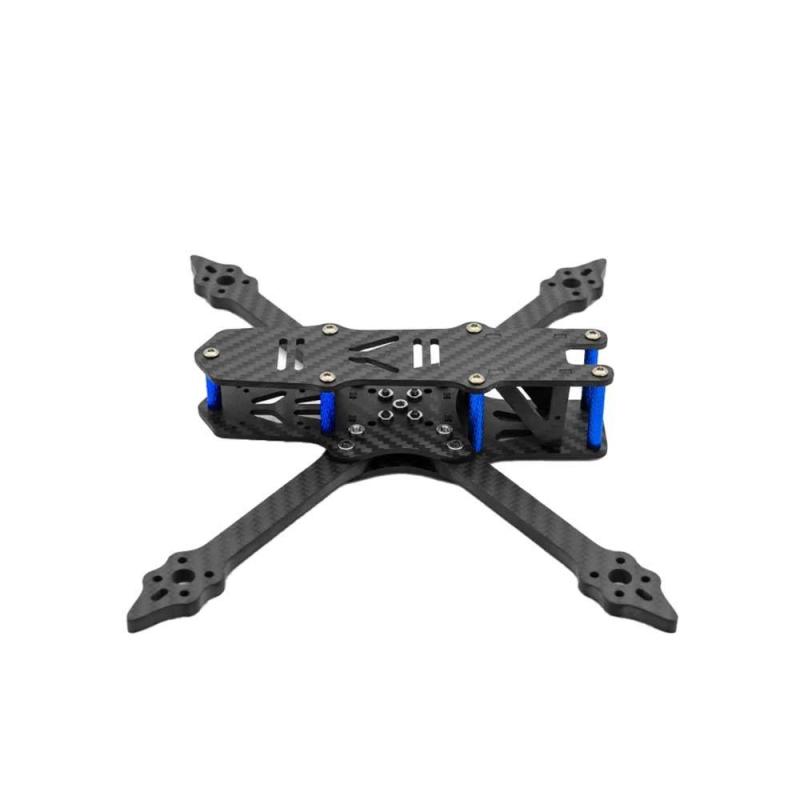

The Vanover Vannystyle 5" Frame Kit is a high-performance freestyle drone frame designed by professional pilot Alex Vanover. With a 235mm wheelbase and a squished X configuration, it offers an optimal balance between agility and stability. The frame features 5.5mm thick arms and 2.5mm thick plates, ensuring durability and resistance to crashes. Its lightweight design, weighing only 125g with hardware, contributes to improved flight dynamics. The frame is equipped with pre-installed M3 press nuts, facilitating easier assembly and maintenance. Additionally, the puzzle piece arm retention system allows for quick arm swaps, enhancing repairability in the field. Vertical carbon fiber stiffeners between the bottom and mid plates increase rigidity, resulting in a more responsive flight experience.
Categories: Drone / Frame Brand: Made in China SKU: Available
Share :
Feature Details
Frame Type Freestyle (5")
Material Carbon Fiber
Weight 125g (with hardware)
Wheelbase 235mm
Arm Thickness 5.5mm
Main Plate Thickness 2.5mm
Top Plate Thickness 2.5mm
Stack Size 30x30mm
Maximum Stack Height 20mm
Motor Mounting 16x16mm
Camera Mounting 20mm or smaller
VTX Mounting 20x20mm, 25.5x25.5mm
Hardware Pre-installed M3 press nuts
Frame Style Squished X
Additional Features Puzzle piece arm retention, vertical carbon fiber stiffeners
