UNIT UT603 LCR Meter
৳5200
The UNIT UT603 LCR Meter is a professional-grade digital device designed to measure inductance, capacitance, and resistance with high accuracy. Perfect for laboratories, repair centers, and electronics enthusiasts in Bangladesh, the UT603 combines user-friendly controls with a clear digital display. Whether you’re troubleshooting circuits or testing components, this meter ensures dependable results. Durable, portable, and cost-effective—it’s a must-have tool for serious electronics work.

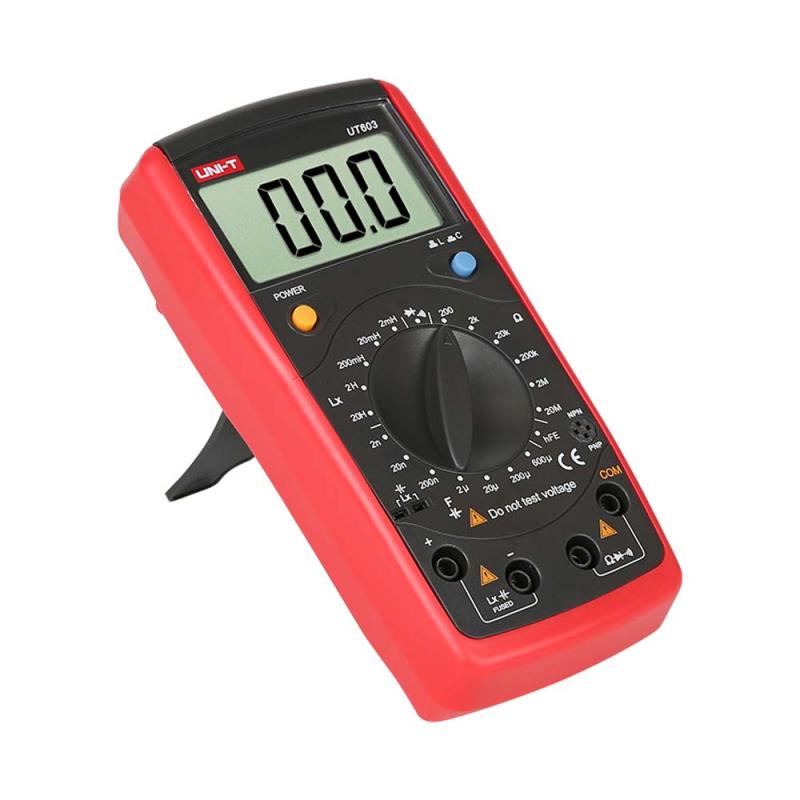

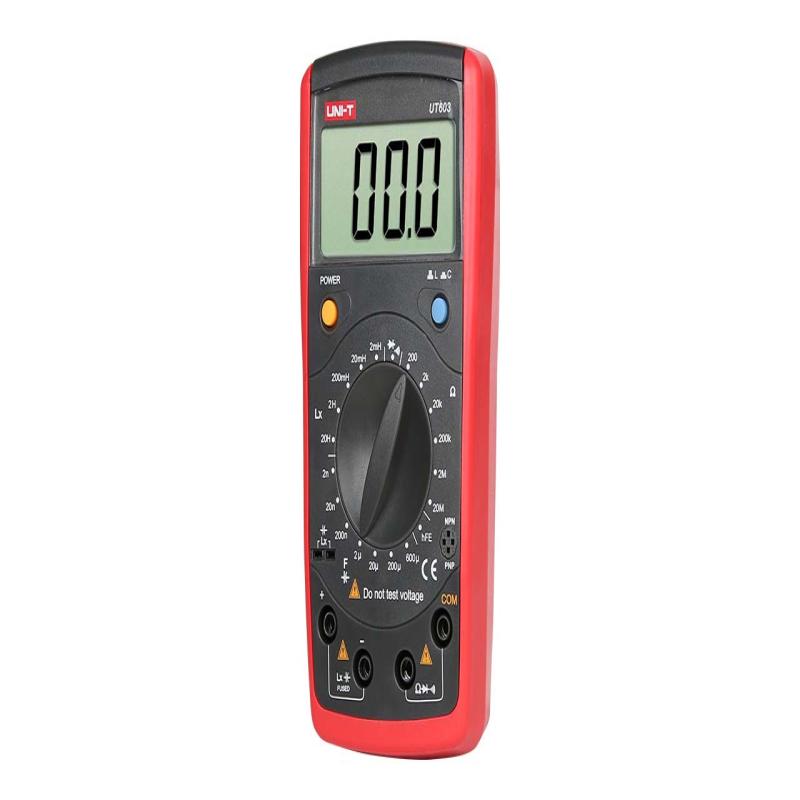

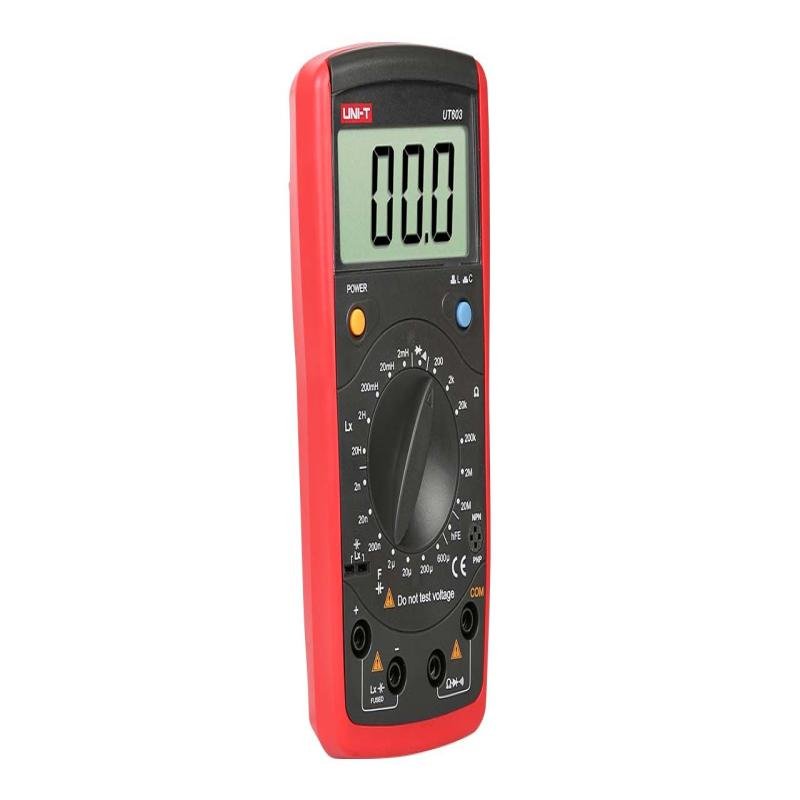

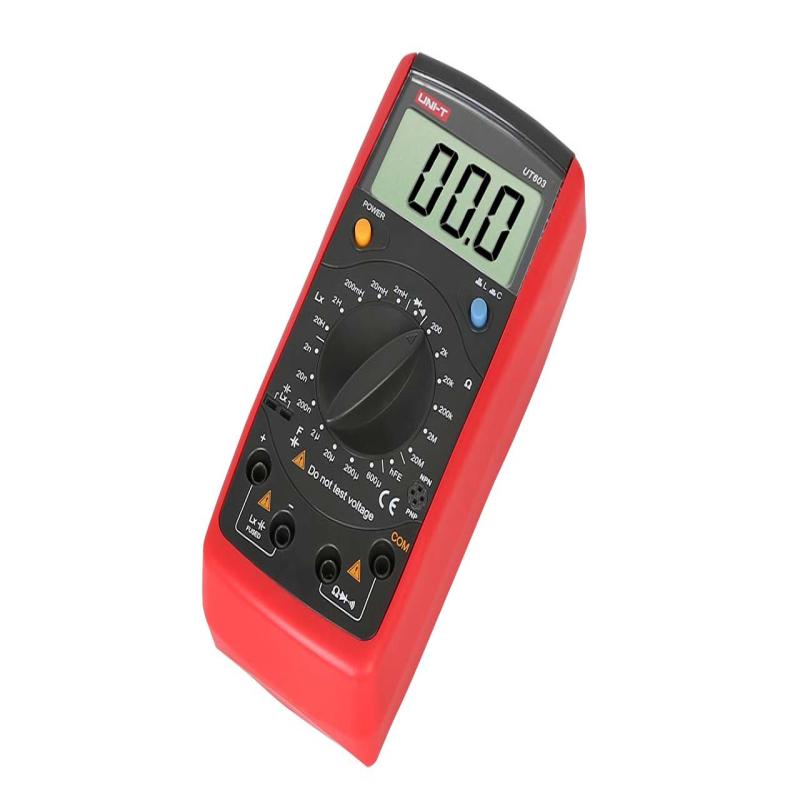

UNIT UT603 LCR Meter
The UT603 Digital LCR Meter is a high-precision testing device designed for measuring resistors, capacitors, inductors, and transistors. Perfect for electronics labs, production lines, maintenance work, and educational use, it delivers accurate component testing with a user-friendly interface and reliable performance.
Key Feature
- Component Testing: Measures resistance, capacitance, inductance, and transistor parameters.
- Diode & Continuity Check: Includes diode testing and buzzer-based continuity detection.
- Transistor Testing: Comes with a built-in transistor testing adapter.
- Manual Range Selection: Allows manual control over measurement range.
- Refresh Rate: 2 to 3 times per second for quick updates.
- Battery Status: Low battery indication to avoid measurement interruptions.
Technical Specifications:
Parameter
Specification Display Count
1999
Measurement Functions
Resistance, Capacitance, Inductance, Transistor
Transistor Testing
Yes (with Built-in Adapter)
Diode Testing
Yes
Continuity Buzzer
Yes
Manual Range Selection
Yes
Refresh Rate
2–3 readings per second
Low Battery Indicator
Yes
Power Supply
9V Battery (6F22)
LCD Display Size
61mm × 32mm
Product Color
Red & Grey
Net Weight
312g
Product Dimensions
172mm × 83mm × 38mm
Standard Accessories
Battery, Test Clip, Holster

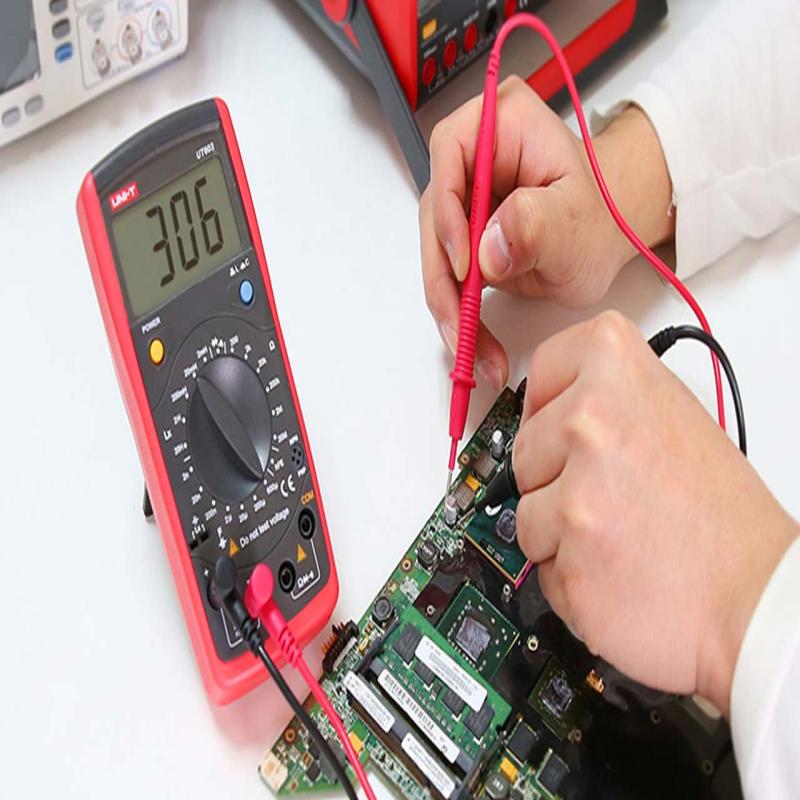

Applications
- Circuit testing in labs
- QC in electronics production
- Component fault diagnosis
- Educational use
- Portable field testing
Packaging Details
- 1x UNIT UT603 LCR Meter
- 1x Battery 9V
- 1x Test Clip
Why Choose This UNIT UT603 LCR Meter?
It features accurate L/C/R measurement, wide test range, auto/manual range selection, data hold, overload protection, and a clear LCD display—perfect for both lab and field use.
