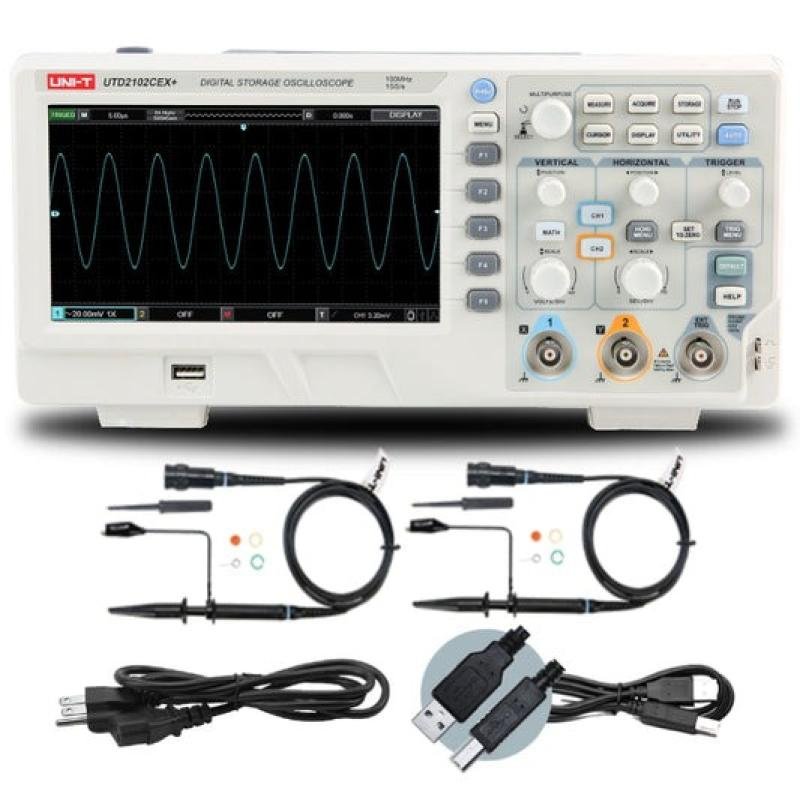

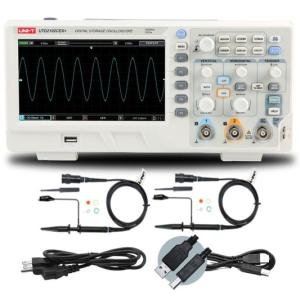

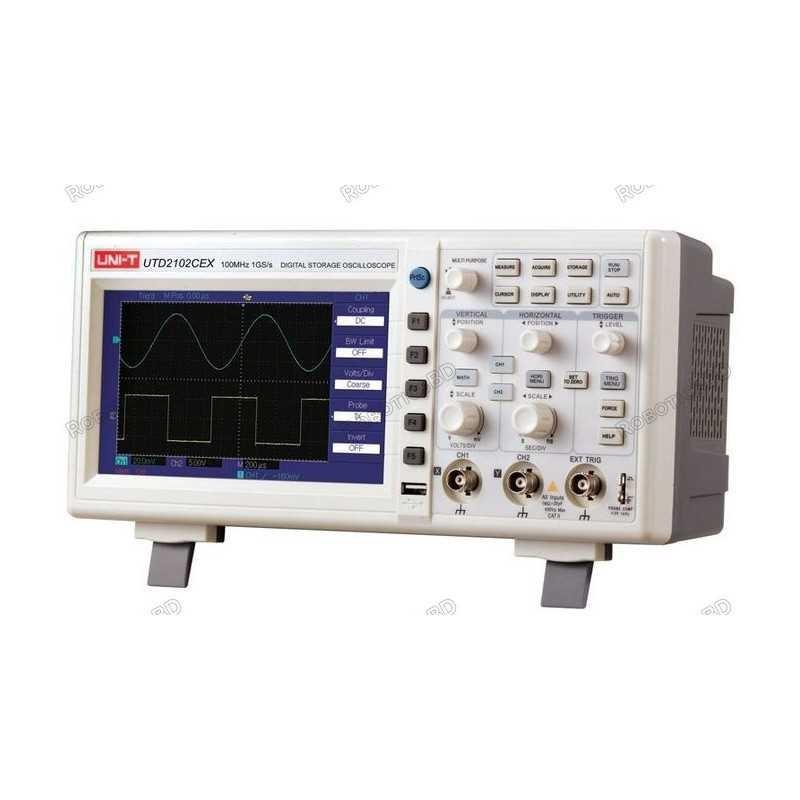

UNI-T UTD2102CEX+ 100Mhz 2 Channels 1Gs/S Digital Storage Oscilloscope
৳37,960
The UTD2102CEX+ is a bench-oscilloscope aimed at users who need decent performance without breaking the bank. It offers dual analog channels, a 100 MHz bandwidth, and a 1 GSa/s sampling rate. That means it can reliably capture many kinds of signals in hobby, educational, or industrial electronics work.
It has a fairly large 7-inch color TFT display, which makes it easier to view waveforms with clarity. There are a wide range of triggers, automatic measurement functions (like RMS, frequency, rise/fall times, etc.), and modes like FFT and XY for specialized uses.
It’s not super deep memory compared to high-end scopes, but it’s enough (64 kpts) for many tasks. Input sensitivity down to 1 mV/div makes it useful even for relatively small signals. Overall, it’s a good all-rounder for someone needing moderate precision and good usability.
| Feature | Specification |
|---|---|
| Model | UNI-T UTD2102CEX+ |
| Bandwidth | 100 MHz |
| Channels | 2 (analog) |
| Real-Time Sample Rate | 1 GSa/s (per analog channel) |
| Memory Depth (Record Length) | 64 kpts |
| Waveform Capture Rate | ~5,000 waveforms/s |
| Vertical Sensitivity | ~1 mV/div up to ~20 V/div |
| Time Base (Horizontal Scale) | From ~2 ns/div up to many seconds/div (e.g. up to 50 s/div) |
| Rise Time | ≤ 3.5 ns |
| Input Impedance | ~1 MΩ ±2%, with input capacitance around 18 ± 3 pF |
| Display | 7-inch TFT LCD (WVGA or similar) color |
| Trigger Types | Edge, Pulse Width, Video, Slope, Alternate, etc. |
| Math / Analysis Features | FFT (spectrum), X-Y mode; automatic measurement of many parameters (RMS, frequency, rise/fall, peak, etc.) |
| Interfaces | USB (host / device) for data / firmware, optional LAN on some variants |
| Power Supply | AC mains, universal (~100-240 V) |
| Size / Weight | Approx. 306 × 138 × 124 mm; ~2.5 kg |
| Warranty | Typically 3 years (varies by region or vendor) |
