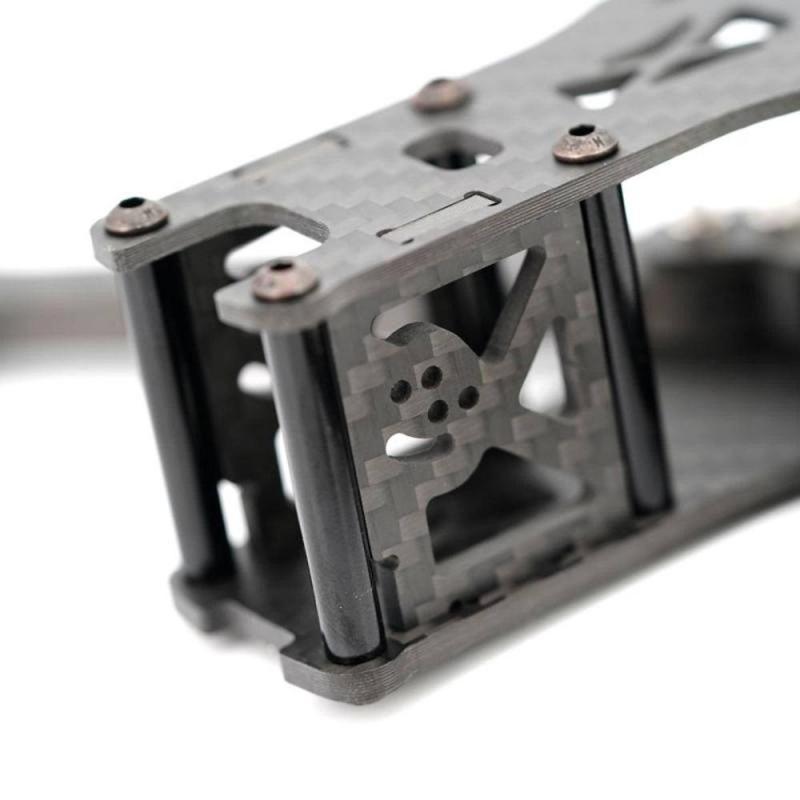

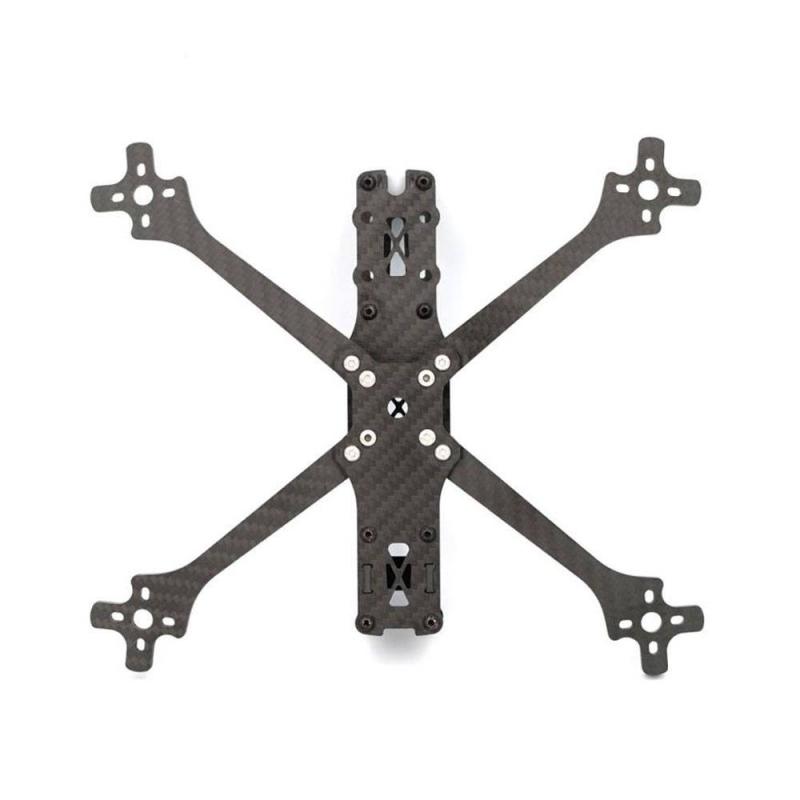

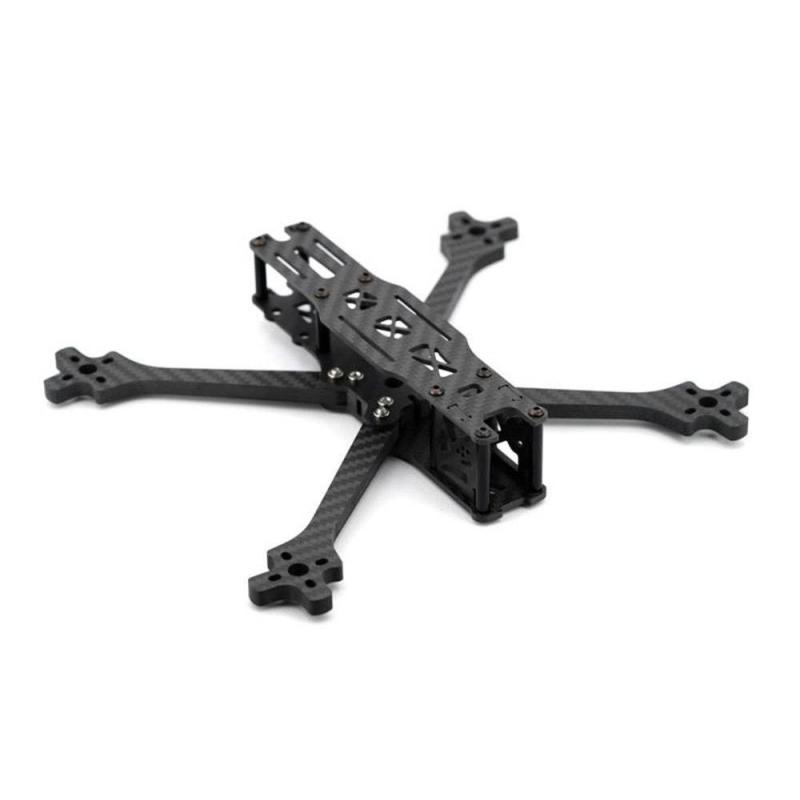

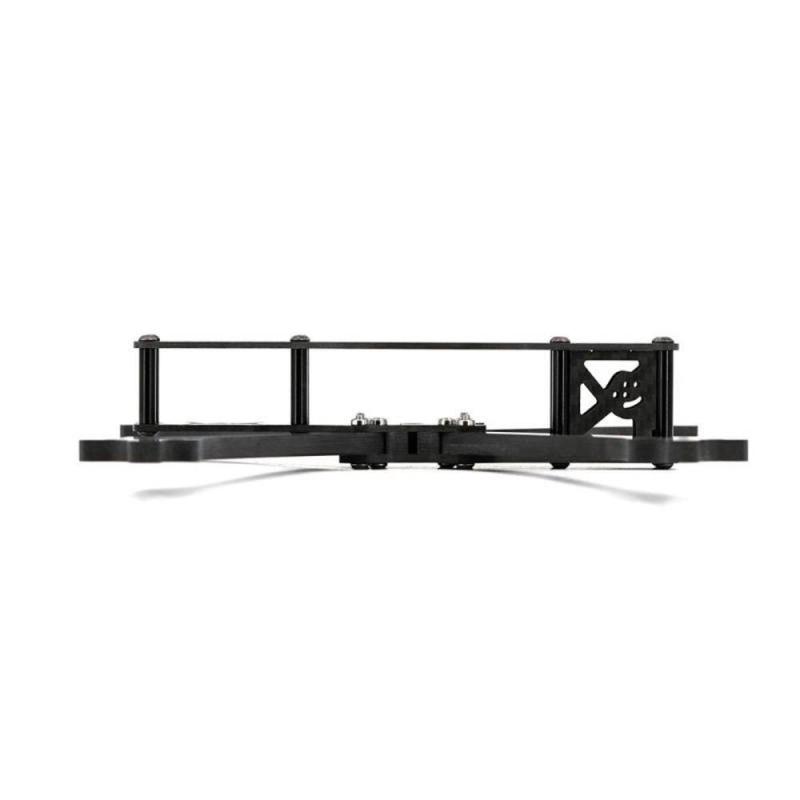

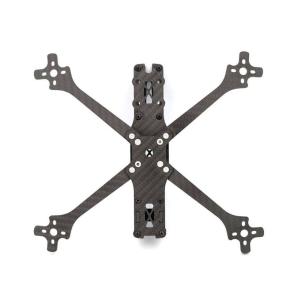

TBS Source One V5 5″ Frame Kit
৳6,900
The TBS Source One V5 5" Frame Kit is a collaborative open-source project initiated by Team BlackSheep, designed to provide the FPV community with a durable and lightweight freestyle frame. Its wide-stance X configuration and robust carbon fiber construction make it ideal for freestyle and free-range acrobatic flying. The frame is optimized to withstand harsh crashes and abuse, offering protection for all classic FPV components. With a wheelbase of 226mm and compatibility with various camera mounts, it's a versatile choice for both casual and competitive FPV pilots.
| Feature | Details |
|---|---|
| Frame Type | Freestyle (5") |
| Material | Carbon Fiber |
| Weight | Approximately 123.5g |
| Wheelbase | 226mm |
| Arm Thickness | 6mm |
| Top Plate Thickness | 2mm |
| Middle Plate Thickness | 2mm |
| Bottom Plate Thickness | 2.5mm |
| Stack Size | 30.5mm x 30.5mm & 20mm x 20mm |
| Standoff Heights | 30mm & 22mm |
| Camera Plate Thickness | 2mm |
| Arm Spacer Thickness | 6mm |
| Frame Design | Wide-stance X configuration |
| Additional Features | Open-source design, optimized for durability and lightweight performance |
