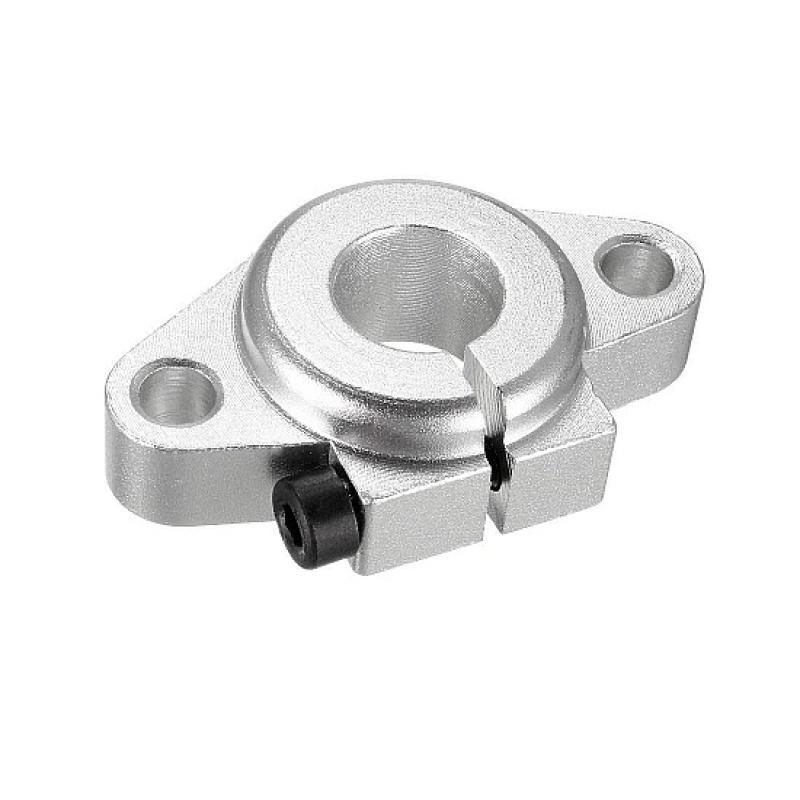

SHF12 Horizontal Type Linear Guide Support for 12mm Rod
৳406
The SHF12 Horizontal Type Linear Guide Support is designed to provide stable support for 12mm diameter linear rods in horizontal applications. Ideal for use in 3D printers, CNC machines, and other linear motion systems, this support ensures smooth and precise movement along the shaft.
| Feature | Details |
|---|---|
| Model | SHF12 |
| Shaft Diameter | 12 mm |
| Length | 47 mm |
| Width | 28 mm |
| Height | 12 mm |
| Fixing Hole Diameter | 5.5 mm (suitable for M5 screws) |
| Material | Steel |
