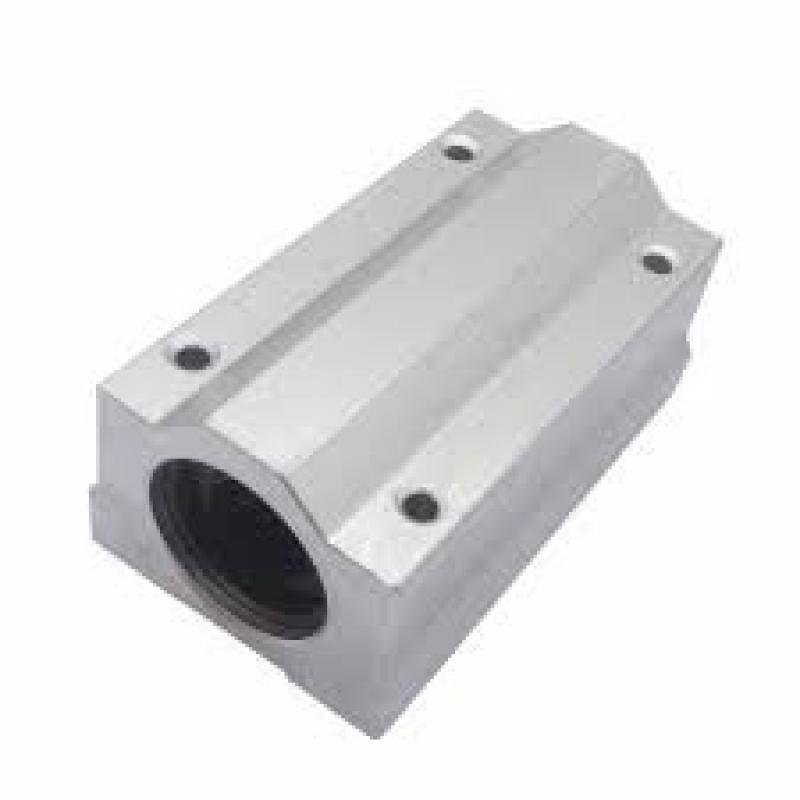

SC10LUU Extra Long Linear Motion Ball Bearing Sliding Block SC10UU for 10mm Rod

৳600
The SC10LUU Linear Bearing Pillow Block Long is a rugged, precision part designed mainly for use in 3D printers, CNC machines, robotics, and other projects where controlled, straight-line motion is required. It consists of an aluminum housing fitted with two LM10UU linear bearings, allowing a 10 mm shaft to slide smoothly. The extra-length (“long”) design gives more support and stability compared to shorter blocks. It’s especially useful when you need reduced play, better rigidity, and smoother motion over longer spans.
Categories: Mechanical Products / Bearing Brand: Made in China SKU: Available
Share :
Specification Details
Model SC10LUU
Linear Bearings 2 × LM10UU
Housing Material Aluminium
Dynamic Load Rating 588 N
Static Load Rating 1100 N
Block Dimensions 40 mm × 68 mm
Compatible Shaft Size 10 mm
Weight 147 g
Mounting Holes 4 × M5 (drilled, tapped, countersunk)
Additional Feature Grease nipple for re-lubrication
